Reassembly [10/2014 - 10/2015]: Procedure

  1. INSTALL FRONT SIDE MARKER LIGHT BULB
    1. Install the front side marker light bulb to the front side marker light socket and wire.
    2. Turn the front side marker light socket and wire with the front side marker light bulb as shown in the illustration to install them as a unit.
      GTY382141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 HEADLIGHT BULB (for Halogen Headlight)
    1. Turn the No. 2 headlight bulb as shown in the illustration to install it.
      GTY367117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.

    2. Connect the connector.
      GTY571677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)
    1. Set the discharge headlight bulb to the headlight unit.
      NOTE:

      Do not touch the bulb glass.

    2. Lock the set spring as indicated by the arrows, in the order shown in the illustration to install the discharge headlight bulb.
      GTY595952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LIGHT CONTROL ECU (for HID Headlight)
    1. Turn the socket of the light control ECU as shown in the illustration to connect it.

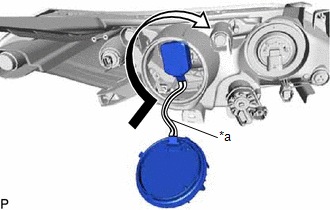

      GTY364184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Red Line
      NOTE:
      • Check that the O-ring is installed on the light control ECU.
      • Check that the O-ring is not damaged or contaminated with foreign matter. If there is any damage, replace the O-ring with a new one.
      • Do not pull the light control ECU with the socket connected.
    2. Check that the red line on the output harness is not twisted and store the harness in the headlight assembly securely so that the output harness is not pinched.
    3. Turn the light control ECU as shown in the illustration until the lock marks are aligned to install it.
      GTY538470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Lock Mark
      NOTE:
      • To prevent incomplete installation, make sure to fully push in and turn the light control ECU until the lock marks are aligned.
      • Do not apply excessive force using a tool.
  5. INSTALL NO. 1 HEADLIGHT BULB
    1. Turn the No. 1 headlight bulb as shown in the illustration to install it.

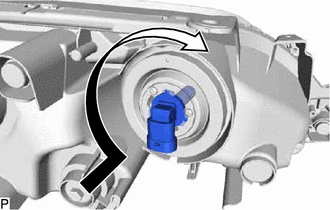

      GTY382142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
