Disassembly [10/2014 - 10/2015]: Procedure

REMOVE NO. 1 HEADLIGHT BULB

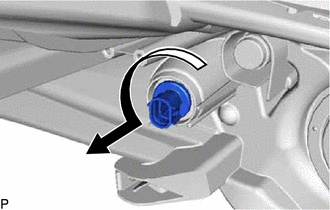

Turn the No. 1 headlight bulb as shown in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the bulb glass.

REMOVE NO. 2 HEADLIGHT BULB (for Halogen Headlight)

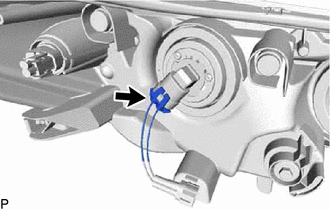

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

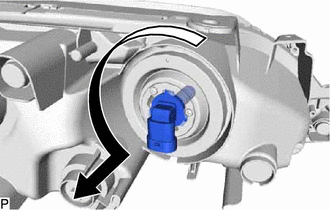

Turn the No. 2 headlight bulb as shown in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not touch the bulb glass.

REMOVE LIGHT CONTROL ECU (for HID Headlight)

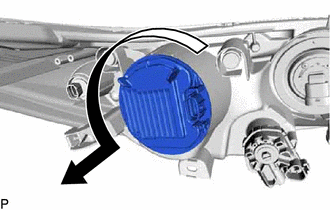

Turn the light control ECU as shown in the illustration to disconnect it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not apply excessive force using a tool.
Do not damage the O-ring or allow it to become contaminated with foreign matter. If the O-ring is damaged or contaminated, water may get into the headlight assembly, resulting in a malfunction of the light control ECU.

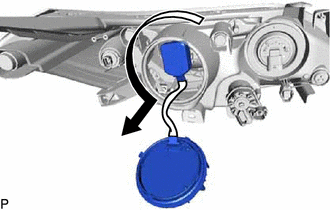

Turn the socket of the light control ECU as shown in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the light control ECU with the socket connected.

REMOVE DISCHARGE HEADLIGHT BULB (for HID Headlight)

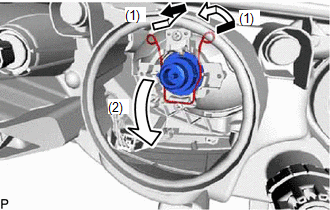

Release the set spring as shown in the illustration and remove the discharge headlight bulb.

NOTE:

Do not touch the bulb glass.

REMOVE FRONT SIDE MARKER LIGHT BULB

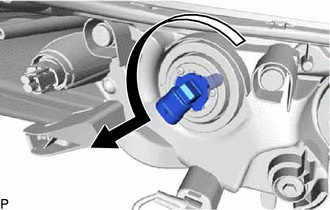

Turn the front side marker light socket and wire with the front side marker light bulb as shown in the illustration to remove them as a unit.

Remove the front side marker light bulb from the front side marker light socket and wire.
