Components [10/2015 - ]: Illustration

GTY544559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Headlight Assembly Replacement Components With Torque Specifications
GTY368913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY575185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


GTY560803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

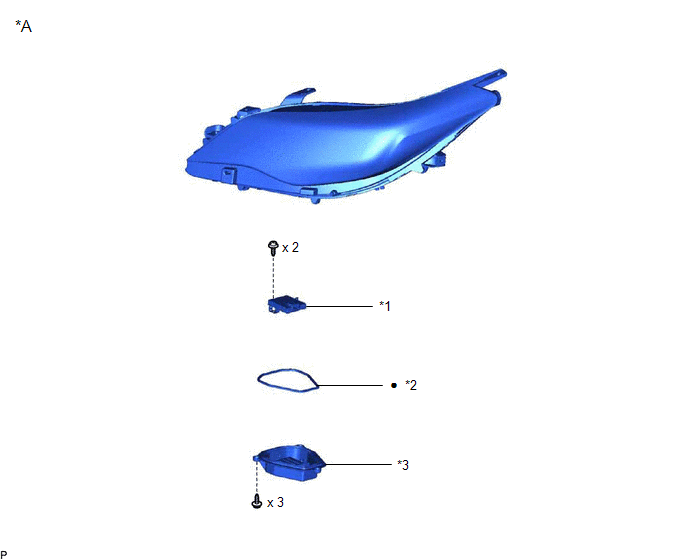

GTY564130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for LED Headlight - -
*1 LIGHT CONTROL ECU *2 HEADLIGHT GASKET
*3 HEADLIGHT COVER - -
• Non-reusable part - -
