Removal [10/2014 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8

  2. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

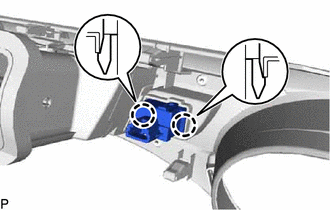

    1. Disengage the 2 claws to remove the hazard warning signal switch assembly.
      GTY363150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
