Removal [10/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [10/2015 - ] )

  2. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY

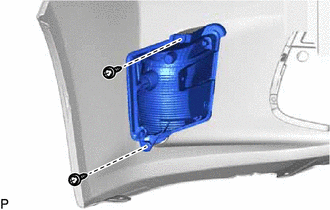

    1. Remove the 2 screws and front turn signal light assembly.
      GTY587074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
