Components [10/2015 - ]: Illustration

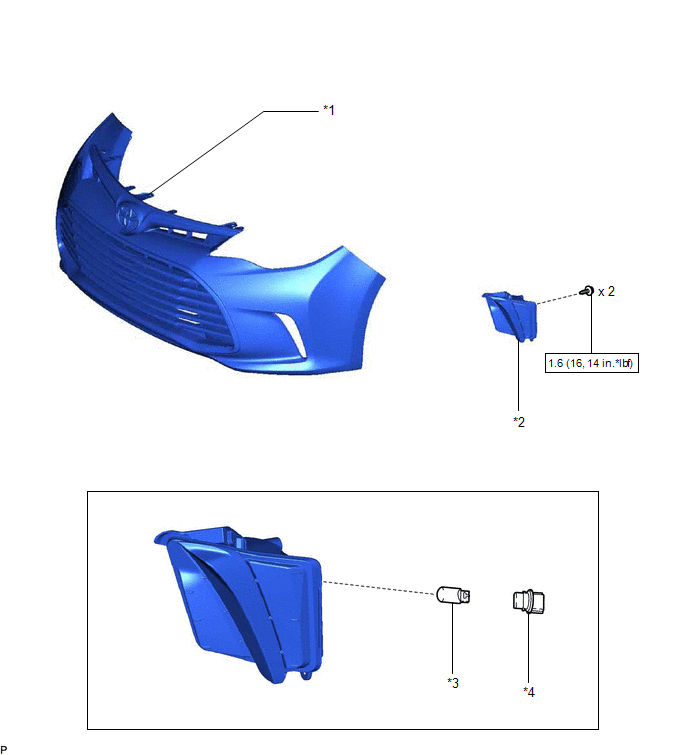

Fig 1: Front Turn Signal Light Assembly Replacement Components With Torque Specifications
GTY556576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER ASSEMBLY *2 FRONT TURN SIGNAL LIGHT ASSEMBLY
*3 FRONT TURN SIGNAL LIGHT BULB *4 FRONT TURN SIGNAL LIGHT SOCKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
