Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [10/2014 - 10/2015] )

  2. REMOVE FOG LIGHT ASSEMBLY

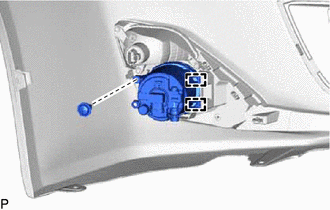

    1. Remove the screw.
      GTY367164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the fog light assembly.
