Removal [10/2014 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11

  2. REMOVE FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 7 and PROCEDURE - Step 7

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 28

  4. REMOVE FRONT PILLAR GARNISH RH

    Refer to PROCEDURE - Step 29

  5. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

    Refer to PROCEDURE - Step 30

  6. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

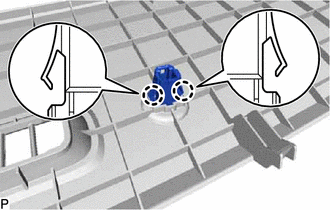

    1. Disengage the 2 claws to remove the automatic light control sensor.
      GTY604910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
