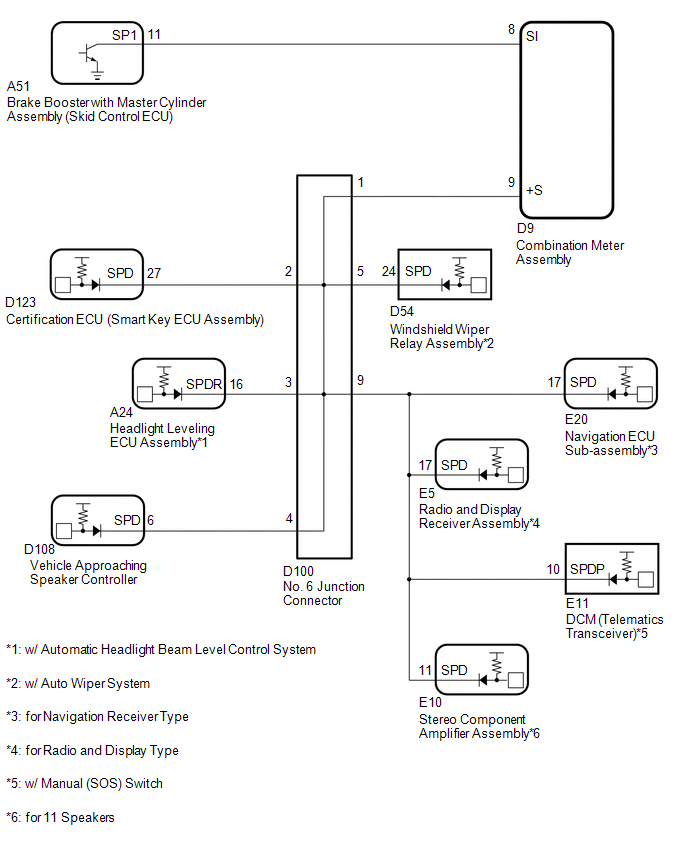

Speed Signal Circuit [10/2015 - ]: Wiring Diagram

GTY568384

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
