Terminals Of Ecu [10/2014 - 10/2015]

NOTE:
  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
  • Turn the power switch off before measuring the resistances between CAN main bus lines and between CAN branch lines.
  • Turn the power switch off before inspecting CAN bus lines for a ground short.
  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • This section describes the standard values for all CAN related components.

HINT:

  1. NO. 1 CAN JUNCTION CONNECTOR
    1. Check the No. 1 CAN junction connector.

      HINT:

      Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines. When the connectors have been disconnected from the CAN junction connector, reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.

      1. Connection diagram
        GTY383408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component with harness connected
        (No. 1 CAN Junction Connector)        		 *b to Skid Control ECU (Brake Booster with Master Cylinder Assembly)
        (for V Bus)
        *c to No. 2 CAN Junction Connector
        (for V Bus)        		 *d to Steering Sensor
        (for V Bus)
        *e to DLC3
        (for V Bus)        		 *f to Main Body ECU (Multiplex Network Body ECU)
        (for V Bus)
        *g to Combination Meter Assembly
        (for V Bus)        		 *h to Power Management Control ECU
        (for V Bus)
      2. Check the connection diagram of the components which are connected to the No. 1 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        D72-1 (CANH) B No. 2 CAN junction connector
        (for V bus)
        D72-2 (CANL) W
        D73-1 (CANH) R Combination meter assembly
        (for V bus)
        D73-2 (CANL) W
        D74-1 (CANH) P Main body ECU (multiplex network body ECU)
        (for V bus)
        D74-2 (CANL) W
        D75-1 (CANH) L DLC3
        (for V bus)
        D75-2 (CANL) W
        D76-1 (CANH) V Steering sensor
        (for V bus)
        D76-2 (CANL) W
        D114-1 (CANH) G Power management control ECU
        (for V bus)
        D114-2 (CANL) W
        D115-1 (CANH) Y Skid control ECU (brake booster with master cylinder assembly)
        (for V bus)
        D115-2 (CANL) W
  2. NO. 2 CAN JUNCTION CONNECTOR
    1. Check the No. 2 CAN junction connector.

      HINT:

      Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines. When the connectors have been disconnected from the CAN junction connector, reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.

      1. Connection diagram
        GTY383408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component with harness connected
        (No. 2 CAN Junction Connector)        		 *b No. 1 CAN Junction Connector
        (for V Bus)
        *c to Air Conditioning Amplifier Assembly
        (for V Bus)        		 *d to ECM
        (for V Bus)
        *e to Certification ECU (Smart Key ECU Assembly)
        (for V Bus)        		 *f to Airbag ECU Assembly
        (for V Bus)
        *g
        • to Navigation ECU Sub-assembly*1
        • to Radio and Display Receiver Assembly*2
        (for V Bus)        		 *h to Power Steering ECU Assembly
        (for V Bus)
        • *1: for Navigation Receiver Type
        • *2: for Radio and Display Type
      2. Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        D78-1 (CANH) B No. 1 CAN junction connector
        (for V bus)
        D78-2 (CANL) W
        D79-1 (CANH) BR Air conditioning amplifier assembly
        (for V bus)
        D79-2 (CANL) W
        D81-1 (CANH) P ECM
        (for V bus)
        D81-2 (CANL) W
        D83-1 (CANH) L Certification ECU (smart key ECU assembly)
        (for V bus)
        D83-2 (CANL) W
        D84-1 (CANH) R
        • Navigation ECU sub-assembly*1
        • Radio and display receiver assembly*2
        (for V bus)
        D84-2 (CANL) W
        D112-1 (CANH) G Power steering ECU assembly
        (for V bus)
        D112-2 (CANL) W
        D113-1 (CANH) LG Airbag ECU assembly
        (for V bus)
        D113-2 (CANL) W
        • *1: for Navigation Receiver Type
        • *2: for Radio and Display Type
  3. NO. 3 CAN JUNCTION CONNECTOR (w/ Seat Position Memory System)
    1. Check the No. 3 CAN junction connector.

      HINT:

      Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines. When the connectors have been disconnected from the CAN junction connector, reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.

      1. Connection diagram
        GTY380096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Component with harness connected
        (No. 3 CAN Junction Connector)        		 *b to Main Body ECU (Multiplex Network Body ECU)
        (for Sub Bus 1)
        *c to Outer Mirror Control ECU Assembly (for Driver Side)
        (for Sub Bus 1)        		 *d to Outer Mirror Control ECU Assembly (for Front Passenger Side)
        (for Sub Bus 1)
        *e to Front Power Seat Switch LH
        (for Sub Bus 1)        		 *f to No. 1 CAN Junction Terminal
        (for Sub Bus 1)
      2. Check the connection diagram of the components which are connected to the No. 3 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        D86-1 (CANH) BE Main body ECU (multiplex network body ECU)
        (for Sub bus 1)
        D86-2 (CANL) V
        D87-1 (CANH) GR Outer mirror control ECU assembly (for Driver Side)
        (for Sub bus 1)
        D87-2 (CANL) V
        D88-1 (CANH) LG Outer mirror control ECU assembly (for Front Passenger Side)
        (for Sub bus 1)
        D88-2 (CANL) V
        D89-1 (CANH) P Front power seat switch LH
        (for Sub bus 1)
        D89-2 (CANL) V
        D90-1 (CANH) BR No. 1 CAN junction terminal
        (for Sub bus 1)
        D90-2 (CANL) V
  4. NO. 4 CAN JUNCTION CONNECTOR (w/ Dynamic Radar Cruise Control System) (w/ Blind Spot Monitor System) (w/ Parking Assist Monitor System)
    1. Check the No. 4 CAN junction connector.

      HINT:

      Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines. When the connectors have been disconnected from the CAN junction connector, reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.

      1. Connection diagram

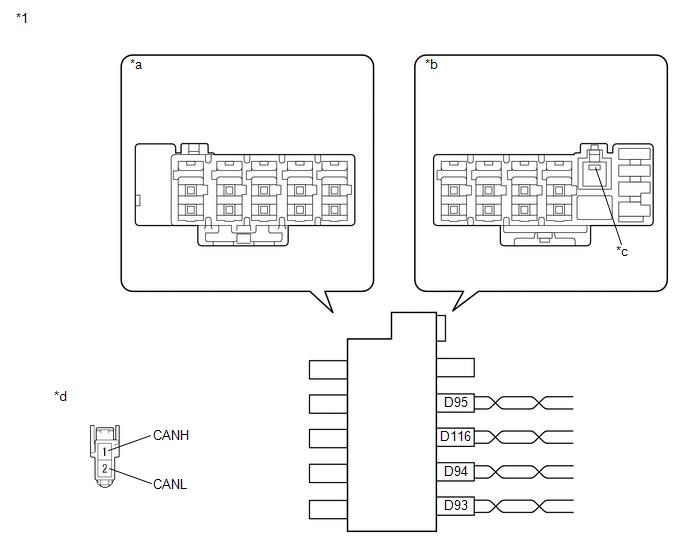

        GTY591321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 No. 4 CAN Junction Connector - -
        *a Junction Connector A Side *b Junction Connector B Side
        *c Ground Terminal *d Front view of wire harness connector
        (to No. 4 CAN Junction Connector)
    2. Check the connection diagram of the components which are connected to the No. 4 CAN junction connector.
      JUNCTION CONNECTOR B SIDE

      Terminal No. (Symbol) Wiring Color Connected to
      D93-1 (CANH) B Seat belt control ECU*
      (for Sub bus 11)
      D93-2 (CANL) Y
      D94-1 (CANH) BE No. 5 CAN junction connector
      (for Sub bus 11)
      D94-2 (CANL) Y
      D95-1 (CANH) SB Driving support ECU assembly*
      (for Sub bus 11)
      D95-2 (CANL) Y
      D116-1 (CANH) LG Power management control ECU
      (for Sub bus 11)
      D116-2 (CANL) Y

      *: w/ Dynamic Radar Cruise Control System

  5. NO. 5 CAN JUNCTION CONNECTOR (w/ Dynamic Radar Cruise Control System) (w/ Blind Spot Monitor System) (w/ Parking Assist Monitor System)
    1. Check the No. 5 CAN junction connector.
      1. Connection diagram
        GTY577255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Front view of wire harness connector
        (to No. 5 CAN Junction Connector)        		 *b to Rear Television Camera Assembly*1
        (for Sub Bus 11)
        *c to No. 2 CAN Junction Terminal
        (for Sub Bus 11)        		 *d to Blind Spot Monitor Sensor LH*2
        (for Sub Bus 11)
        *e to No. 4 CAN Junction Connector
        (for Sub Bus 11)        		 - -
        • *1: w/ Parking Assist Monitor System
        • *2: w/ Blind Spot Monitor System
      2. Check the connection diagram of the components which are connected to the No. 5 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        O16-8 (CANH) SB Rear television camera assembly*1
        (for Sub bus 11)
        O16-19 (CANL) GR
        O16-9 (CANH) L No. 2 CAN junction terminal
        (for Sub bus 11)
        O16-20 (CANL) P
        O16-10 (CANH) R Blind spot monitor sensor LH*2
        (for Sub bus 11)
        O16-21 (CANL) W
        O16-11 (CANH) BE No. 4 CAN junction connector
        (for Sub bus 11)
        O16-22 (CANL) Y
        • *1: w/ Parking Assist Monitor System
        • *2: w/ Blind Spot Monitor System
  6. NO. 6 CAN JUNCTION CONNECTOR
    1. Check the No. 6 CAN junction connector.
      1. Connection diagram
        GTY556461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Front view of wire harness connector
        (to No. 6 CAN Junction Connector)        		 *b to Skid Control ECU (Brake Booster with Master Cylinder Assembly)
        (for Sub Bus 15)
        *c to ECM
        (for Sub Bus 15)        		 *d to Power Management Control ECU
        (for Sub Bus 15)
      2. Check the connection diagram of the components which are connected to the No. 6 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        A59-1 (CANH) B Skid control ECU (brake booster with master cylinder assembly)
        (for Sub bus 15)
        A59-7 (CANL) W
        A59-2 (CANH) B ECM
        (for Sub bus 15)
        A59-8 (CANL) W
        A59-3 (CANH) B Power management control ECU
        (for Sub bus 15)
        A59-9 (CANL) W
  7. NO. 1 CAN JUNCTION TERMINAL (w/ Seat Position Memory System)
    1. Check the No. 1 CAN junction terminal.
      1. Connection diagram
        GTY579893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Rear view of wire harness connector
        (to No. 1 CAN Junction Terminal)
        *b to No. 3 CAN Junction Connector
        (for Sub Bus 1)
      2. Check the connection diagram of the components which are connected to the No. 1 CAN junction terminal.
        Terminal No. (Symbol) Wiring Color Connected to
        D91-3 (CANH) BR No. 3 CAN junction connector
        (for Sub bus 1)
        D91-2 (CANL) V
  8. NO. 2 CAN JUNCTION TERMINAL (w/ Dynamic Radar Cruise Control System) (w/ Blind Spot Monitor System) (w/ Parking Assist Monitor System)
    1. Check the No. 2 CAN junction terminal.
      1. Connection diagram
        GTY604948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Rear view of wire harness connector
        (to No. 2 CAN Junction Terminal)
        *b to No. 5 CAN Junction Connector
        (for Sub Bus 11)
      2. Check the connection diagram of the components which are connected to the No. 2 CAN junction terminal.
        Terminal No. (Symbol) Wiring Color Connected to
        O17-3 (CANH) L No. 5 CAN junction connector
        (for Sub bus 11)
        O17-2 (CANL) P
  9. DLC3

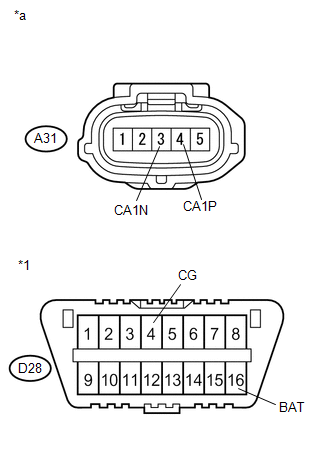

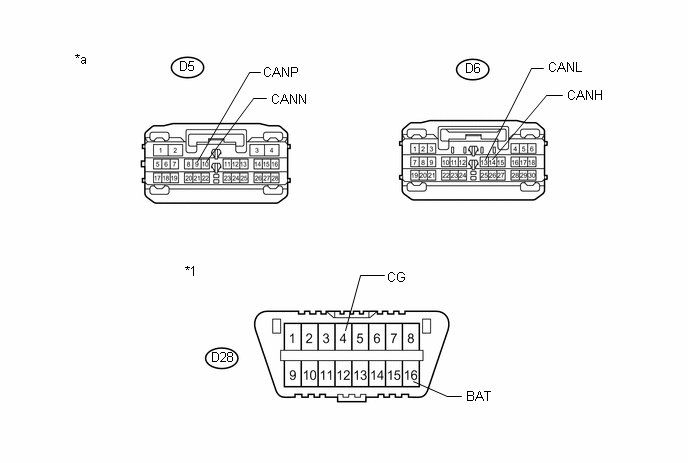

    GTY589177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *1 DLC3 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D28-6 (CANH) - D28-14 (CANL) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D28-6 (CANH) - D28-4 (CG) L - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D28-14 (CANL) - D28-4 (CG) W - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D28-6 (CANH) - D28-16 (BAT) L - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D28-14 (CANL) - D28-16 (BAT) W - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  10. POWER MANAGEMENT CONTROL ECU
    GTY551617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Power Management Control ECU)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the power management control ECU connector.

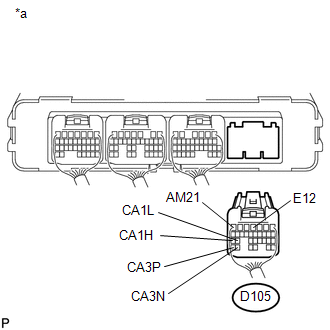

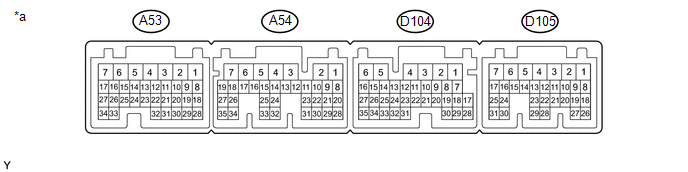

      GTY579588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      V BUS BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D105-25 (CA1H) - D105-24 (CA1L) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D105-25 (CA1H) - D105-4 (E12) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D105-24 (CA1L) - D105-4 (E12) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D105-25 (CA1H) - D105-7 (AM21) G - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D105-24 (CA1L) - D105-7 (AM21) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

      Standard Resistance

      SUB BUS 15 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D105-31 (CA3P) - D105-30 (CA3N) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      D105-31 (CA3P) - D105-4 (E12) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D105-30 (CA3N) - D105-4 (E12) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D105-31 (CA3P) - D105-7 (AM21) B - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D105-30 (CA3N) - D105-7 (AM21) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
    4. Disconnect the power management control ECU connector.

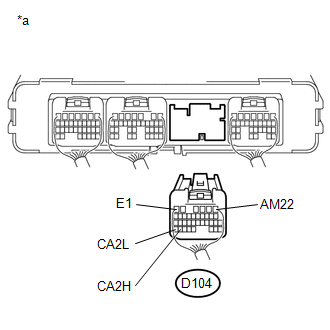

      GTY571126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      SUB BUS 11 MAIN LINES (W/ DYNAMIC RADAR CRUISE CONTROL SYSTEM) (W/ BLIND SPOT MONITOR SYSTEM) (W/ PARKING ASSIST MONITOR SYSTEM)

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D104-34 (CA2H) - D104-35 (CA2L) LG - Y HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      D104-34 (CA2H) - D104-6 (E1) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D104-35 (CA2L) - D104-6 (E1) Y - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D104-34 (CA2H) - D104-1 (AM22) LG - SB HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D104-35 (CA2L) - D104-1 (AM22) Y - SB LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  11. ECM

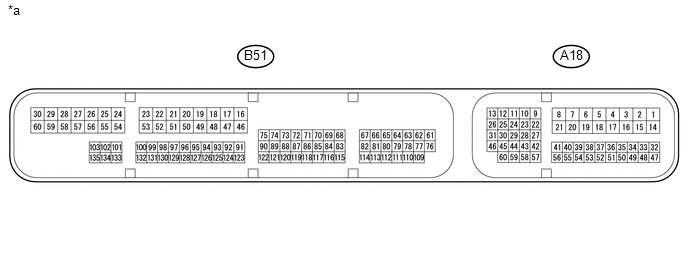

    GTY594210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (ECM)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the ECM connectors.

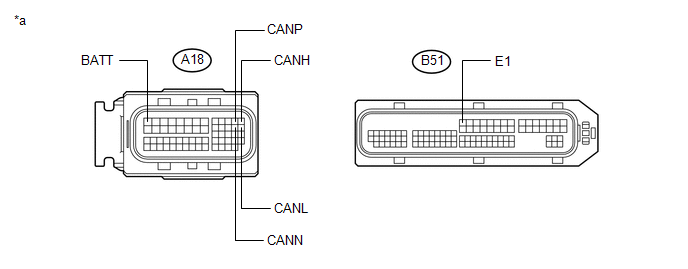

      GTY608963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to ECM)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      V BUS MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A18-13 (CANH) - A18-26 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      A18-13 (CANH) - B51-16 (E1) B - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A18-26 (CANL) - B51-16 (E1) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A18-13 (CANH) - A18-1 (BATT) B - GR HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A18-26 (CANL) - A18-1 (BATT) W - GR LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

      Standard Resistance

      SUB BUS 15 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A18-12 (CANP) - A18-25 (CANN) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      A18-12 (CANP) - B51-16 (E1) B - BR HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A18-25 (CANN) - B51-16 (E1) W - BR LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A18-12 (CANP) - A18-1 (BATT) B - GR HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A18-25 (CANN) - A18-1 (BATT) W - GR LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  12. COMBINATION METER ASSEMBLY
    GTY544453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Combination Meter Assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the combination meter assembly connector.
      GTY604816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Combination Meter Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D9-16 (CANH) - D9-15 (CANL) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      D9-16 (CANH) - D9-7 (ES) R - W HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D9-15 (CANL) - D9-7 (ES) W - W LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D9-16 (CANH) - D9-1 (B) R - B HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D9-15 (CANL) - D9-1 (B) W - B LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  13. INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

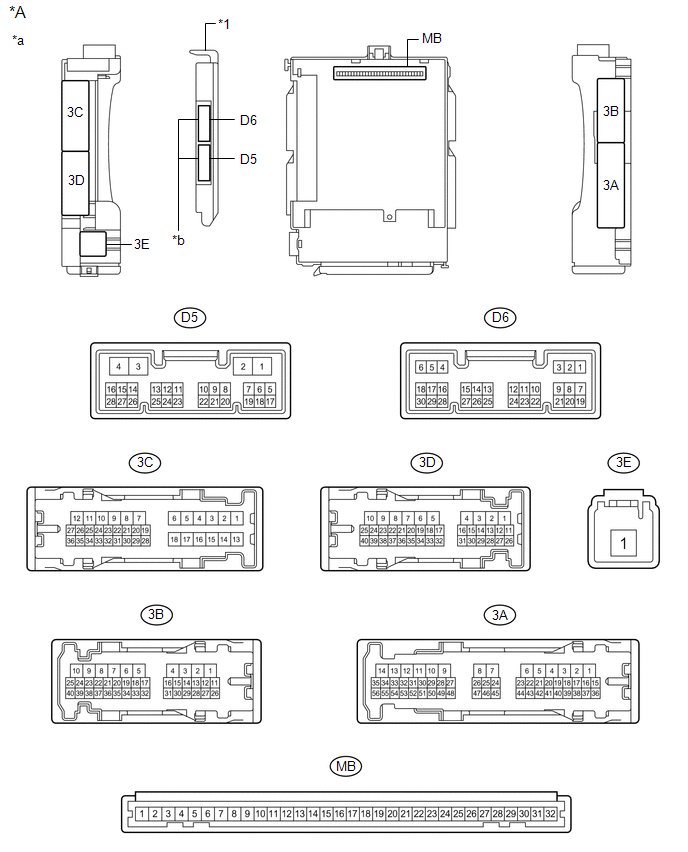

    GTY592303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *A Main Body ECU (Multiplex Network Body ECU) with 3 Connectors - -
    *1 Main Body ECU (Multiplex Network Body ECU)) - -
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))    		 *b 2 Connectors

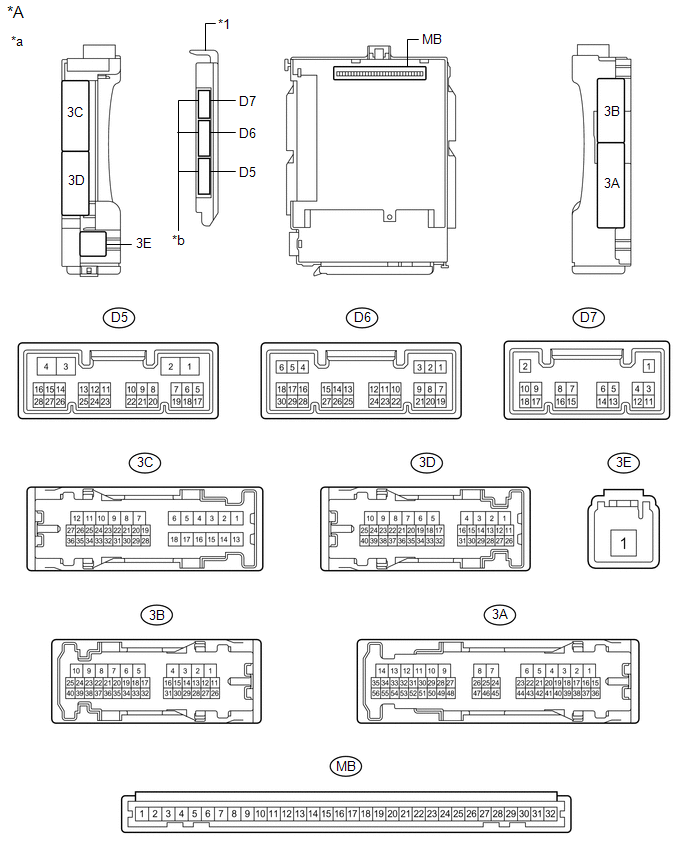

    GTY562644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *A Main Body ECU (Multiplex Network Body ECU) with 3 Connectors - -
    *1 Main Body ECU (Multiplex Network Body ECU)) - -
    *a Component without harness connected
    (Instrument Panel Junction Block Assembly and Main Body ECU (Multiplex Network Body ECU))    		 *b 3 Connectors
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the main body ECU (multiplex network body ECU) connectors.
      GTY549013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Main Body ECU (Multiplex Network Body ECU))      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      V BUS BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D6-14 (CANH) - D6-13 (CANL) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D6-14 (CANH) - D28-4 (CG) P - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D6-13 (CANL) - D28-4 (CG) W - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D6-14 (CANH) - D28-16 (BAT) P - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D6-13 (CANL) - D28-16 (BAT) W - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

      Standard Resistance

      SUB BUS 1 MAIN LINES (W/ SEAT POSITION MEMORY SYSTEM)

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D5-9 (CANP) - D5-10 (CANN) BE - V HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      D5-9 (CANP) - D28-4 (CG) BE - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D5-10 (CANN) - D28-4 (CG) V - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D5-9 (CANP) - D28-16 (BAT) BE - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D5-10 (CANN) - D28-16 (BAT) V - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  14. SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)
    GTY539795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Skid Control ECU (Brake Booster with Master Cylinder Assembly))    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the skid control ECU (brake booster with master cylinder assembly) connector.

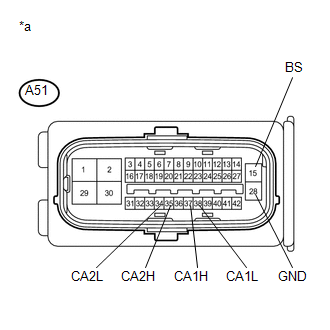

      GTY567264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      V BUS BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A51-37 (CA1H) - A51-38 (CA1L) GR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A51-37 (CA1H) - A51-28 (GND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A51-38 (CA1L) - A51-28 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A51-37 (CA1H) - A51-15 (BS) GR - Y HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A51-38 (CA1L) - A51-15 (BS) W - Y LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

      Standard Resistance

      SUB BUS 15 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A51-35 (CA2H) - A51-34 (CA2L) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A51-35 (CA2H) - A51-28 (GND) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A51-34 (CA2L) - A51-28 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A51-35 (CA2H) - A51-15 (BS) B - Y HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A51-34 (CA2L) - A51-15 (BS) W - Y LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  15. STEERING SENSOR
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the steering sensor connector.
      GTY538970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Steering Sensor)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D21-3 (CANH) - D21-2 (CANL) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D21-3 (CANH) - D21-1 (ESS) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D21-2 (CANL) - D21-1 (ESS) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D21-3 (CANH) - D21-5 (BAT) V - LG HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D21-2 (CANL) - D21-5 (BAT) W - LG LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  16. POWER STEERING ECU ASSEMBLY
    GTY584108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Power Steering ECU Assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the power steering ECU assembly connectors.
      GTY541576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Power Steering ECU Assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      c1-7 (CANH) - c1-8 (CANL) Y - SB HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      c1-7 (CANH) - c2-2 (PGND) Y - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      c1-8 (CANL) - c2-2 (PGND) SB - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      c1-7 (CANH) - c2-1 (PIG) Y - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      c1-8 (CANL) - c2-1 (PIG) SB - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  17. AIRBAG ECU ASSEMBLY

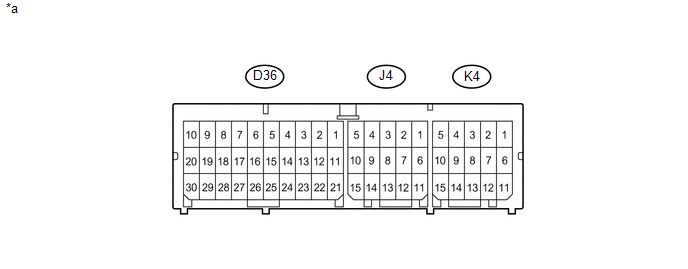

    GTY577816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Airbag ECU Assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the airbag ECU assembly connector.
      GTY558853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D36-13 (CANH) - D36-22 (CANL) LG - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D36-13 (CANH) - D36-25 (E1) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D36-22 (CANL) - D36-25 (E1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D36-13 (CANH) - D28-16 (BAT) LG - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D36-22 (CANL) - D28-16 (BAT) W - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  18. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    GTY562043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Certification ECU (Smart Key ECU Assembly))    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the certification ECU (smart key ECU assembly) connectors.
      GTY550401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Certification ECU (Smart Key ECU Assembly))      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D110-1 (CANH) - D110-2 (CANL) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D110-1 (CANH) - D109-1 (E) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D110-2 (CANL) - D109-1 (E) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D110-1 (CANH) - D110-5 (+B) L - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D110-2 (CANL) - D110-5 (+B) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

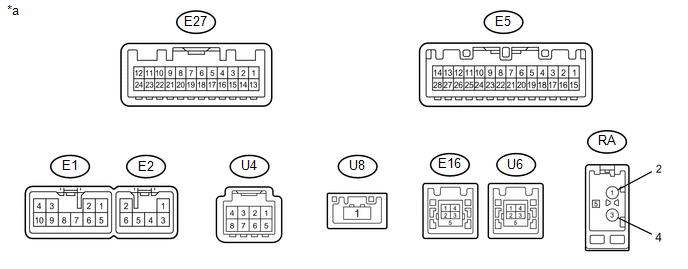

  19. NAVIGATION ECU SUB-ASSEMBLY (for Navigation Receiver Type)

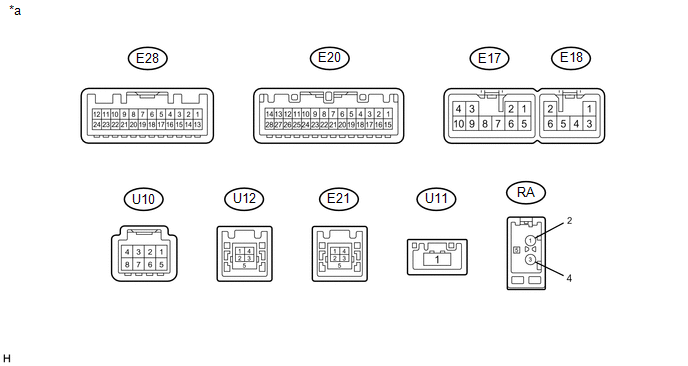

    GTY555387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Navigation ECU Sub-assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the navigation ECU sub-assembly connectors.

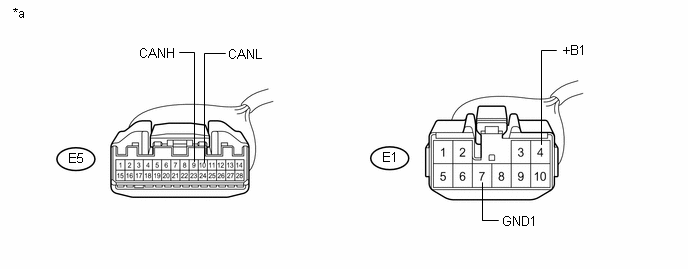

      GTY597751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Navigation ECU Sub-assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E20-9 (CANH) - E20-10 (CANL) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      E20-9 (CANH) - E17-7 (GND1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      E20-10 (CANL) - E17-7 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      E20-9 (CANH) - E17-4 (+B1) R - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      E20-10 (CANL) - E17-4 (+B1) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  20. RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)
    GTY564559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Radio and Display Receiver Assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the radio and display receiver assembly connectors.
      GTY545839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Radio and Display Receiver Assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E5-9 (CANH) - E5-10 (CANL) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      E5-9 (CANH) - E1-7 (GND1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      E5-10 (CANL) - E1-7 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      E5-9 (CANH) - E1-4 (+B1) R - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      E5-10 (CANL) - E1-4 (+B1) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  21. AIR CONDITIONING AMPLIFIER ASSEMBLY

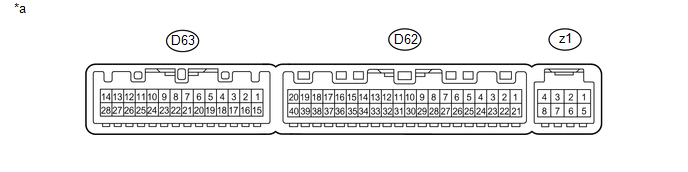

    GTY600627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Air Conditioning Amplifier Assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the air conditioning amplifier assembly connector.
      GTY558180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D62-11 (CANH) - D62-12 (CANL) BR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D62-11 (CANH) - D62-14 (GND) BR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D62-12 (CANL) - D62-14 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D62-11 (CANH) - D62-21 (B) BR - Y HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D62-12 (CANL) - D62-21 (B) W - Y LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  22. OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) (w/ Seat Position Memory System)
    GTY549223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Outer Mirror Control ECU Assembly (for Driver Side))    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the outer mirror control ECU assembly (for driver side) connector.
      GTY551049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Outer Mirror Control ECU Assembly (for Driver Side))
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      G12-9 (CANP) - G12-8 (CANN) GR - V HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      G12-9 (CANP) - G12-7 (GND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G12-8 (CANN) - G12-7 (GND) V - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      G12-9 (CANP) - G12-6 (CPUB) GR - BE HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      G12-8 (CANN) - G12-6 (CPUB) V - BE LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  23. OUTER MIRROR CONTROL ECU ASSEMBLY (for Front Passenger Side) (w/ Seat Position Memory System)
    GTY601807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Outer Mirror Control ECU Assembly (for Front Passenger Side))    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the outer mirror control ECU assembly (for front passenger side) connector.
      GTY601999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Outer Mirror Control ECU Assembly (for Front Passenger Side))
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F10-9 (CANP) - F10-8 (CANN) LG - V HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F10-9 (CANP) - F10-7 (GND) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F10-8 (CANN) - F10-7 (GND) V - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F10-9 (CANP) - F10-6 (CPUB) LG - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F10-8 (CANN) - F10-6 (CPUB) V - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  24. FRONT POWER SEAT SWITCH LH (w/ Seat Position Memory System)
    GTY584709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Front Power Seat Switch LH)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the connectors of the front power seat switch LH.
      GTY599476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Front Power Seat Switch LH)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      S9-8 (CANP) - S9-7 (CANN) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      S9-8 (CANP) - S8-2 (GND) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      S9-7 (CANN) - S8-2 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      S9-8 (CANP) - S8-7 (+B) L - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      S9-7 (CANN) - S8-7 (+B) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  25. BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)
    GTY582309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Blind Spot Monitor Sensor LH)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the blind spot monitor sensor LH connector.

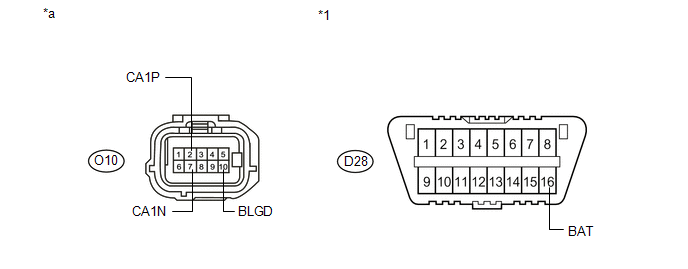

      GTY608918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      O10-2 (CA1P) - O10-7 (CA1N) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      O10-2 (CA1P) - O10-10 (BLGD) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O10-7 (CA1N) - O10-10 (BLGD) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O10-2 (CA1P) - D28-16 (BAT) R - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O10-7 (CA1N) - D28-16 (BAT) W - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  26. SEAT BELT CONTROL ECU (w/ Dynamic Radar Cruise Control System)
    GTY552313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Seat Belt Control ECU)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the seat belt control ECU connectors.
      GTY605434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Seat Belt Control ECU)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D27-1 (CANH) - D27-2 (CANL) B - Y HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D27-1 (CANH) - D26-8 (PGND) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D27-2 (CANL) - D26-8 (PGND) Y - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D27-1 (CANH) - D26-7 (+B) B - B HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D27-2 (CANL) - D26-7 (+B) Y - B LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  27. DRIVING SUPPORT ECU ASSEMBLY (w/ Dynamic Radar Cruise Control System)
    GTY545235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Driving Support ECU assembly)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the driving support ECU assembly connector.
      GTY599707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Driving Support ECU Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      SUB BUS 11 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D38-39 (CA2H) - D38-17 (CA2L) SB - Y HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      D38-39 (CA2H) - D38-25 (GND) SB - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D38-17 (CA2L) - D38-25 (GND) Y - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D38-39 (CA2H) - D38-30 (B) SB - G HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D38-17 (CA2L) - D38-30 (B) Y - G LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

      Standard Resistance

      SUB BUS 13 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      D38-40 (CA1P) - D38-18 (CA1N) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      D38-40 (CA1P) - D38-25 (GND) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D38-18 (CA1N) - D38-25 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      D38-40 (CA1P) - D38-30 (B) R - G HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      D38-18 (CA1N) - D38-30 (B) W - G LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  28. MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the millimeter wave radar sensor assembly connector.
      GTY594463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to Millimeter Wave Radar Sensor Assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A31-4 (CA1P) - A31-3 (CA1N) R - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      A31-4 (CA1P)- D28-4 (CG) R - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A31-3 (CA1N) - D28-4 (CG) W - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A31-4 (CA1P) - D28-16 (BAT) R - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A31-3 (CA1N) - D28-16 (BAT) W - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  29. REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)
    GTY579320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *a Component without harness connected
    (Rear Television Camera Assembly)    		 - -
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the rear television camera assembly connector.

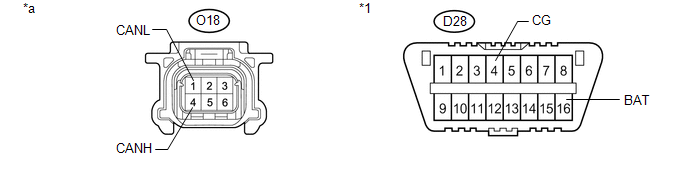

      GTY556927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Rear Television Camera Assembly)      		 - -
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      O18-4 (CANH) - O18-1 (CANL) SB - GR HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      O18-4 (CANH) - D28-4 (CG) SB - B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O18-1 (CANL) - D28-4 (CG) GR - B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      O18-4 (CANH) - D28-16 (BAT) SB - R HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      O18-1 (CANL) - D28-16 (BAT) GR - R LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
scientia non olet · About LEMON Manuals
