Parts Location [10/2015 - ]: Illustration

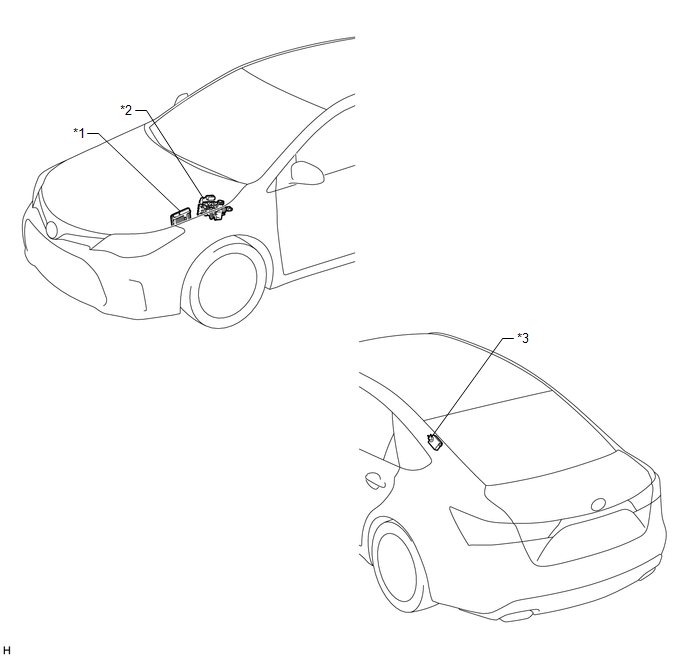

| *1 | ECM | *2 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| *3 | TIRE PRESSURE WARNING ECU AND RECEIVER | - | - |

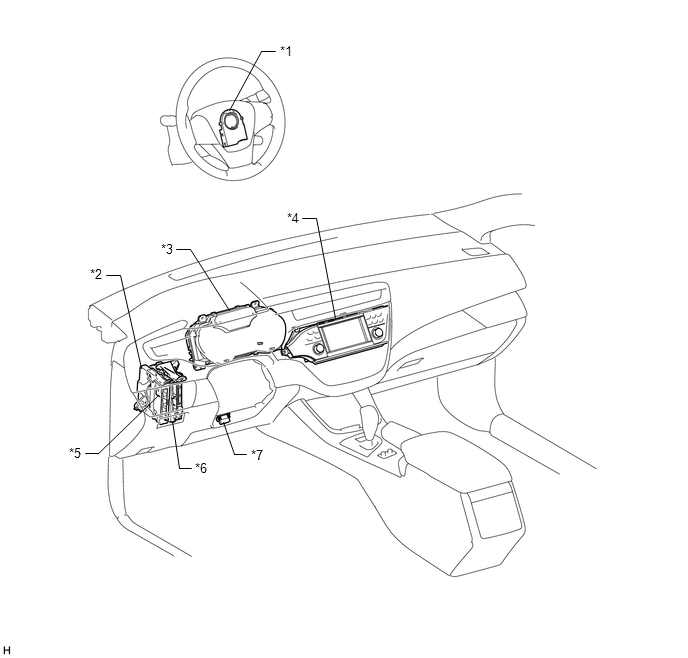

| *1 | STEERING SENSOR | *2 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | NAVIGATION ECU SUB-ASSEMBLY (for Navigation Receiver Type) RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *7 | DLC3 | - | - |

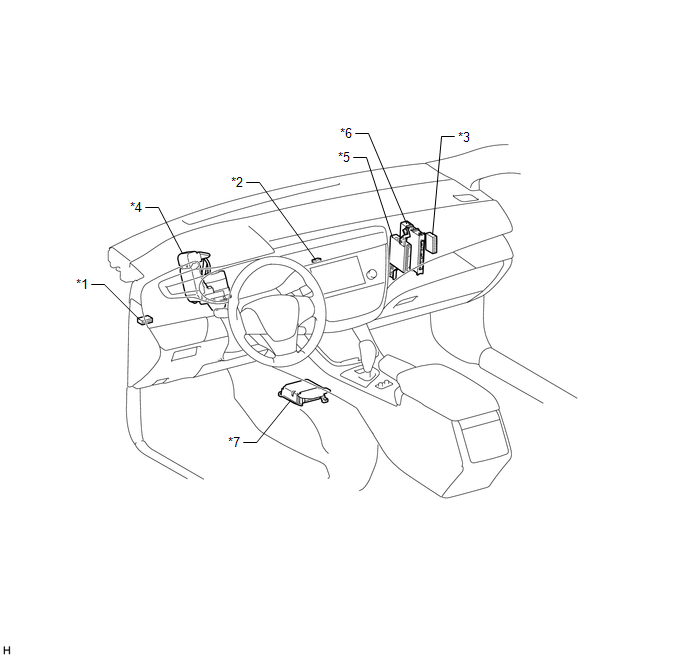

| *1 | NO. 1 CAN JUNCTION CONNECTOR | *2 | NO. 6 CAN JUNCTION CONNECTOR |
| *3 | NO. 2 CAN JUNCTION CONNECTOR | *4 | POWER STEERING ECU ASSEMBLY |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | AIRBAG ECU ASSEMBLY | - | - |
