Home >> Toyota >> 2015 >> Avalon Hybrid Limited >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Can Communication System (W/O Central Gateway Ecu) - Inspection - (Hybrid) >> CAN COMMUNICATION SYSTEM (w/o Central Gateway ECU) >> Parts Location [10/2014 - 10/2015] >> Illustration

Parts Location [10/2014 - 10/2015]: Illustration

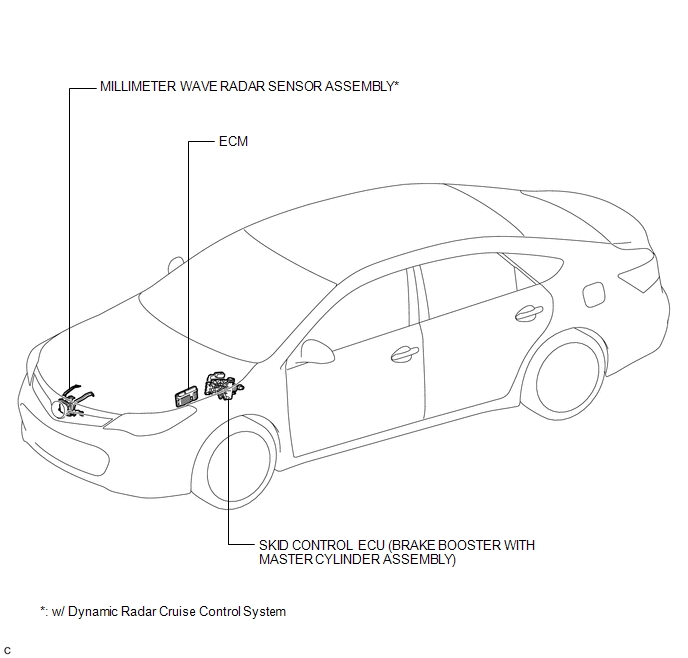

GTY583482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

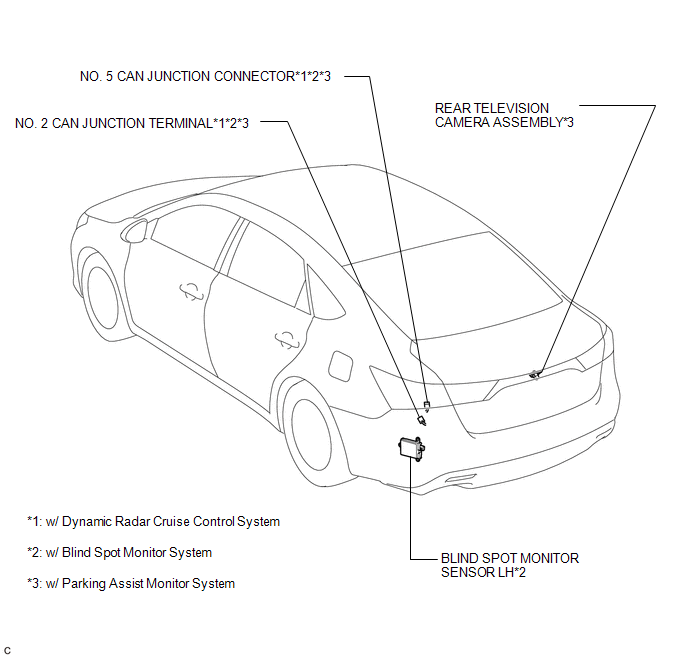

GTY572415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

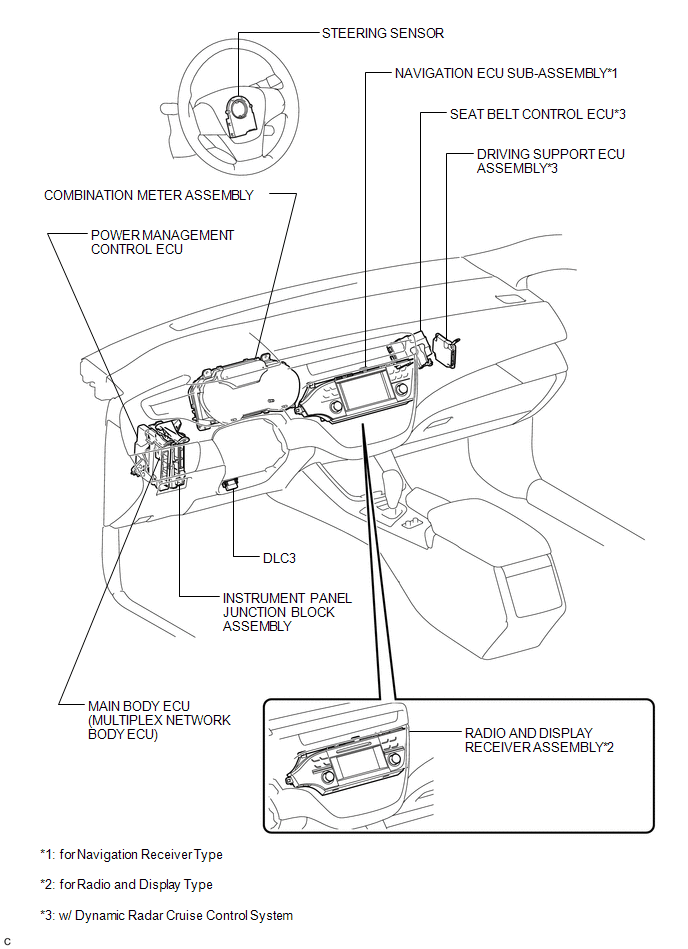

GTY371170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

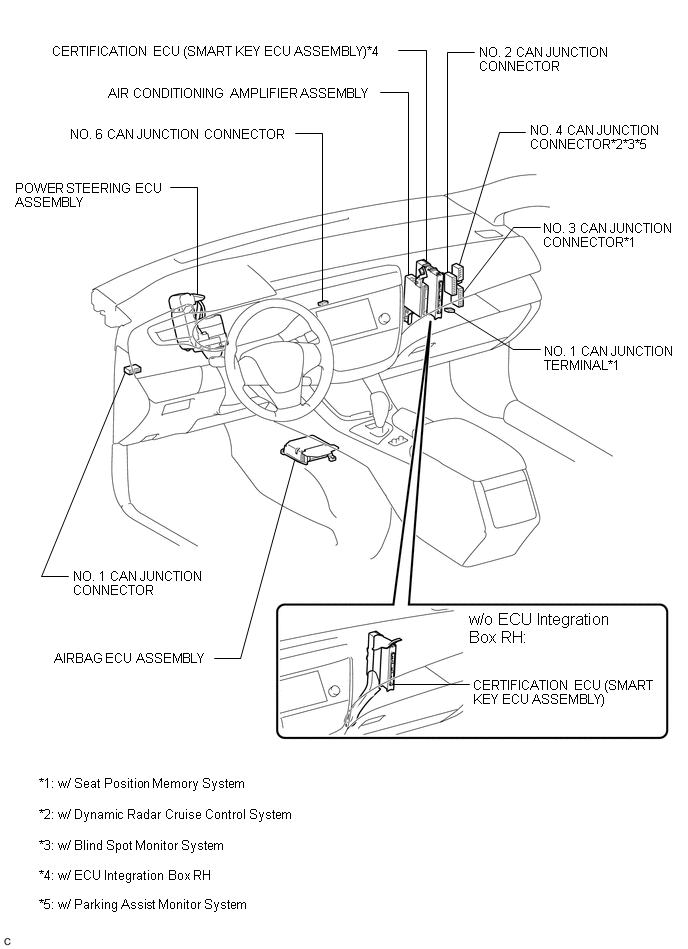

GTY548478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

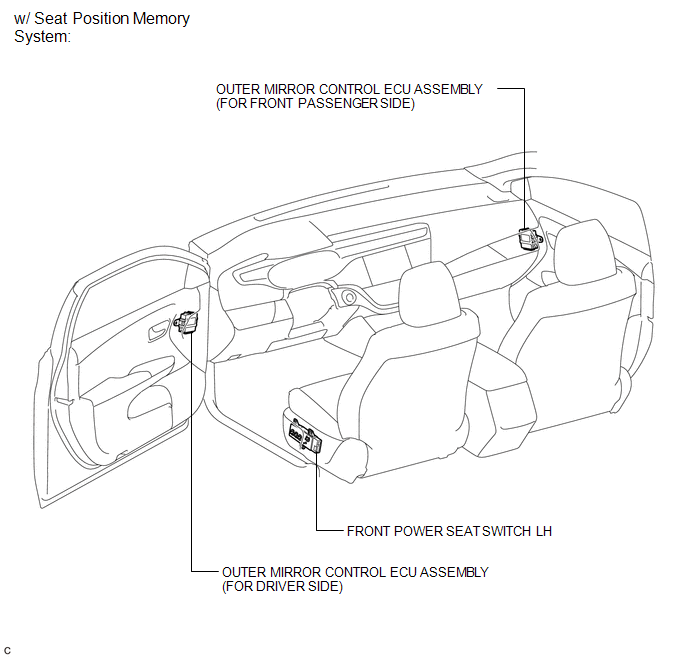

GTY586207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
