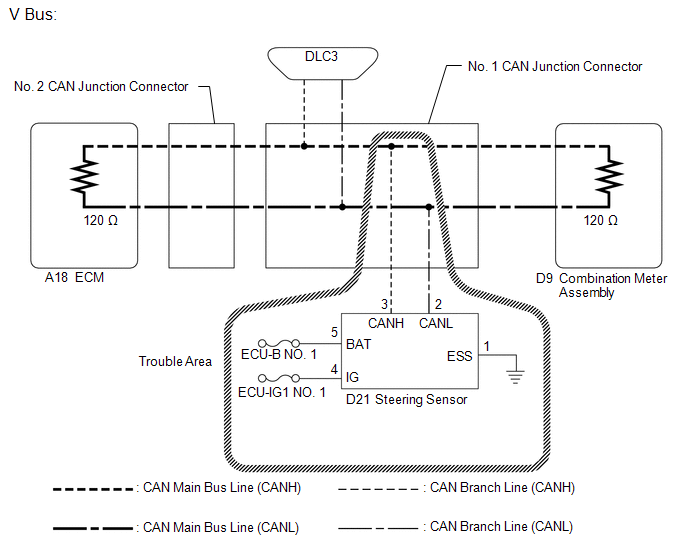

Steering Angle Sensor Communication Stop Mode [10/2015 - ]: Wiring Diagram

GTY583399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
