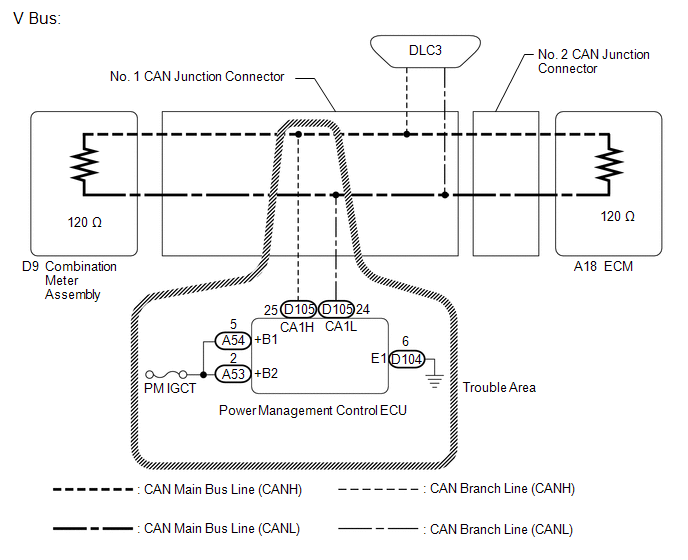

Power Management Control ECU Communication Stop Mode [10/2014 - 10/2015]: Wiring Diagram

GTY540123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
