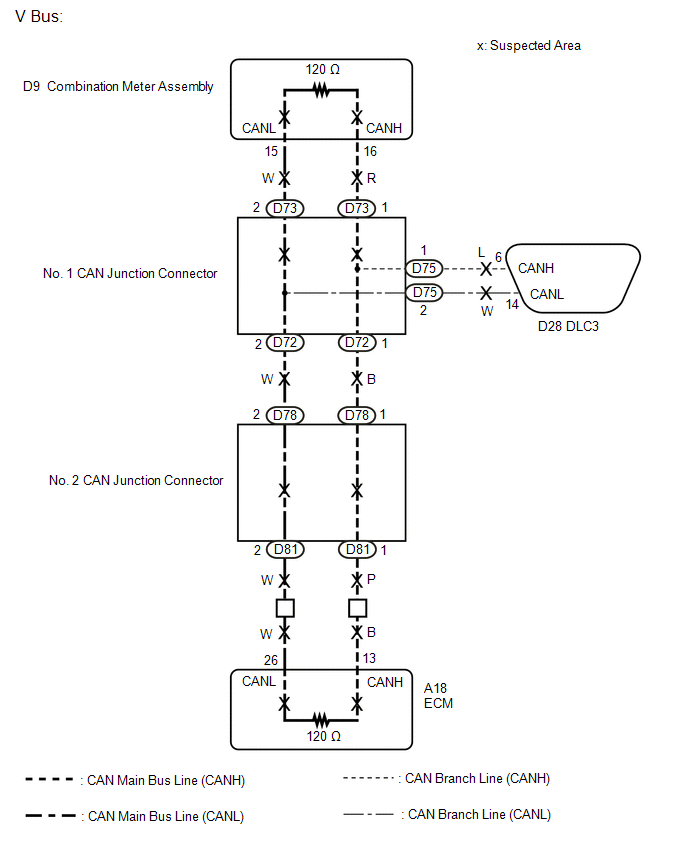

Open in CAN Main Bus Line [10/2014 - 10/2015]: Wiring Diagram

GTY558213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
