Navigation ECU Communication Stop Mode [10/2014 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the E20 navigation ECU sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E20-9 (CANH) - E20-10 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Navigation ECU Sub-assembly)

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NAVIGATION ECU SUB-ASSEMBLY)

Result:

OK

See step  2

1. Disconnect the E17 navigation ECU sub-assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E17-7 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   E17-3 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   E17-4 (+B1) - Body ground	Power switch off	11 to 14 V
   E20-1 (IG) - Body ground	Power switch on (IG)	11 to 14 V

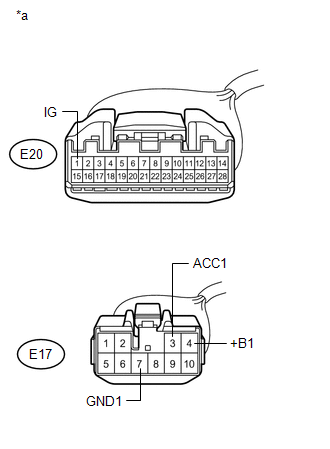

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Navigation ECU Sub-assembly)

Result:

OK

REPLACE NAVIGATION ECU SUB-ASSEMBLY

(Refer to REMOVAL [10/2014 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
