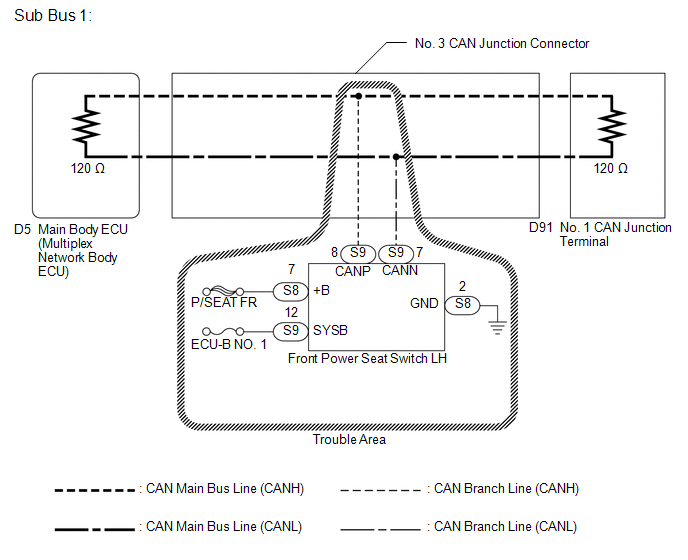

DTC U0208: Lost Communication with "Seat Control Module A" [10/2014 - ]: Wiring Diagram

GTY574713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
