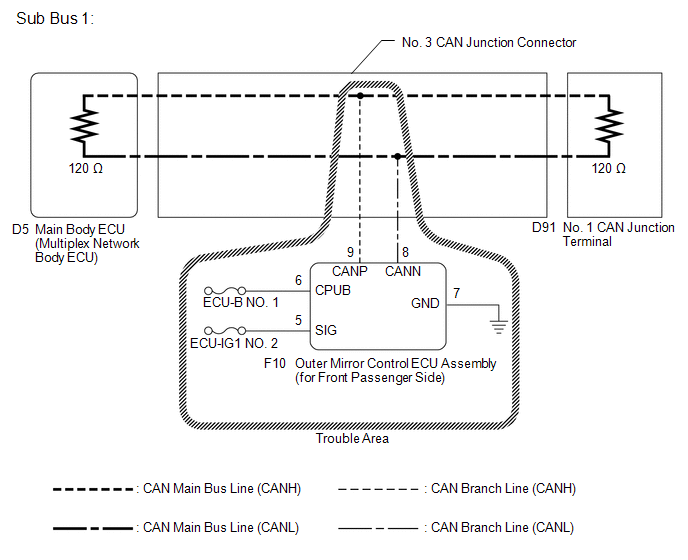

DTC U0199: Lost Communication with "Door Control Module A" [10/2014 - ]: Wiring Diagram

GTY579519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
