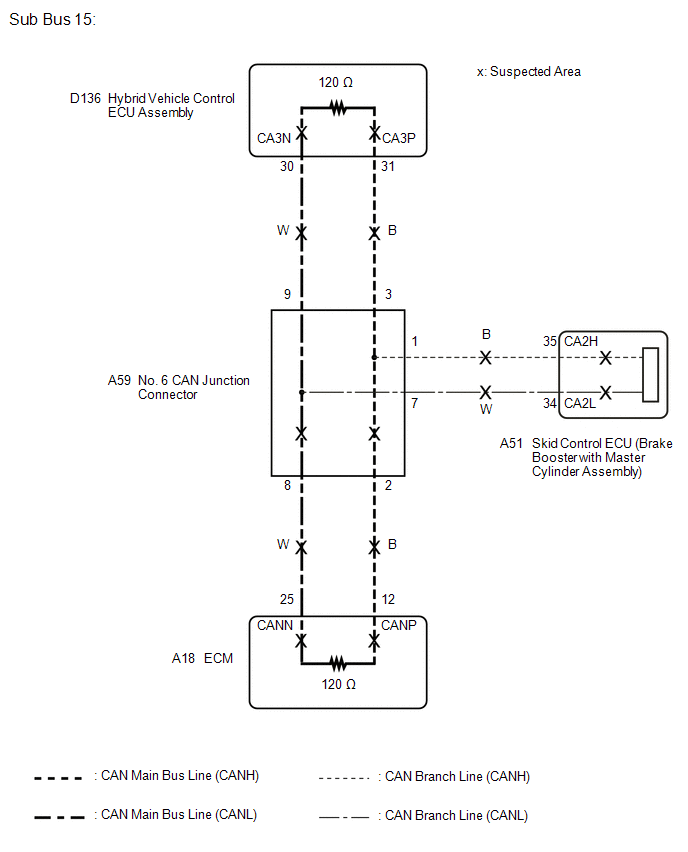

DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module; DTC U0293: Lost Communication with Hybrid Vehicle Control System [10/2015 - ]: Wiring Diagram

GTY540913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
