Certification ECU Communication Stop Mode [10/2015 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) BRANCH LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the D123 certification ECU (smart key ECU assembly) connector.

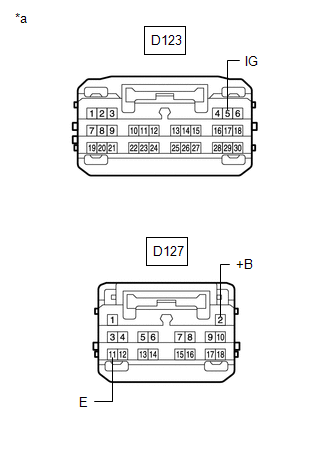

*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D123-14 (CANH) - D123-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Disconnect the D127 certification ECU (smart key ECU assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))Standard Resistance
Tester Connection Condition Specified Condition D127-11 (E) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω - Reconnect the cable to the negative (-) auxiliary battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition D127-2 (+B) - Body ground Power switch off 11 to 14 V D123-5 (IG) - Body ground Power switch on (IG) 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [10/2014 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
