Check Bus 5 Lines for Short Circuit [10/2015 - ]: Wiring Diagram

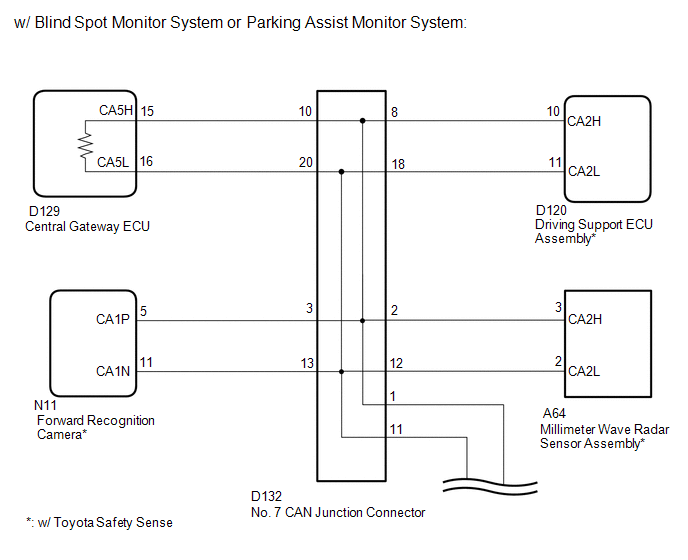

GTY596863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

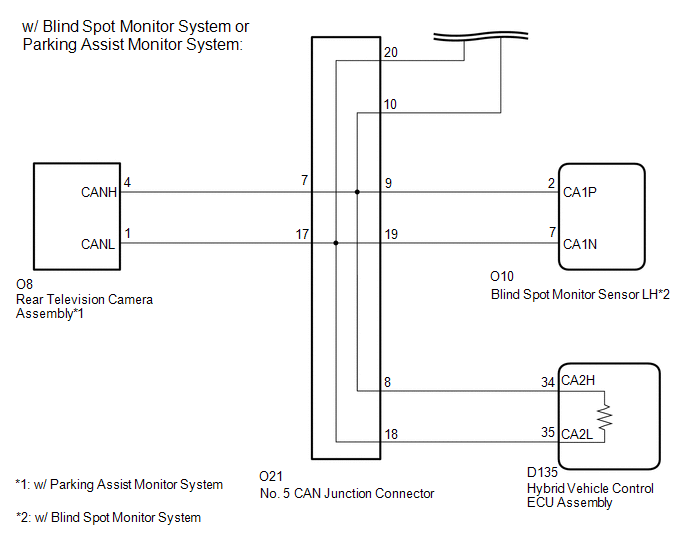

GTY573551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

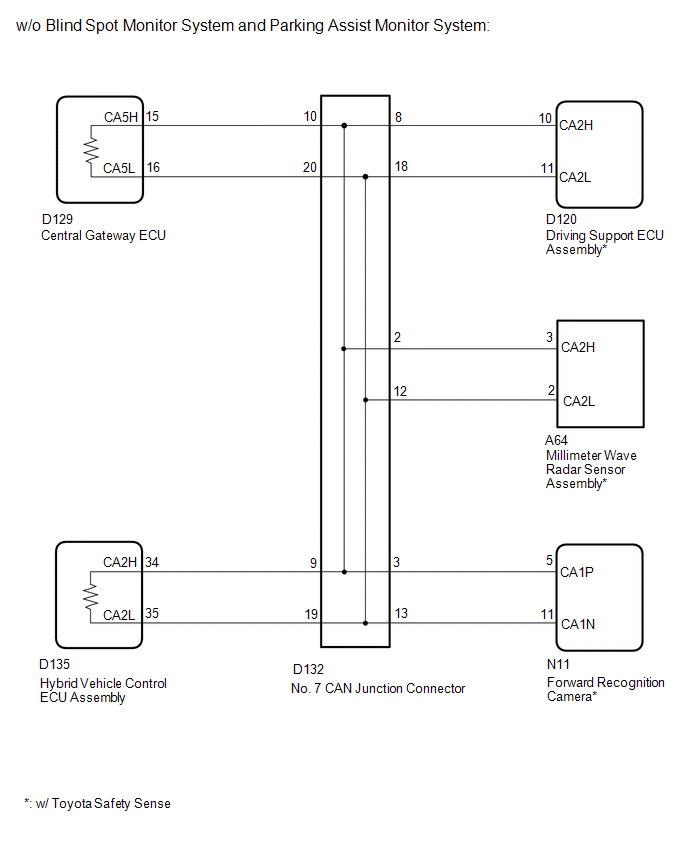

GTY590231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
