Check Bus 2 Lines for Short Circuit [10/2015 - ]: Wiring Diagram

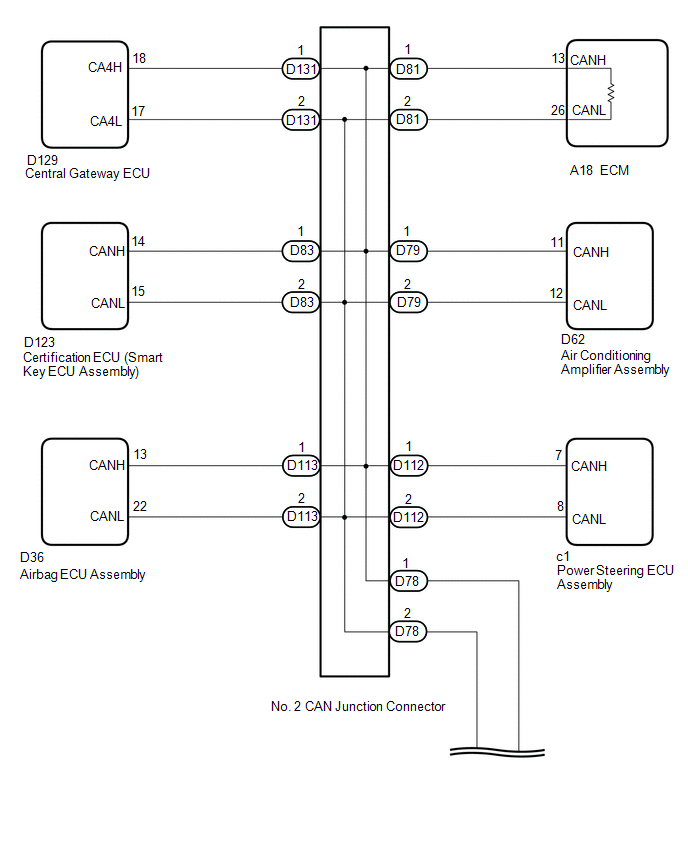

GTY580973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

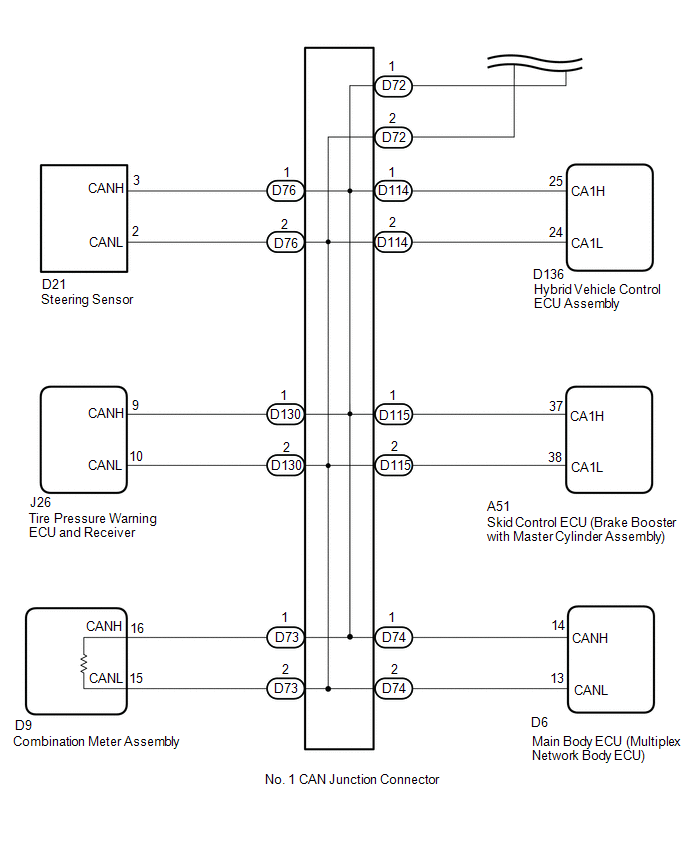

GTY587538

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
