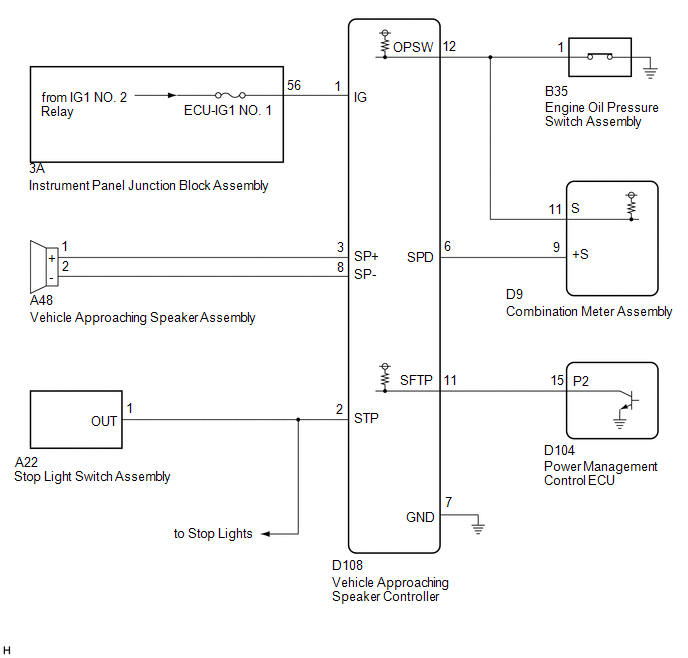

There is No Sound Made [10/2014 - 10/2015]: Wiring Diagram

GTY574051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
