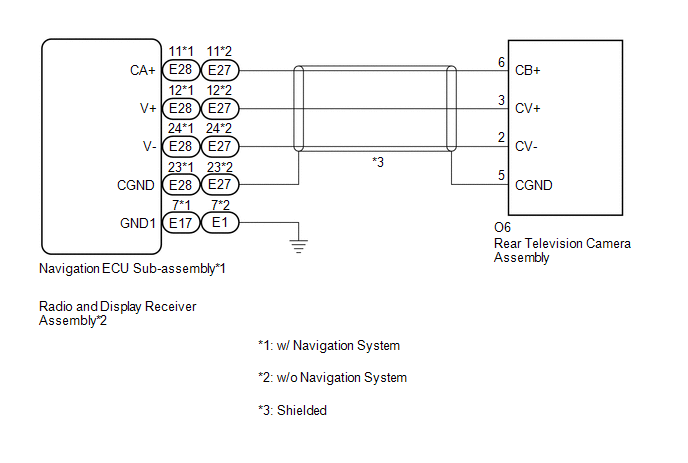

DTC C1622: Back Camera Disconnected [10/2014 - ]: Wiring Diagram

GTY556451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
