Removal [10/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY

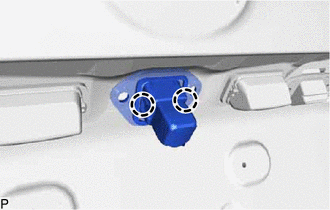

    1. Disengage the 2 claws.
      GTY369585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

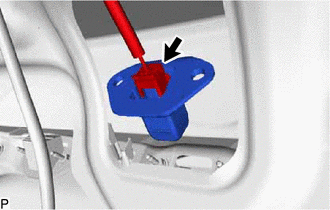

    2. Disconnect the connector and remove the rear television camera assembly.
      GTY369587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
