Removal [10/2014 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8 and PROCEDURE - Step 8

  3. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  4. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 4

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 24 and PROCEDURE - Step 24

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 25 and PROCEDURE - Step 25

  9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  12. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  13. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  14. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    Refer to PROCEDURE - Step 14

  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 15

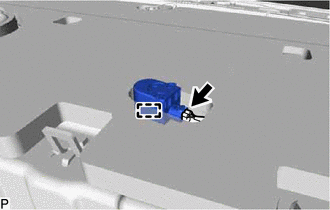

  16. REMOVE BLIND SPOT MONITOR BUZZER
    1. Disengage the clamp.
      GTY369600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the blind spot monitor buzzer.
