Parts Location [10/2014 - 10/2015]: Illustration

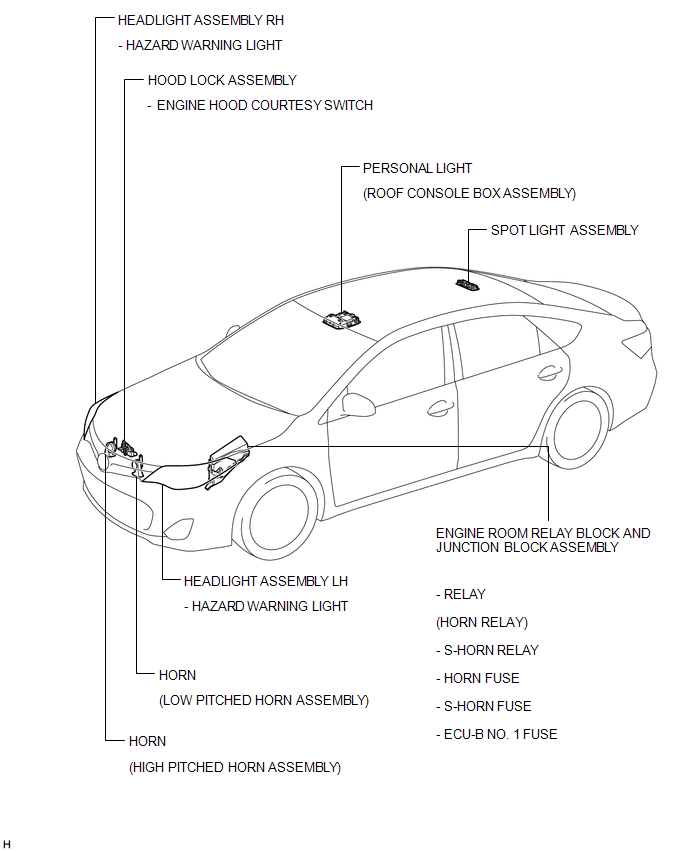

GTY374549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

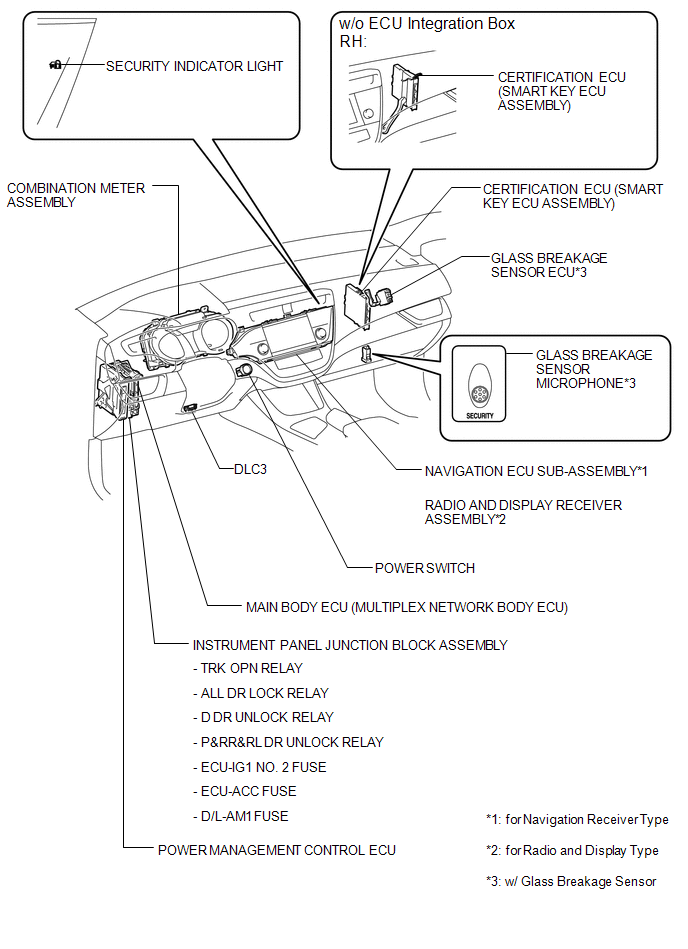

GTY370954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

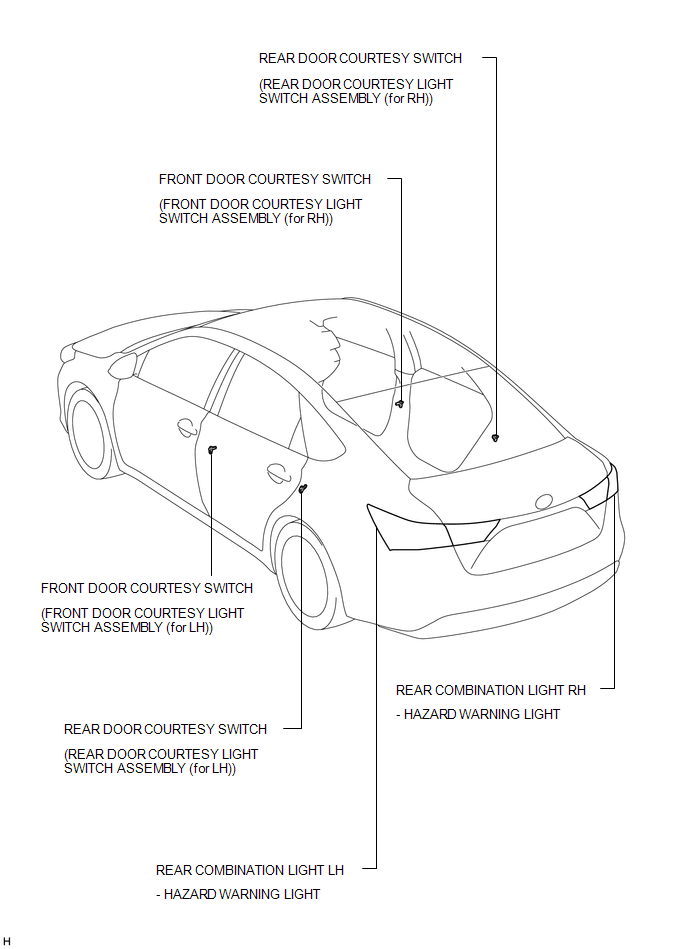

GTY367745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

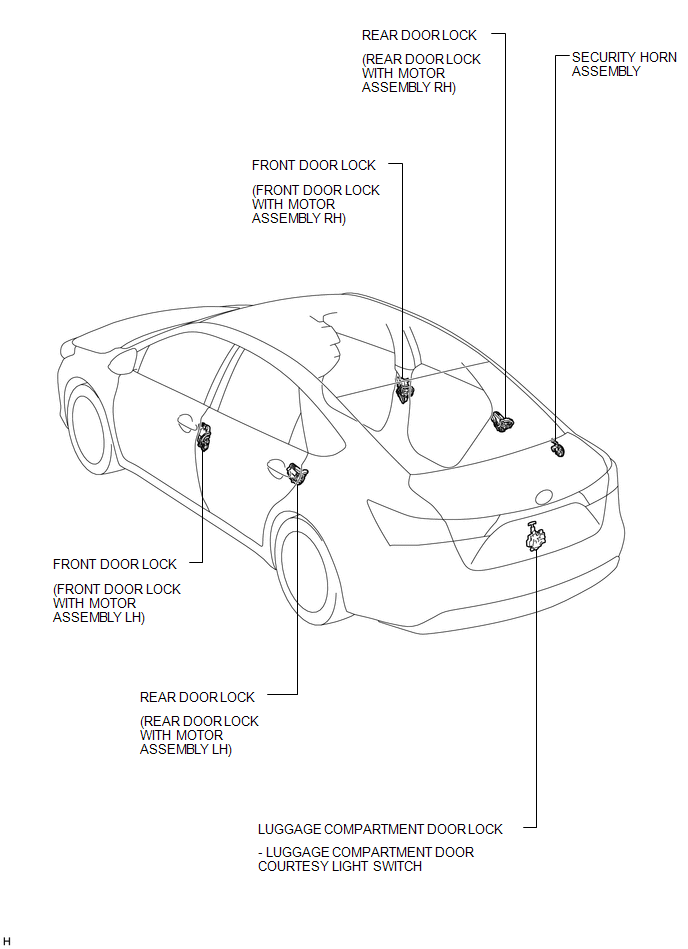

GTY376156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
