Components [08/2014 - ]: Illustration

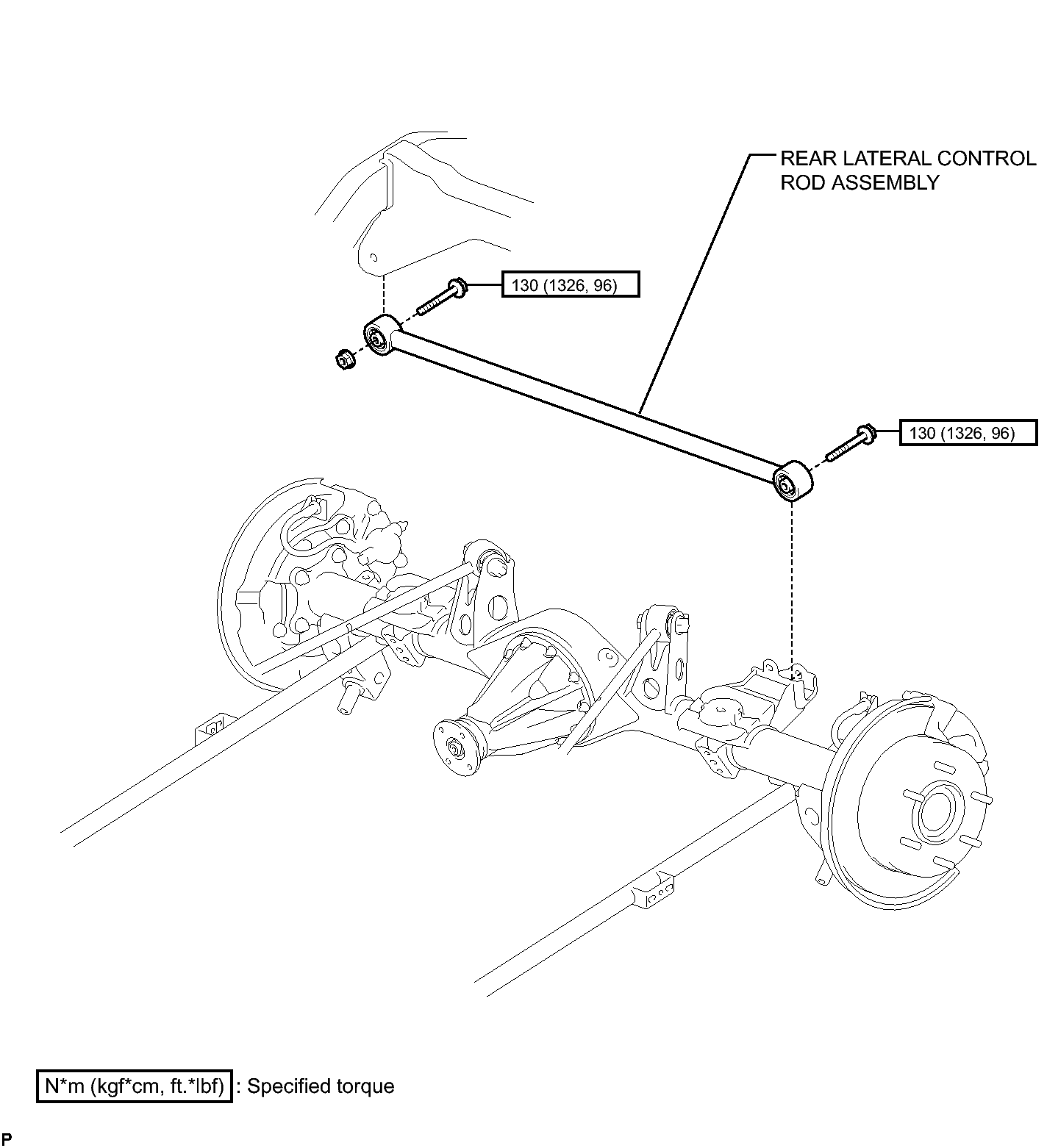

Fig 1: Identifying Rear Lateral Control Rod Replacement Components With Torque Specifications
GTY225028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
