Components [08/2014 - ]: Illustration

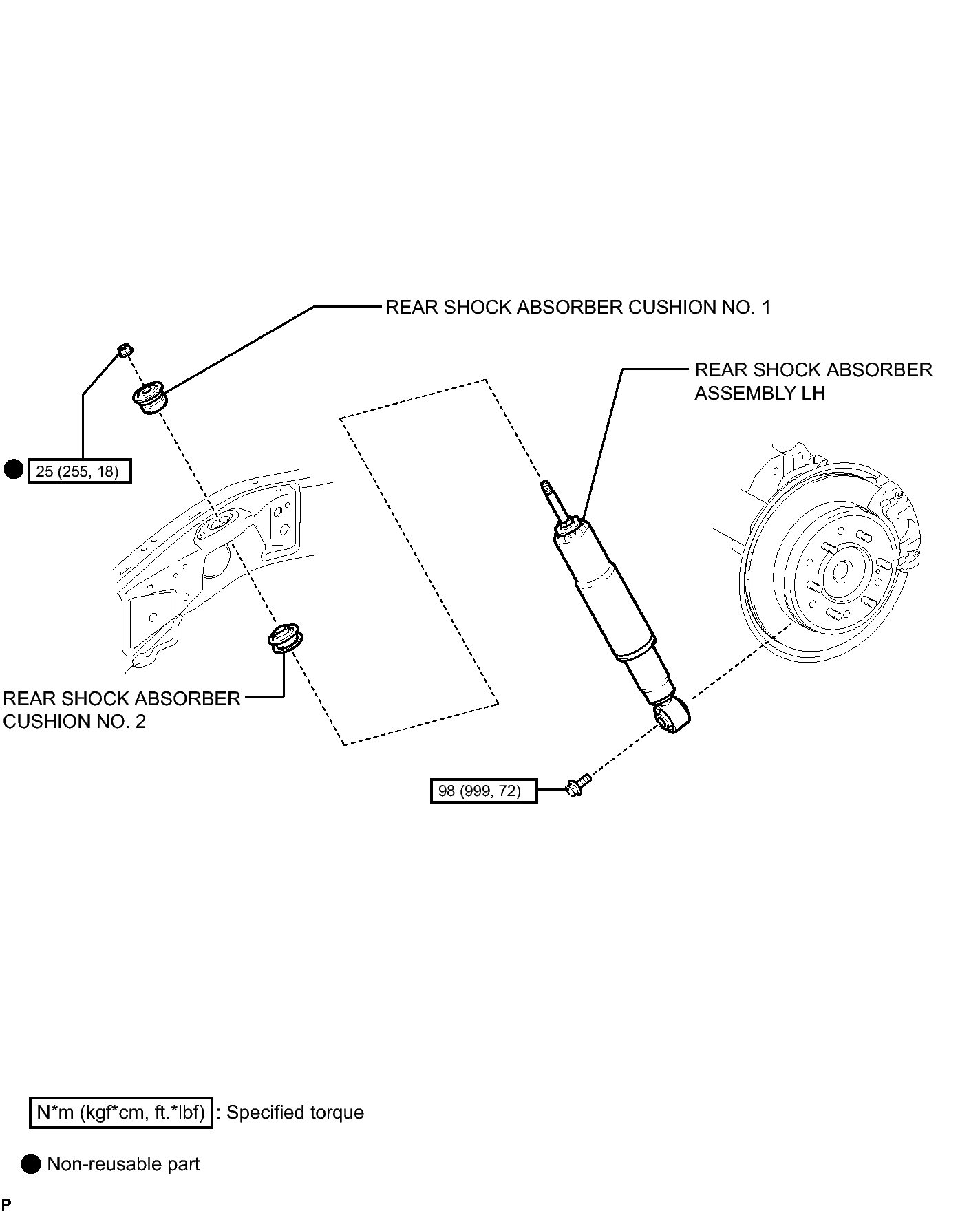

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (W/O REAS)

GTY234106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
