Components [08/2014 - ]: Illustration

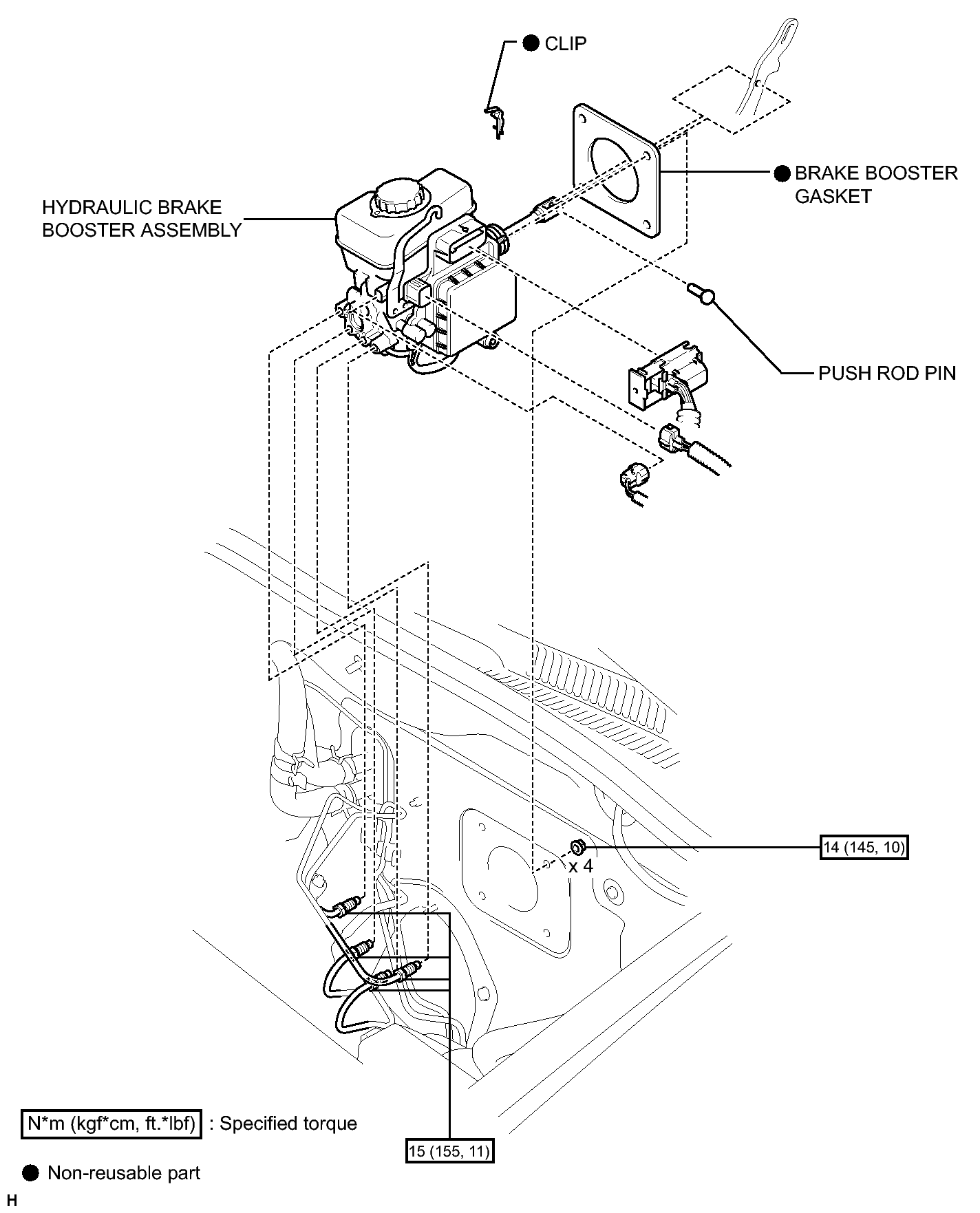

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (1 Of 3)
GTY234770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

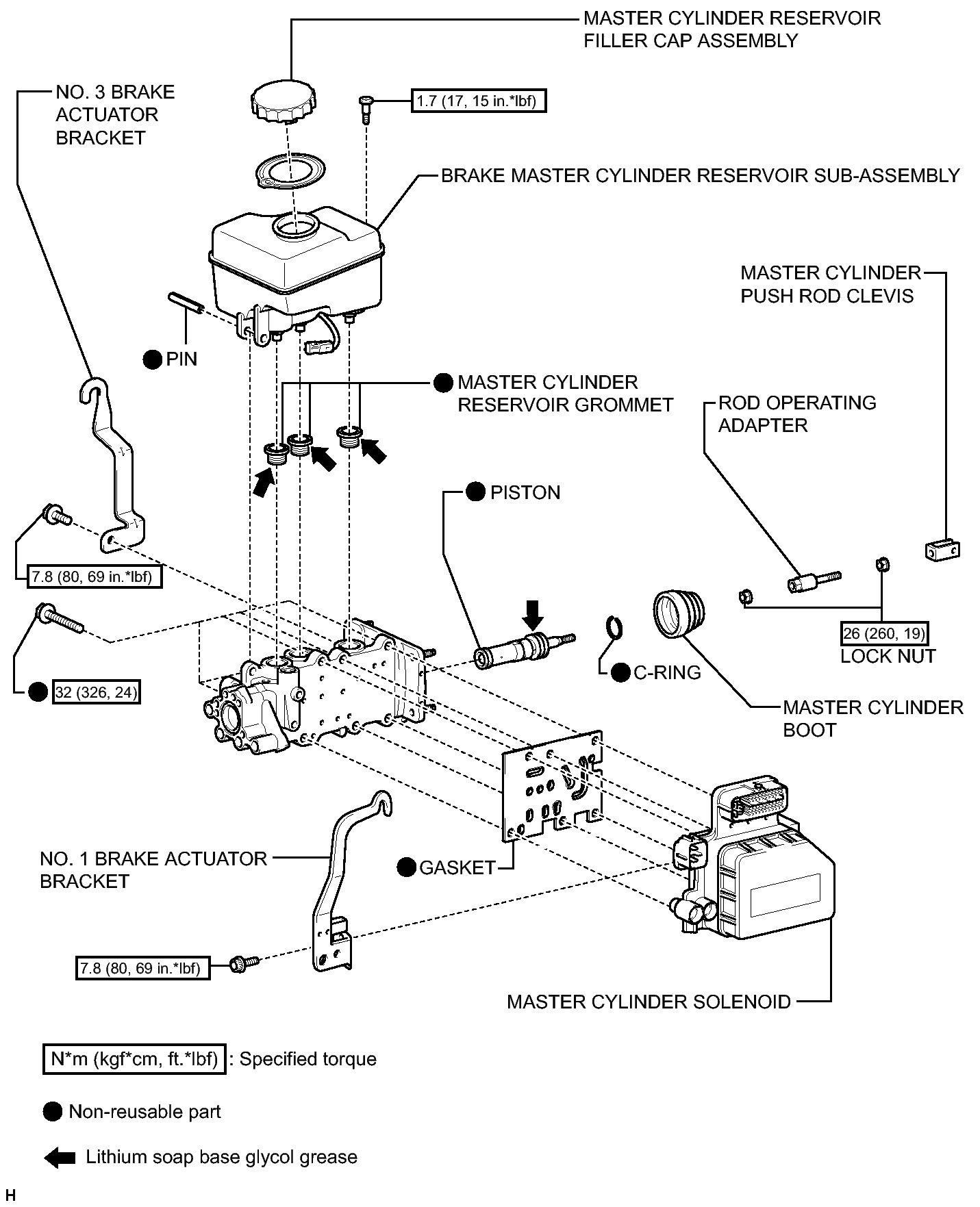

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (2 Of 3)
GTY226604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

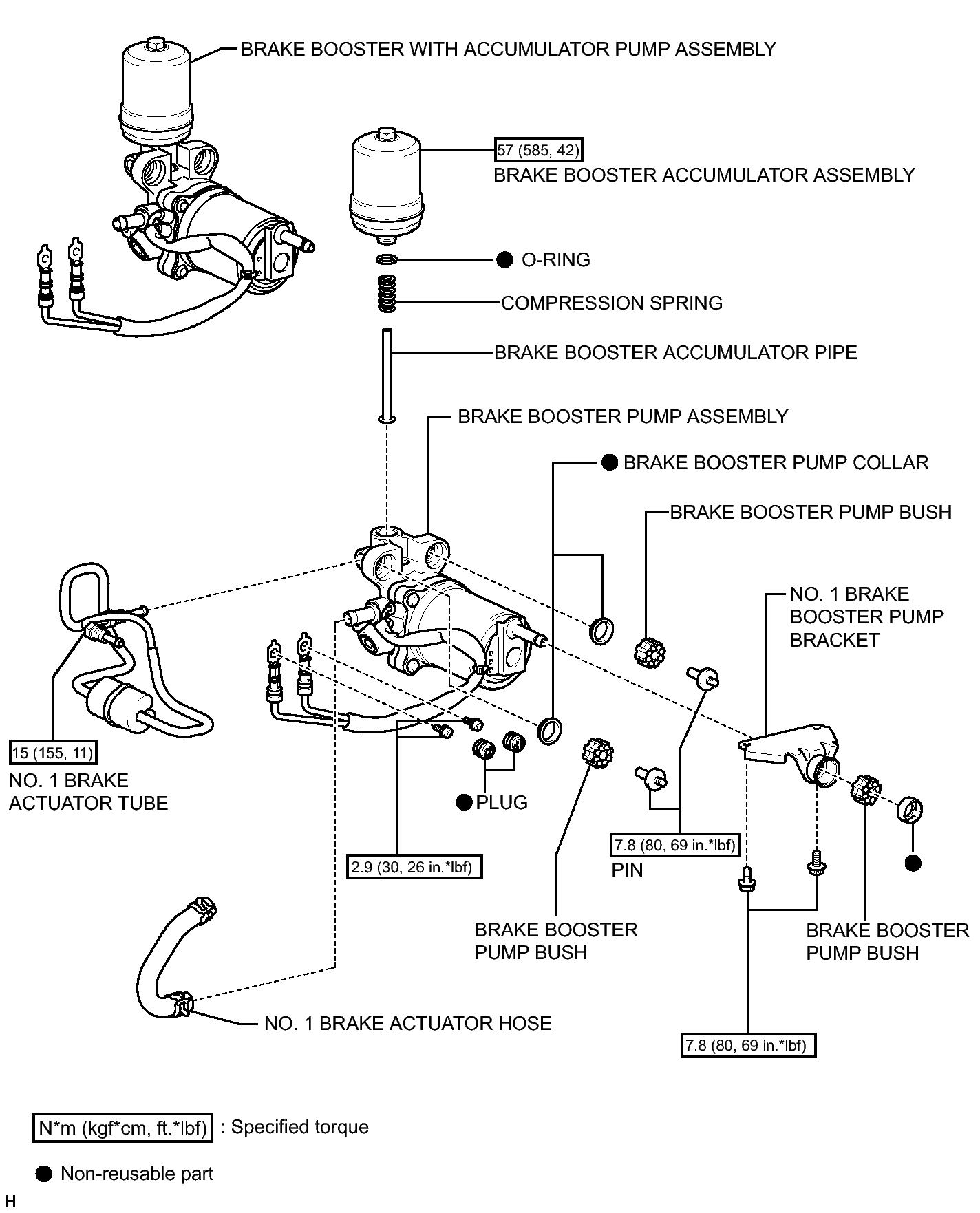

Fig 1: Identifying Hydraulic Brake Booster Replacement Components With Torque Specifications (3 Of 3)
GTY228898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
