Installation [08/2014 - ]

INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
1. Temporarily install the set bolt.
2. Install the hydraulic brake booster. Refer to INSTALLATION [08/2014 - ] .
3. tighten the brake pedal support sub-assembly with the 4 nuts.
  Torque: 14 N*m (145 kgf*cm, 10 ft.*lbf)
4. Tighten the brake pedal support reinforcement set bolt.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
INSTALL PUSH ROD PIN
1. Apply a light coat of lithium soap base glycol grease to the inner surface of the hole in the brake pedal lever.

  Fig 1: Identifying Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Lithium soap base glycol grease
2. Set the master cylinder push rod clevis in place, insert the push rod pin from the left side of the vehicle, and then install a new clip.

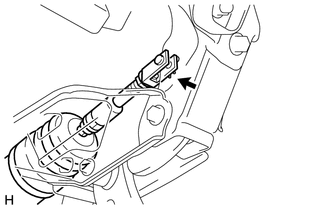

  Fig 2: Identifying Master Cylinder Push Rod Clevis
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE PEDAL RETURN SPRING
1. Apply a light coat of lithium soap base glycol grease to inner surface of the hole in the brake pedal support sub-assembly.
2. Install the brake pedal return spring to the brake pedal support sub-assembly.
INSTALL STOP LIGHT SWITCH ASSEMBLY
1. Install the stop light switch. Refer to INSTALLATION [08/2014 - ] - Step 2 .
2. Connect the stop light switch connector.
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
1. Install the lower No. 1 instrument panel airbag assembly. Refer to INSTALLATION [08/2014 - ] .
CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2014 - ] .
BLEED BRAKE SYSTEM See step 2
CHECK AND ADJUST BRAKE PEDAL
1. Check and adjust brake pedal. Refer to ADJUSTMENT [08/2014 - ] .
