Components [08/2014 - ]: Illustration

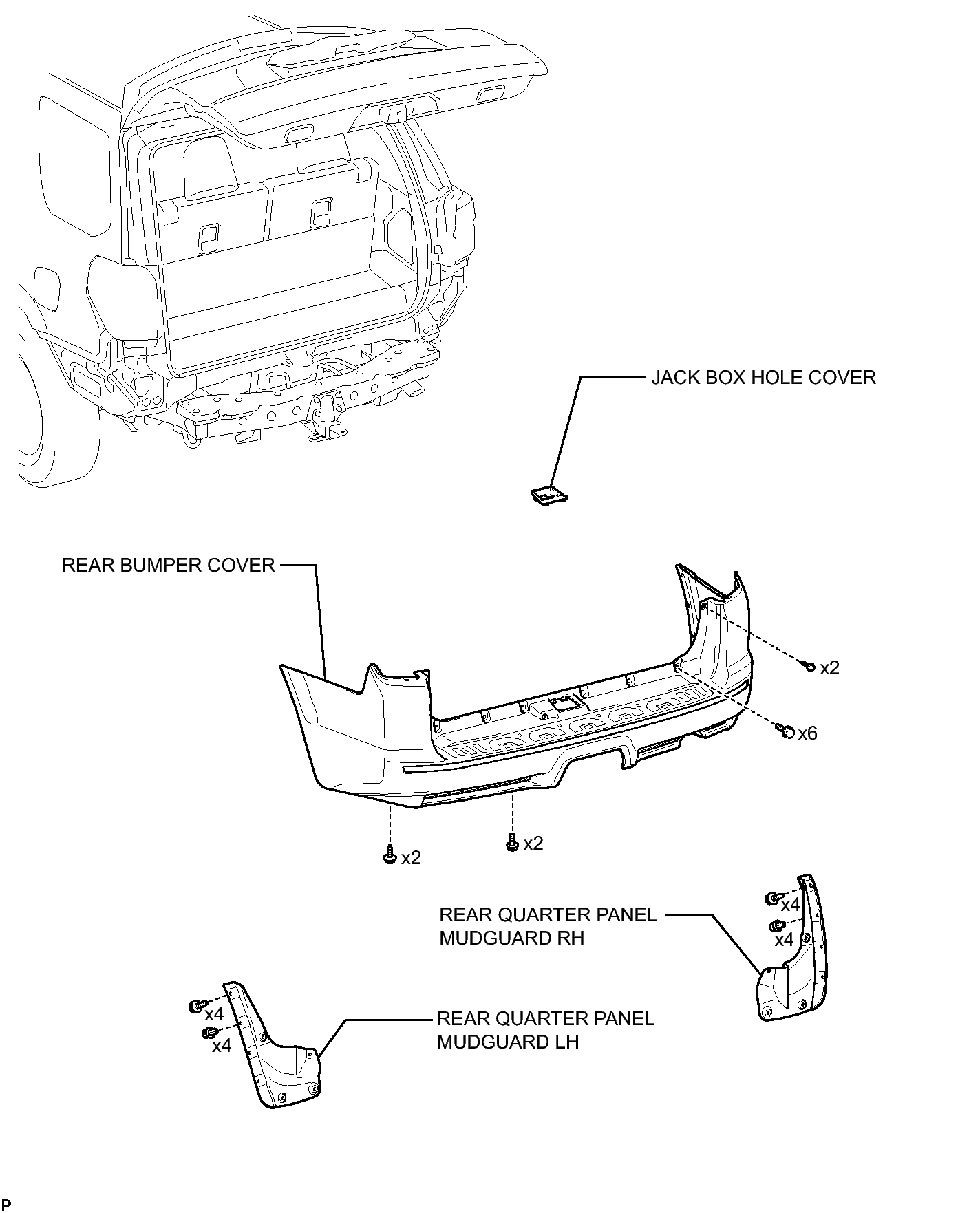

Fig 1: Identifying Ultrasonic Sensor Replacement Components (For Rear - 1 Of 2)
GTY449098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

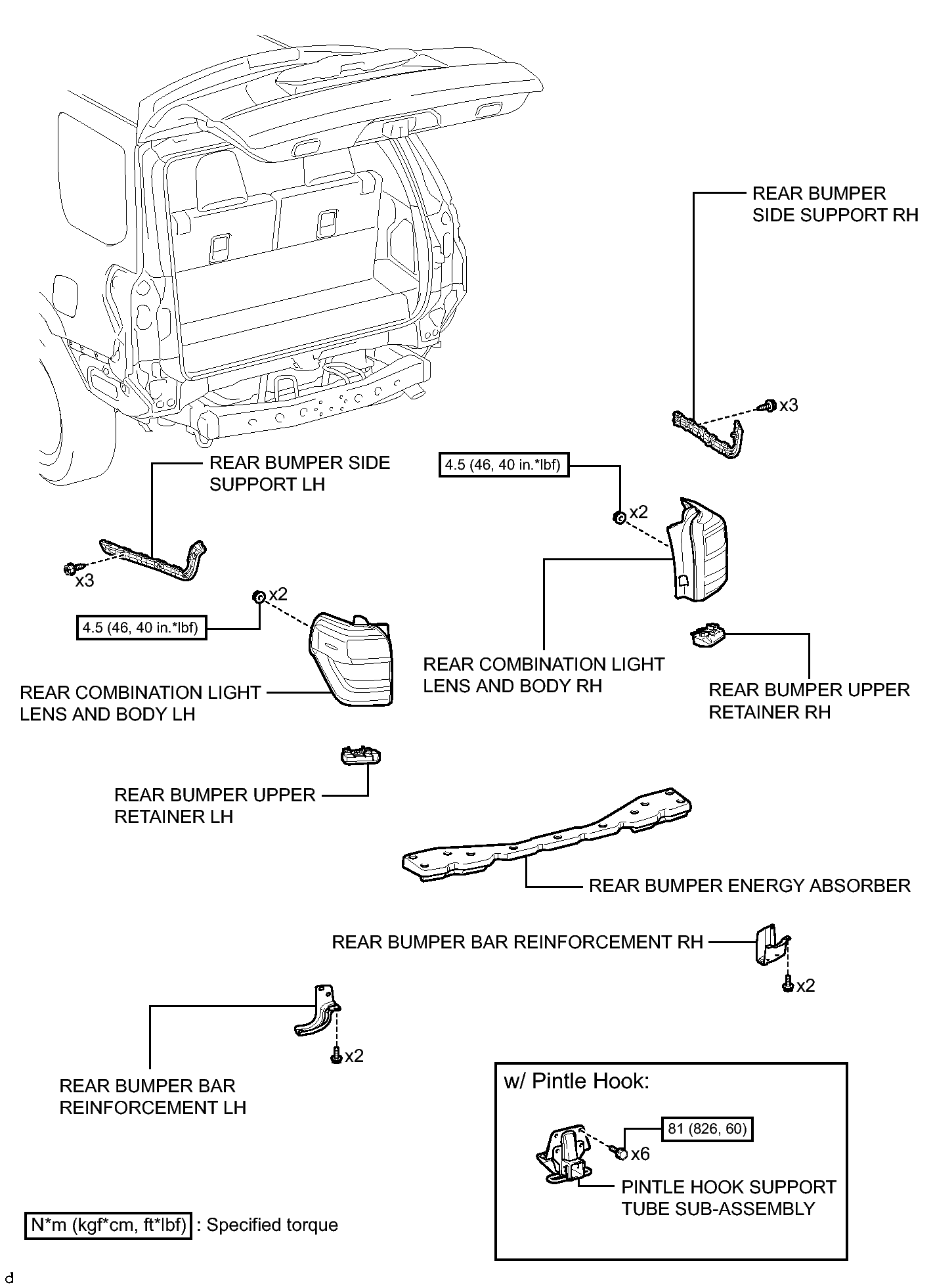

Fig 1: Identifying Rear Bumper (W/ Intuitive Parking Assist System) Replacement Components (2 Of 4)
GTY437154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

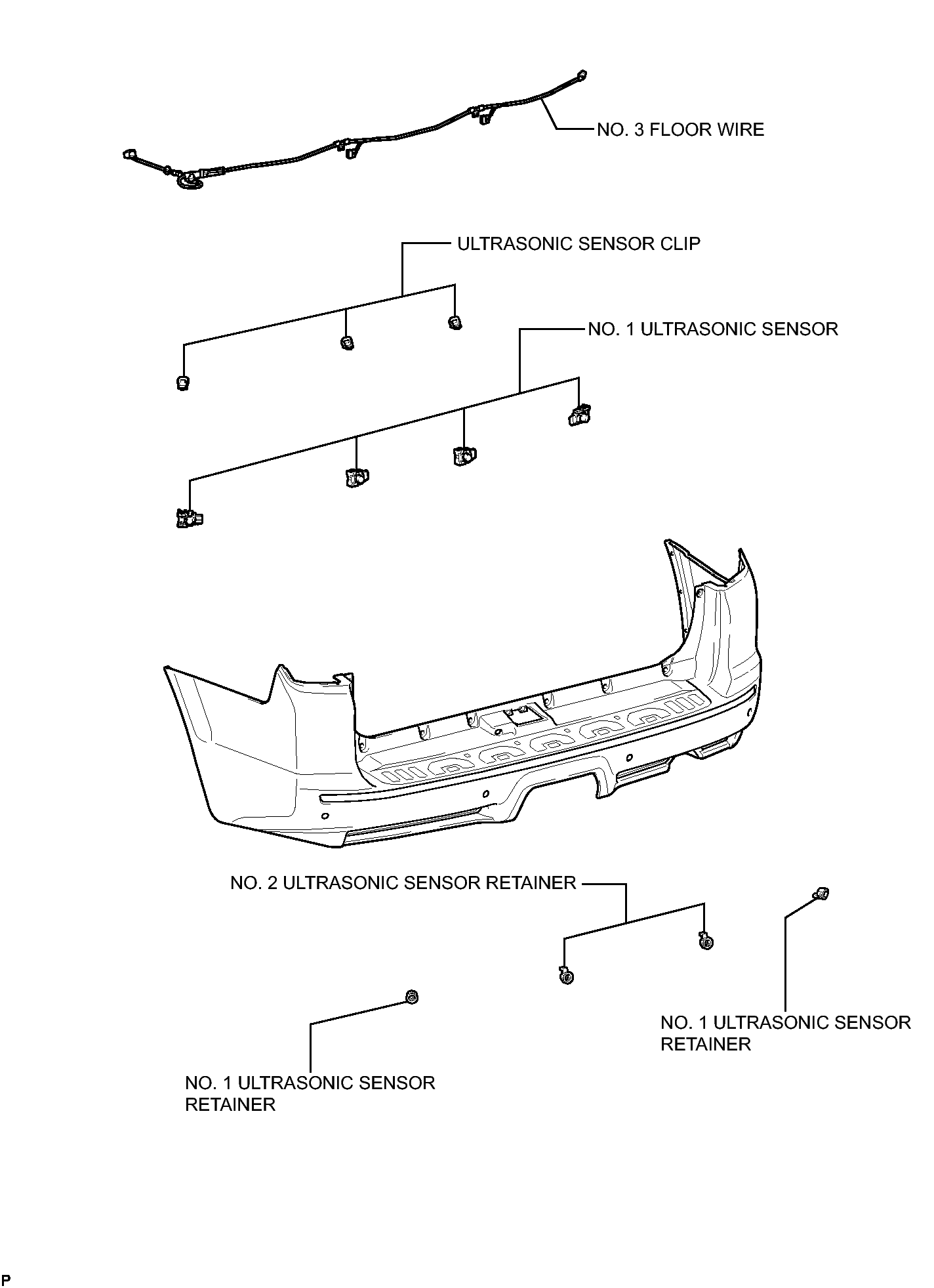

Fig 1: Identifying Rear Bumper (W/ Intuitive Parking Assist System) Replacement Components (3 Of 4)
GTY434159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

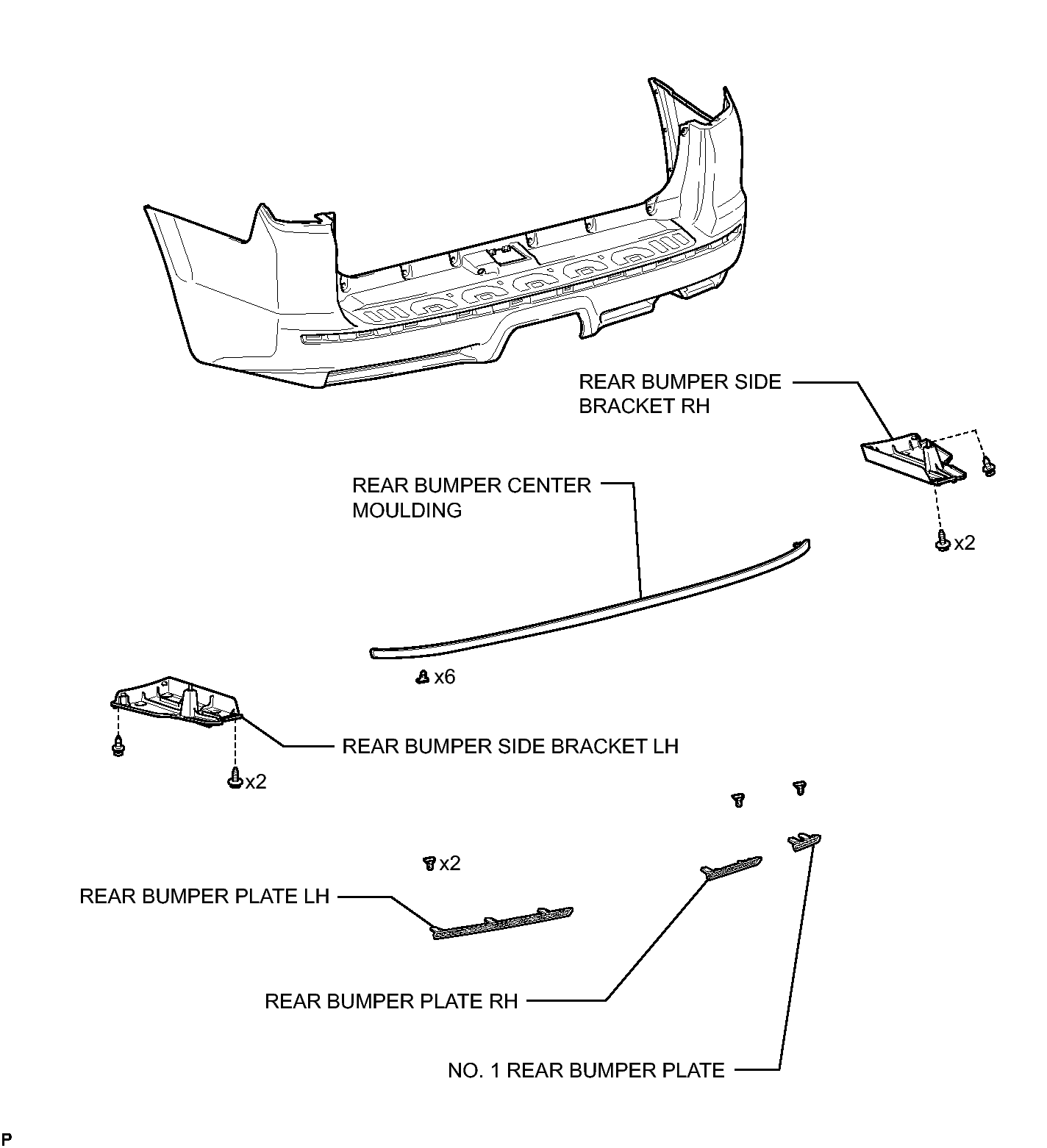

Fig 1: Identifying Rear Bumper (W/ Intuitive Parking Assist System) Replacement Components (4 Of 4)
GTY424087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
