Parts Location [08/2014 - ]: Illustration

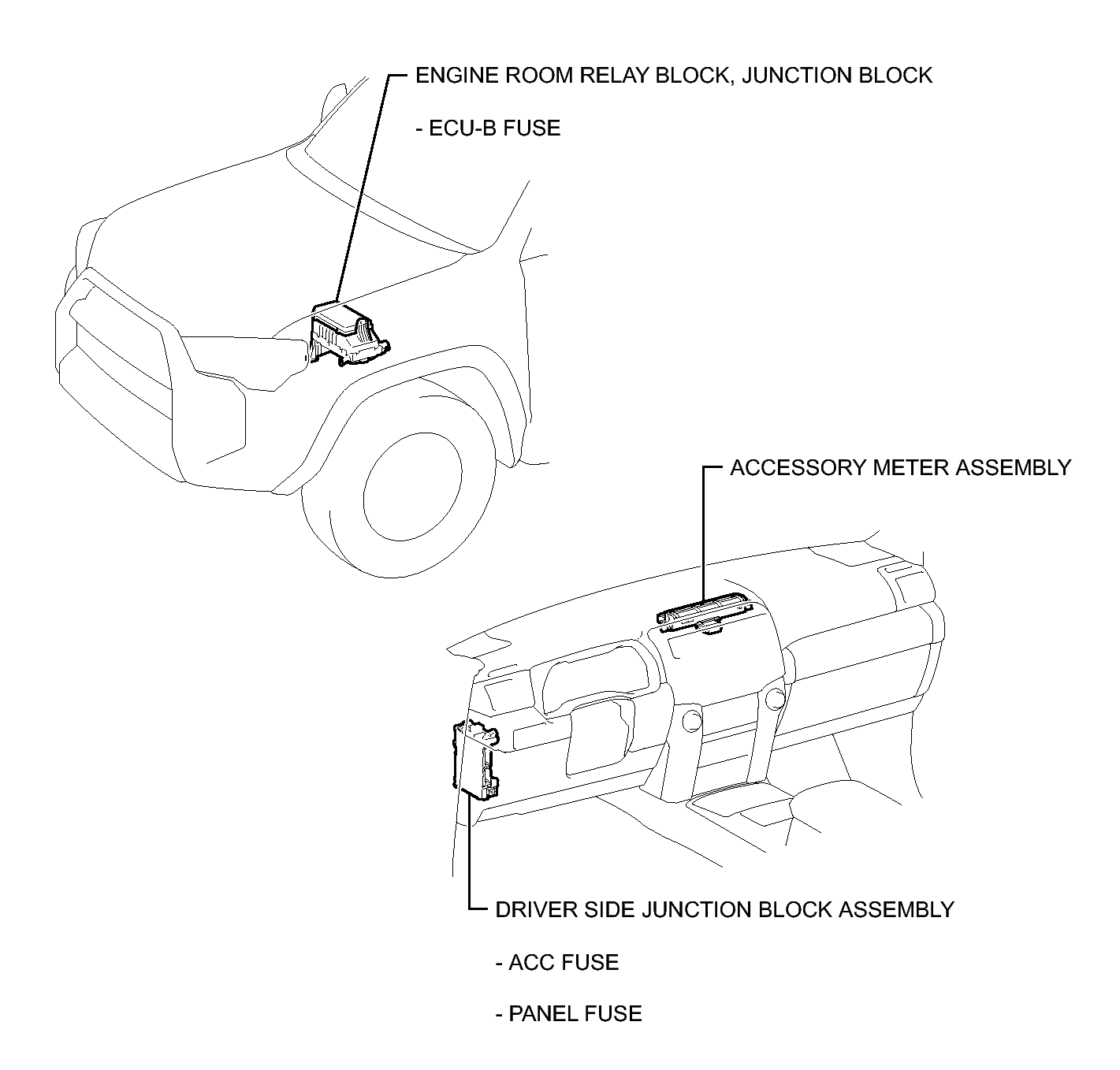

Fig 1: Identifying Clock System Components Location

GTY473655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
