Parts Location [08/2014 - ]: Illustration

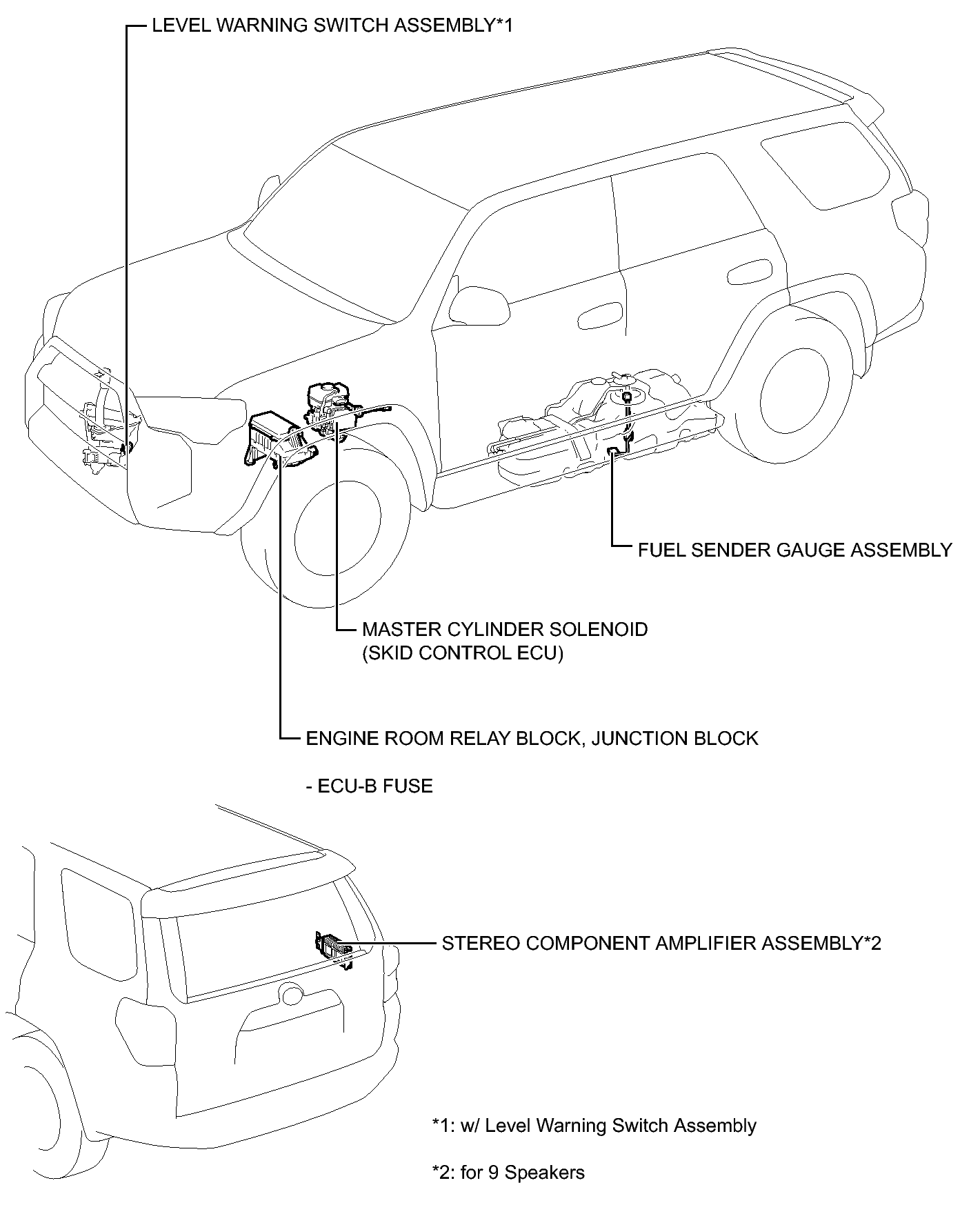

Fig 1: Meter / Gauge System Components Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

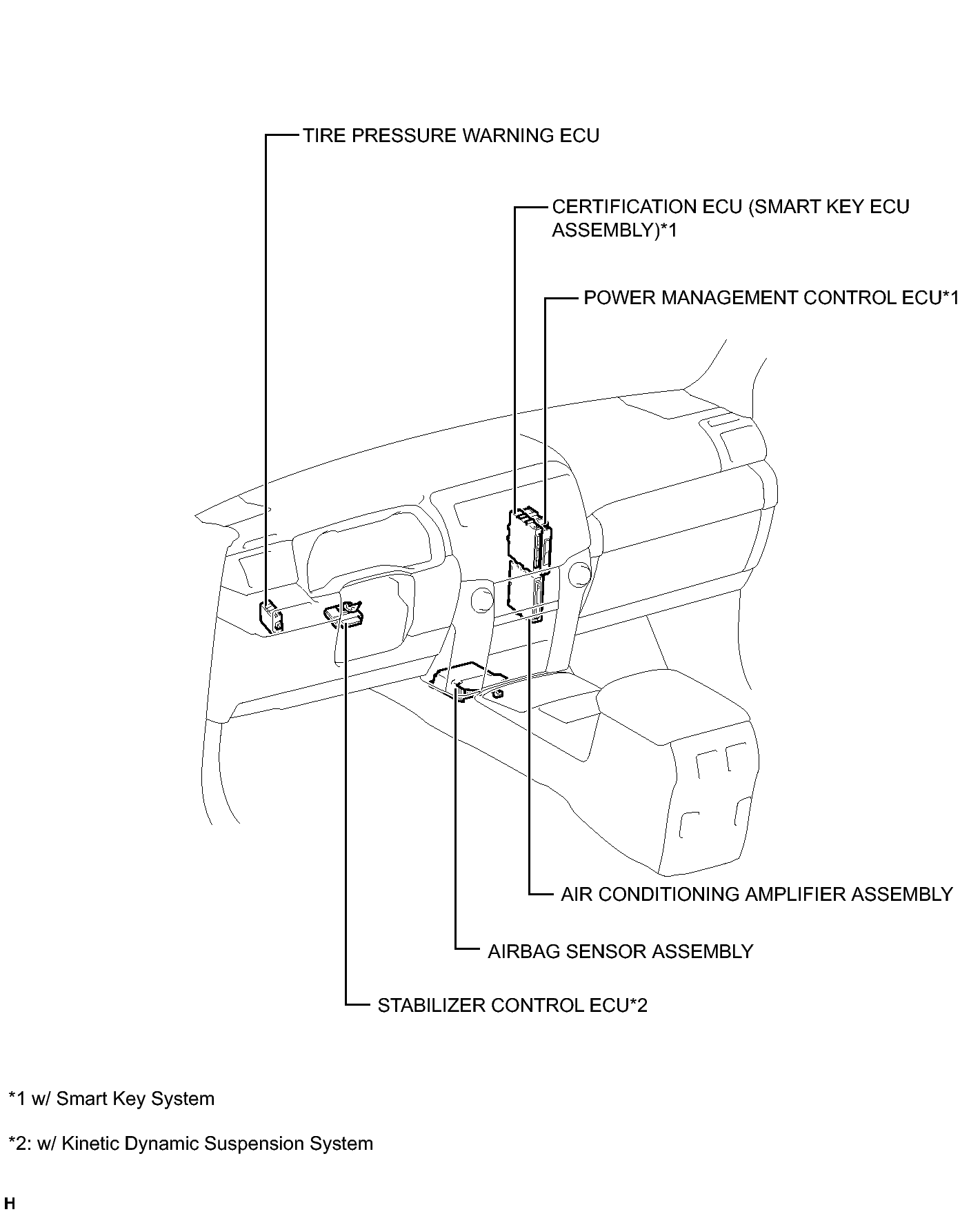

Fig 1: Meter / Gauge System Components Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

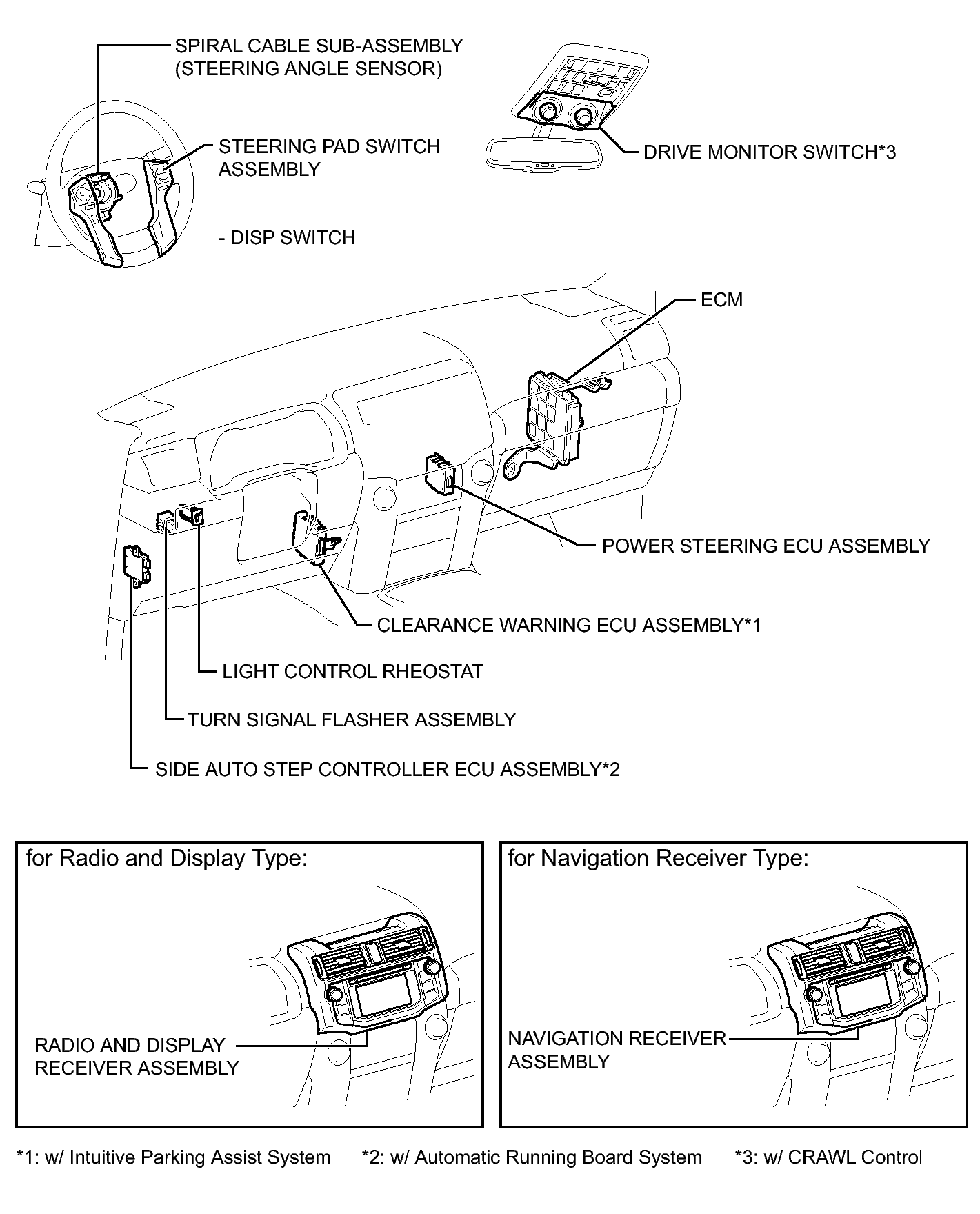

Fig 1: Meter / Gauge System Components Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

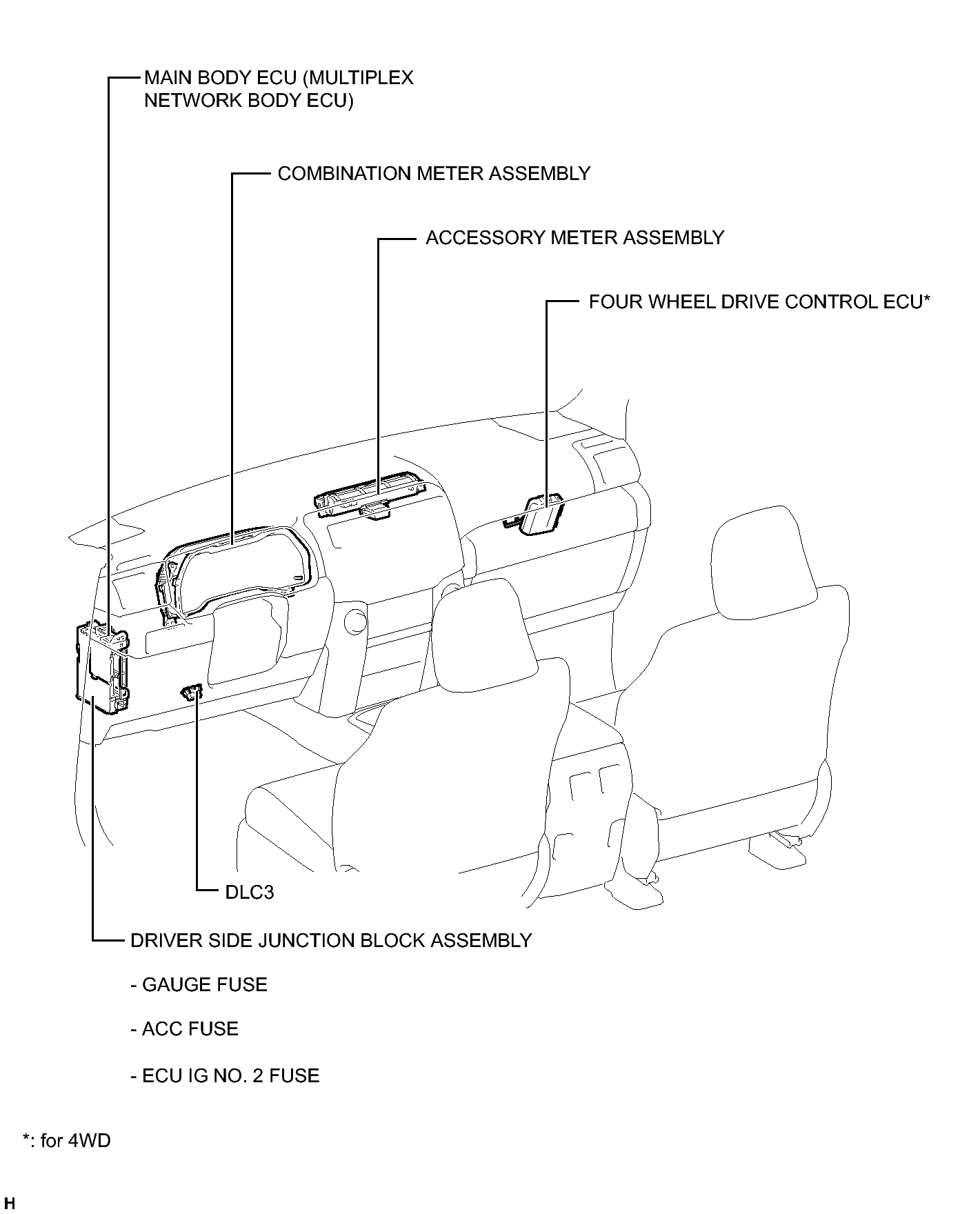

Fig 1: Meter / Gauge System Components Location (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

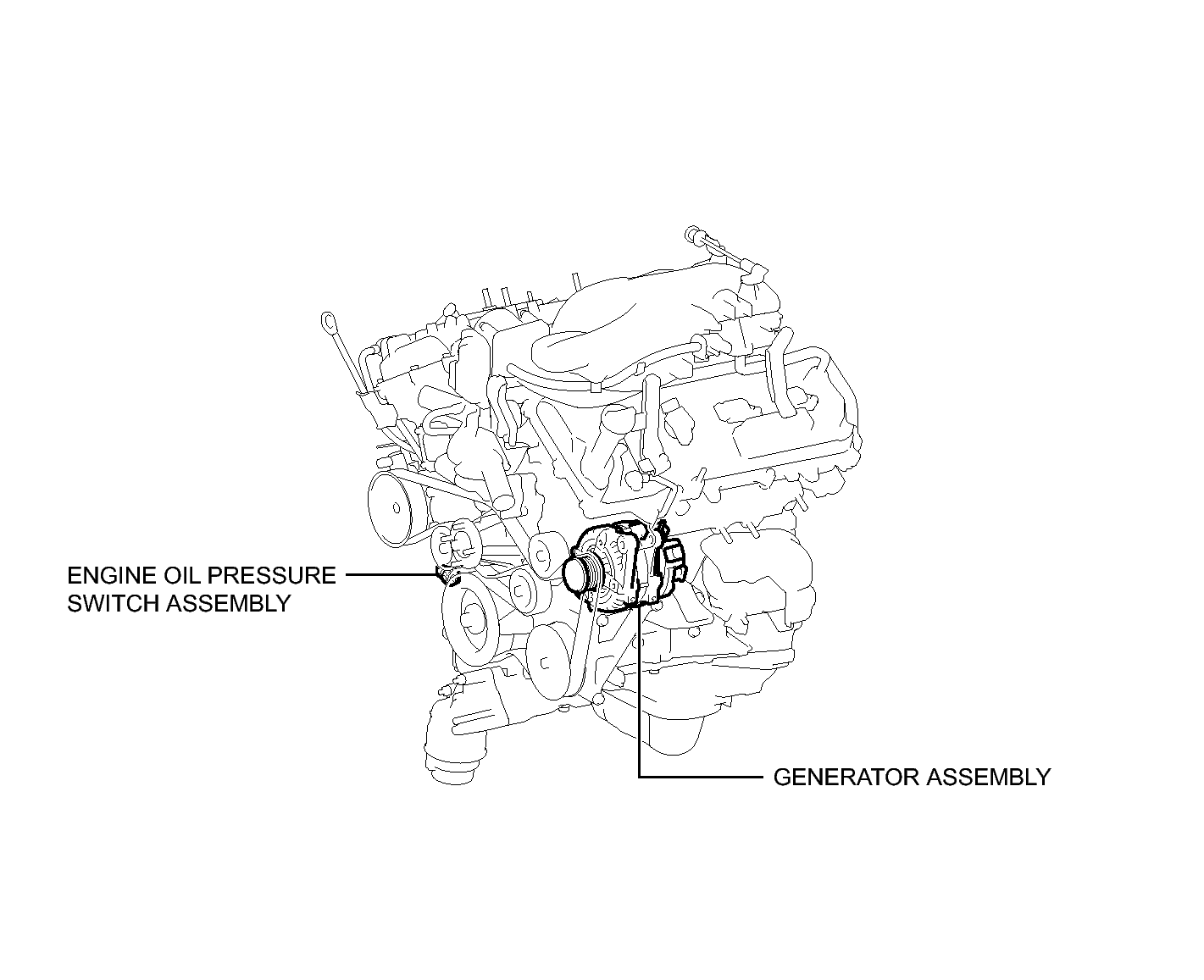

Fig 1: Meter / Gauge System Components Location (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
