Headlight (HI-BEAM) Circuit [08/2014 - ]: Wiring Diagram

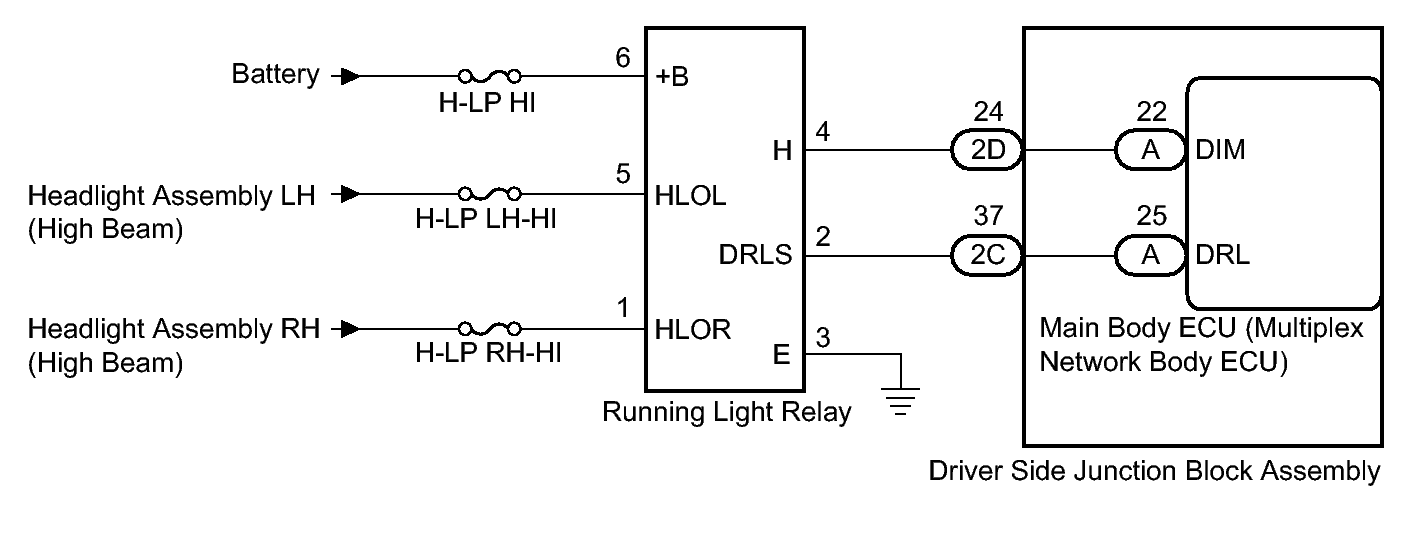

Fig 1: Identifying Headlight (Hi-Beam) Wiring Diagram

GTY433070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
