System Diagram [08/2013 - ]

  1. DIRECT LINE SIGNALS

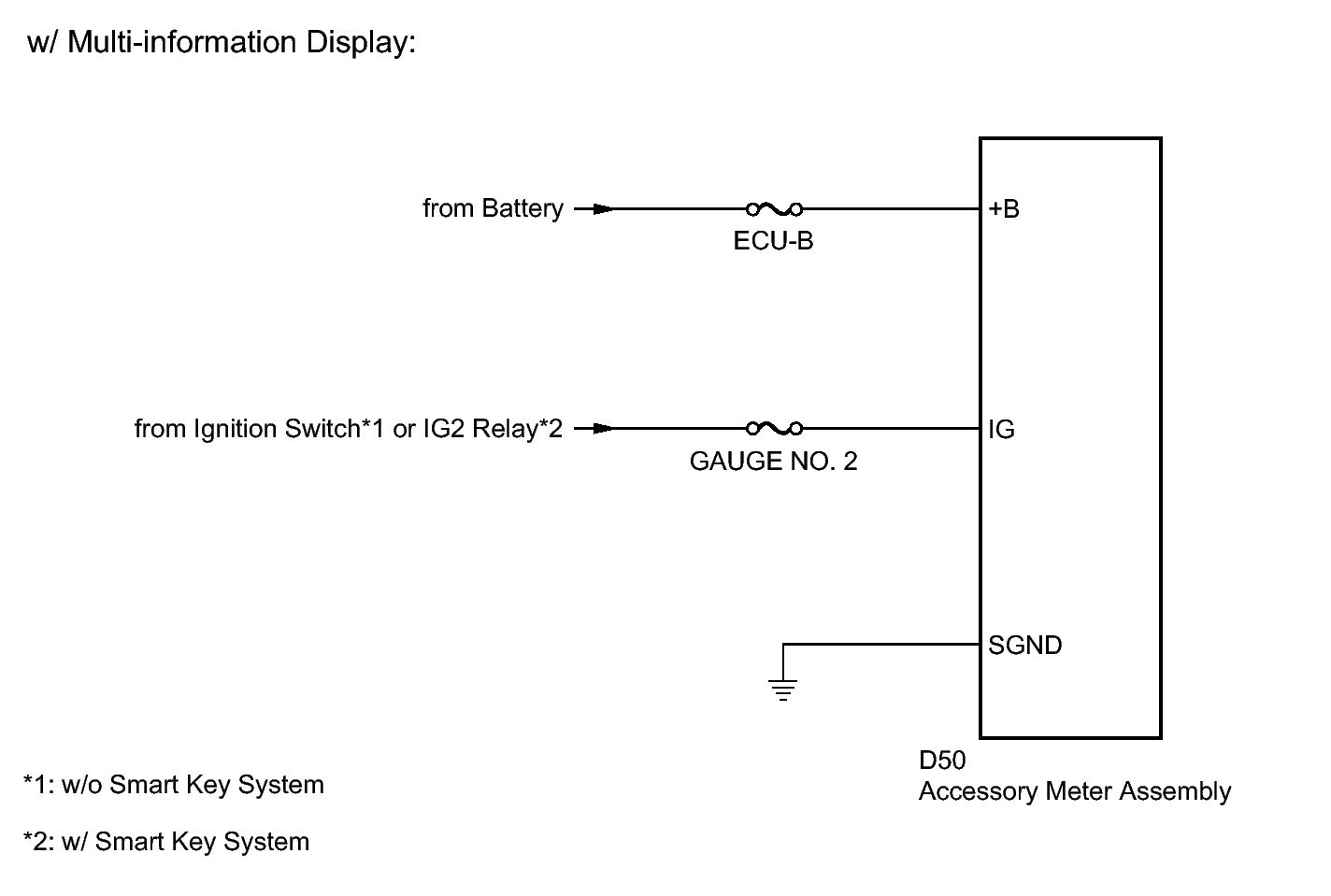

    Fig 1: Clock System Wiring Diagram (w/ Multi-Information Display)
    GTY330376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Clock System Wiring Diagram (w/o Multi-Information Display)
    GTY342059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
