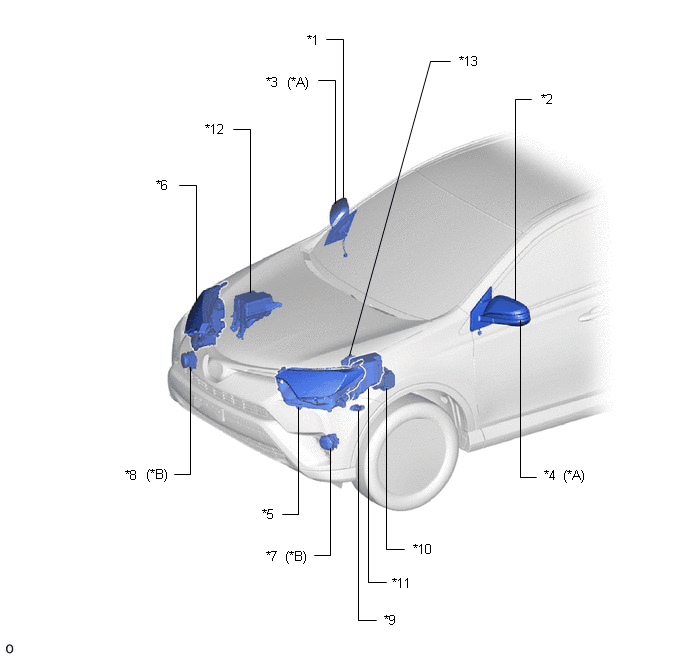

Parts Location [10/2015 - ]: Illustration
| *A | w/ Side Turn Signal Light | *B | w/ Front Fog Light |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | HEADLIGHT UNIT LH | *6 | HEADLIGHT UNIT RH |
| *7 | FOG LIGHT ASSEMBLY LH | *8 | FOG LIGHT ASSEMBLY RH |
| *9 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *10 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *11 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - H-LP RELAY (for LED Headlight) - RUNNING LIGHT RELAY (for Halogen Headlight) - DIMMER RELAY - H-LP LH-LO FUSE - H-LP RH-LO FUSE - H-LP LH-HI FUSE - H-LP RH-HI FUSE - ECU-B NO. 1 FUSE - ECU-B NO. 2 FUSE - H-LP MAIN FUSE - TURN&HAZ FUSE |
*12 | NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - STOP LP RELAY (for Halogen Headlight) - FOG FR RELAY (w/ Front Fog Headlight) - DRL RELAY (for LED Headlight) - FOG FR FUSE (w/ Front Fog Light) - DRL FUSE (for LED Headlight) |
| *13 | ECM | - | - |

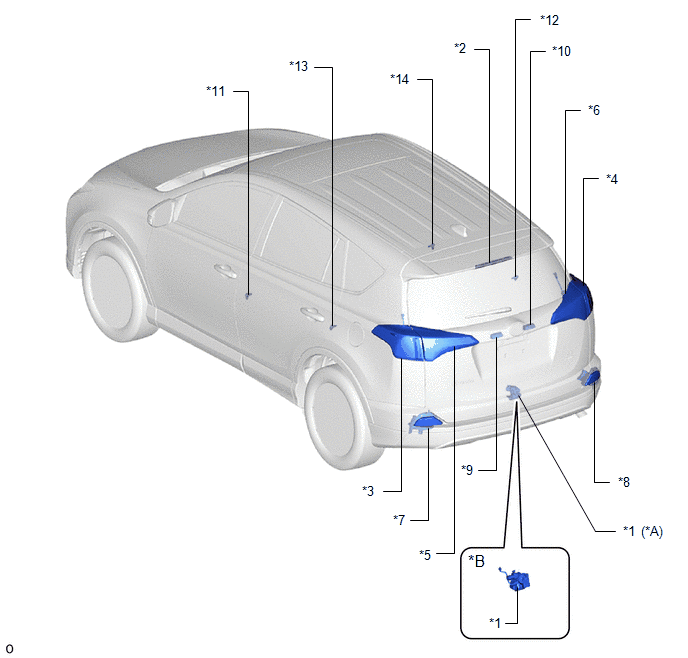

| *A | w/o Power Back Door System | *B | w/ Power Back Door System |
| *1 | BACK DOOR LOCK ASSEMBLY - BACK DOOR COURTESY LIGHT SWITCH |
*2 | CENTER STOP LIGHT ASSEMBLY |
| *3 | REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
*4 | REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *5 | REAR LIGHT LENS AND BODY LH | *6 | REAR LIGHT LENS AND BODY RH |
| *7 | BACK LIGHT LENS AND BODY LH | *8 | BACK LIGHT LENS AND BODY RH |
| *9 | LICENSE PLATE LIGHT ASSEMBLY LH | *10 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *11 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *12 | REAR DOOR COURTESY LIGHT ASSEMBLY RH |
| *13 | REAR DOOR COURTESY LIGHT ASSEMBLY LH | *14 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |

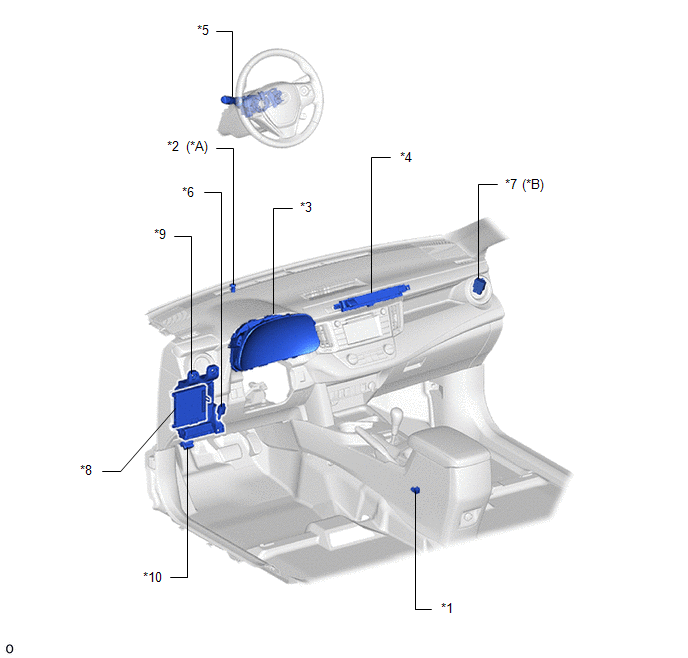

| *A | w/ Automatic Light Control System | *B | for LED Headlight |
| *1 | PARKING BRAKE SWITCH ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | COMBINATION METER ASSEMBLY | *4 | TELLTALE LIGHT ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
| *5 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | STOP LIGHT CONTROL ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY TAIL RELAY ACC RELAY IG1 NO. 1 RELAY ACC FUSE STOP FUSE ECU-IG NO. 2 FUSE TAIL FUSE METER FUSE GAUGE FUSE |
*10 | DLC3 |
