Components [12/2012 - ]: Illustration

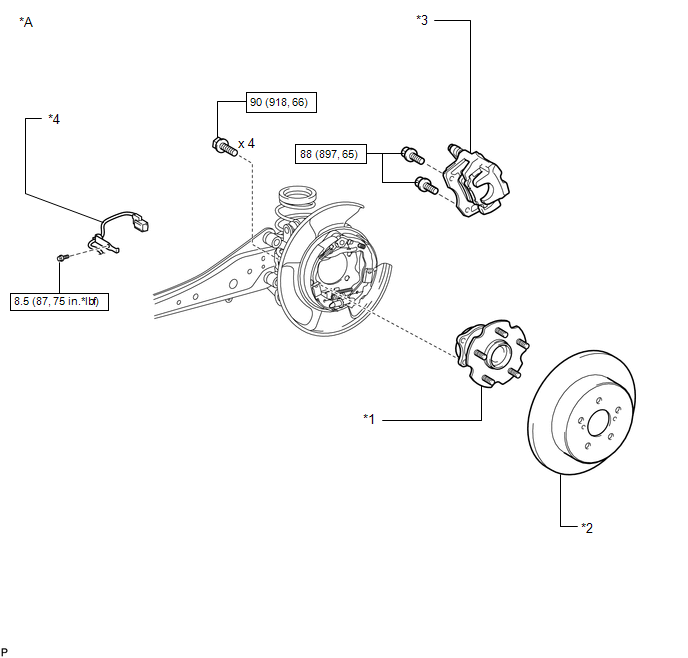

Fig 1: Rear Suspension Member Components With Torque Specifications (1 Of 8) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	REAR AXLE HUB AND BEARING ASSEMBLY LH	*2	REAR DISC
*3	REAR DISC BRAKE CALIPER ASSEMBLY LH	*4	SKID CONTROL SENSOR WIRE LH
	Specified torque: Nm (kgfcm, ft.*lbf)	-	-

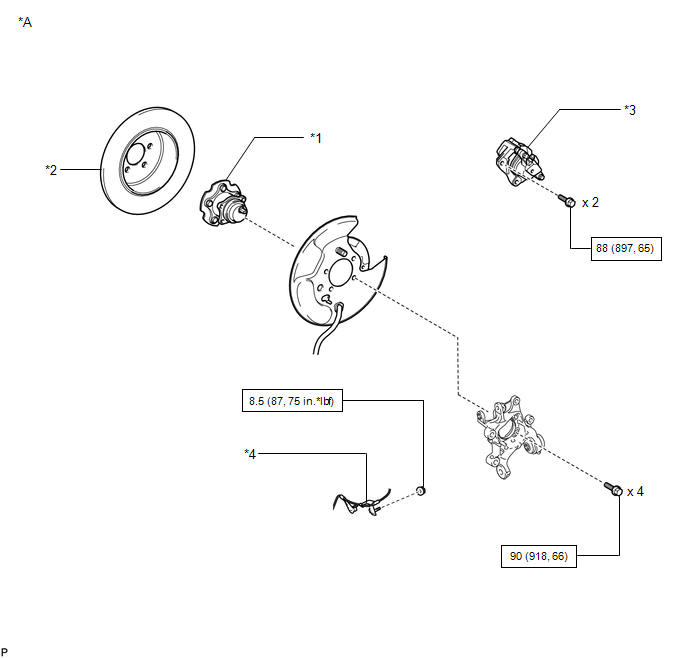

Fig 1: Rear Suspension Member Components With Torque Specifications (2 Of 8) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	REAR AXLE HUB AND BEARING ASSEMBLY RH	*2	REAR DISC
*3	REAR DISC BRAKE CALIPER ASSEMBLY RH	*4	SKID CONTROL SENSOR WIRE RH
	Specified torque: Nm (kgfcm, ft.*lbf)	-	-

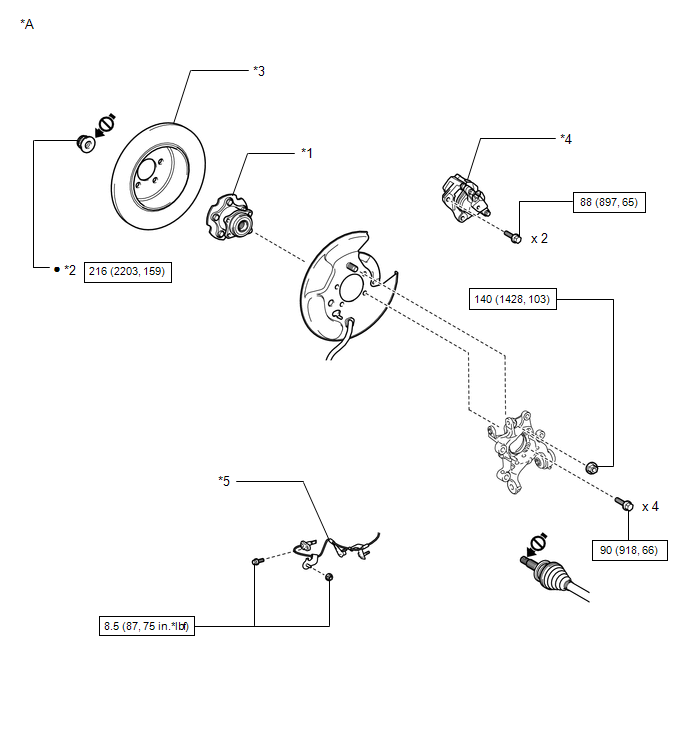

Fig 1: Rear Suspension Member Components With Torque Specifications (3 Of 8) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	REAR AXLE HUB AND BEARING ASSEMBLY LH	*2	REAR AXLE SHAFT NUT LH
*3	REAR DISC	*4	REAR DISC BRAKE CALIPER ASSEMBLY LH
*5	REAR SPEED SENSOR LH	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Do not apply lubricants to the threaded parts	-	-

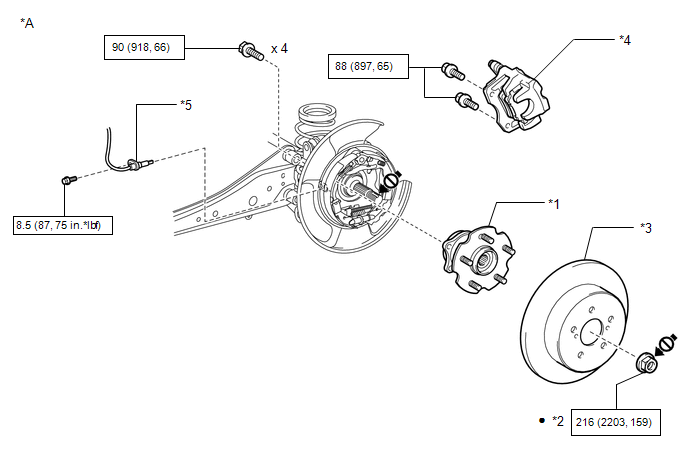

Fig 1: Rear Axle Hub And Related Components With Torque Specifications (4 Of 8) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	REAR AXLE HUB AND BEARING ASSEMBLY RH	*2	REAR AXLE SHAFT NUT RH
*3	REAR DISC	*4	REAR DISC BRAKE CALIPER ASSEMBLY RH
*5	REAR SPEED SENSOR RH	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Do not apply lubricants to the threaded parts	-	-

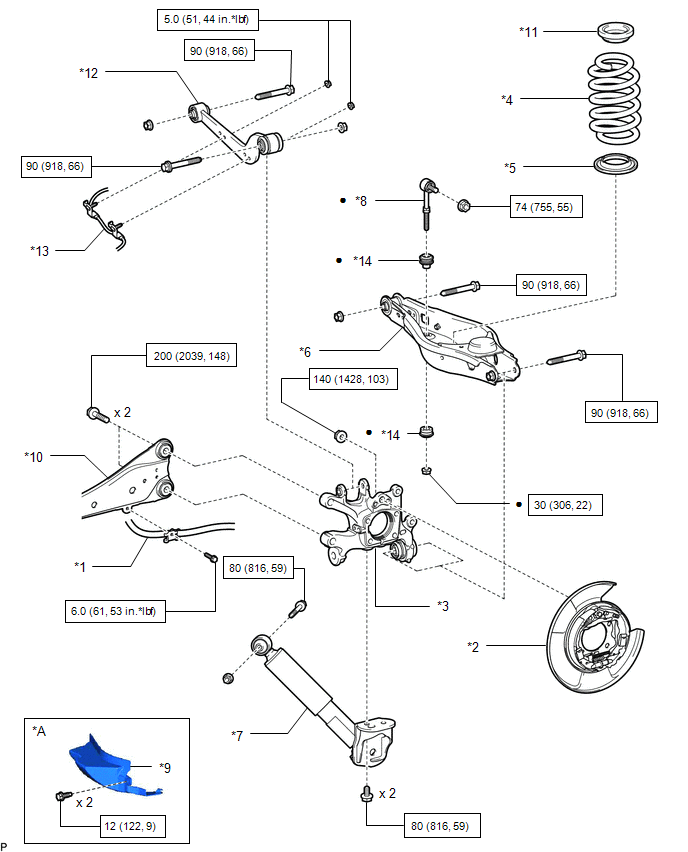

Fig 1: Rear Suspension Member Components With Torque Specifications (5 Of 8) [12/2012 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	NO. 3 PARKING BRAKE CABLE ASSEMBLY	*2	PARKING BRAKE ASSEMBLY
*3	REAR AXLE CARRIER SUB-ASSEMBLY LH	*4	REAR COIL SPRING LH
*5	REAR LOWER COIL SPRING INSULATOR LH	*6	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
*7	REAR SHOCK ABSORBER ASSEMBLY LH	*8	REAR STABILIZER LINK ASSEMBLY LH
*9	REAR SUSPENSION ARM COVER LH	*10	REAR TRAILING ARM ASSEMBLY LH
*11	REAR UPPER COIL SPRING INSULATOR LH	*12	REAR UPPER CONTROL ARM ASSEMBLY LH
*13	SKID CONTROL SENSOR WIRE LH	*14	REAR STABILIZER CUSHION
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part

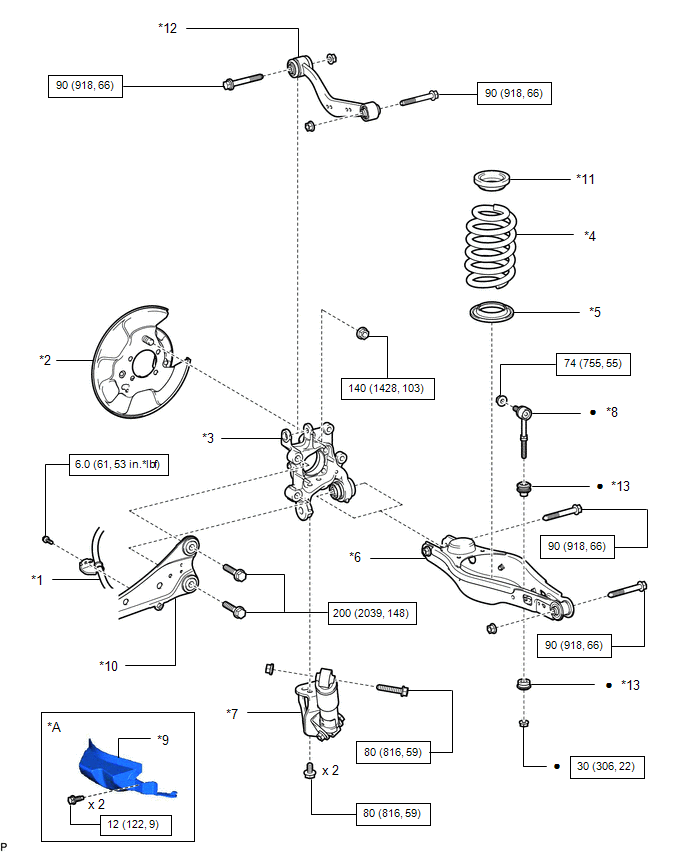

Fig 1: Rear Suspension Member Components With Torque Specifications (6 Of 8) [12/2012 - ]

Callout	Description	Callout	Description
*A	w/ Cover	-	-
*1	NO. 2 PARKING BRAKE CABLE ASSEMBLY	*2	PARKING BRAKE ASSEMBLY
*3	REAR AXLE CARRIER SUB-ASSEMBLY RH	*4	REAR COIL SPRING RH
*5	REAR LOWER COIL SPRING INSULATOR RH	*6	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
*7	REAR SHOCK ABSORBER ASSEMBLY RH	*8	REAR STABILIZER LINK ASSEMBLY RH
*9	REAR SUSPENSION ARM COVER RH	*10	REAR TRAILING ARM ASSEMBLY RH
*11	REAR UPPER COIL SPRING INSULATOR RH	*12	REAR UPPER CONTROL ARM ASSEMBLY RH
*13	REAR STABILIZER CUSHION	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part

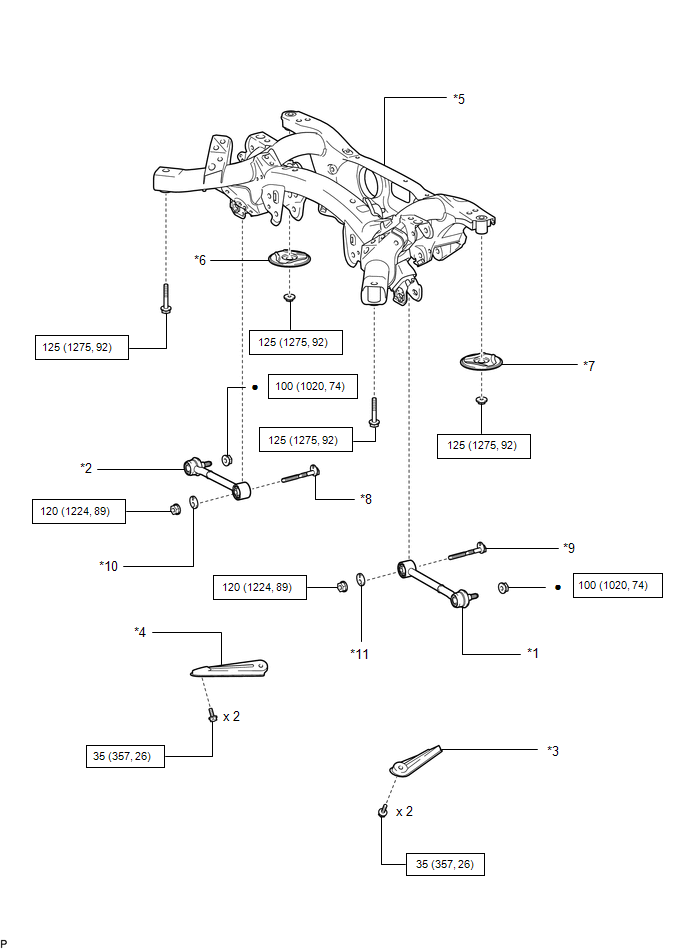

Fig 1: Rear Suspension Member Components With Torque Specifications (7 Of 8) [12/2012 - ]

Callout	Description	Callout	Description
*1	REAR NO. 1 SUSPENSION ARM ASSEMBLY LH	*2	REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
*3	REAR SUSPENSION MEMBER BRACE LH	*4	REAR SUSPENSION MEMBER BRACE RH
*5	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*6	REAR UPPER BODY MOUNTING CUSHION SUB-ASSEMBLY
*7	REAR UPPER BODY MOUNTING CUSHION SUB-ASSEMBLY	*8	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*9	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	*10	NO. 2 CAMBER ADJUST CAM
*11	NO. 2 CAMBER ADJUST CAM	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	•	Non-reusable part

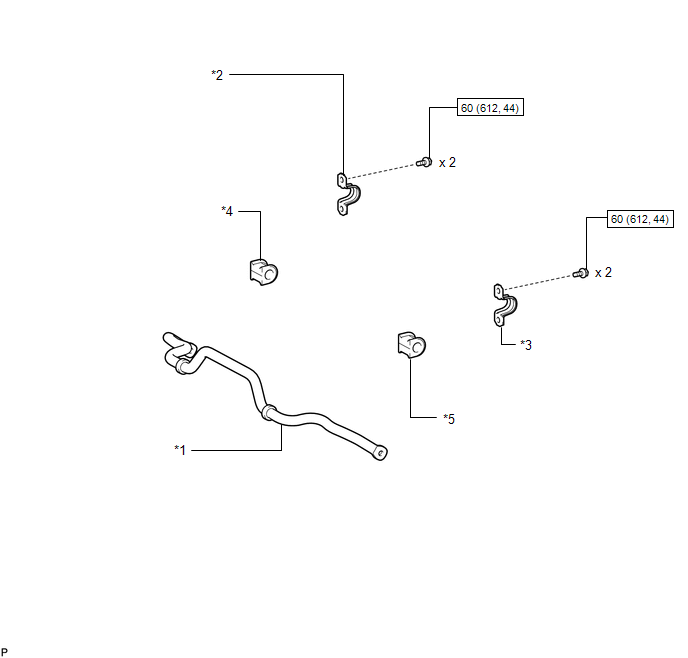

Fig 1: Rear Suspension Member Components With Torque Specifications (8 Of 8) [12/2012 - ]

Callout	Description	Callout	Description
*1	REAR STABILIZER BAR	*2	REAR NO. 1 STABILIZER BAR BRACKET
*3	REAR NO. 1 STABILIZER BAR BRACKET	*4	REAR STABILIZER BUSHING
*5	REAR STABILIZER BUSHING	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	-	-
