System Diagram [10/2015 - 08/2016]

  1. CAN SIGNAL

    Refer to SYSTEM DIAGRAM [10/2015 - ]

  2. DIRECT LINE SIGNAL

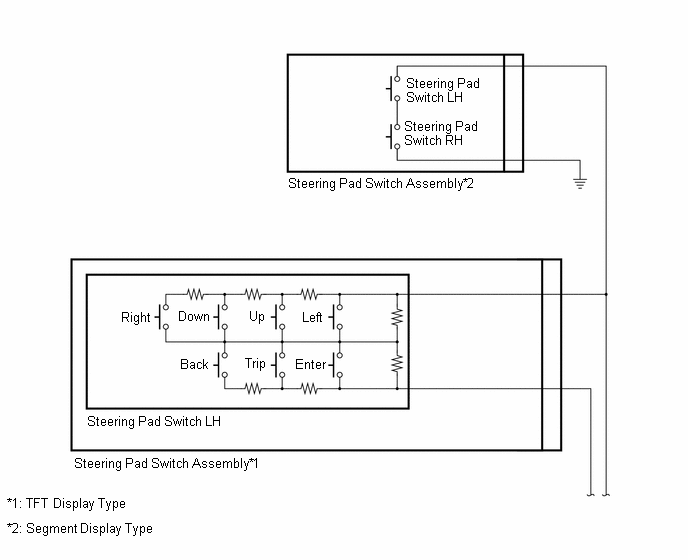

    Fig 1: Meter / Gauge System Diagram (1 Of 5)
    GTY599421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

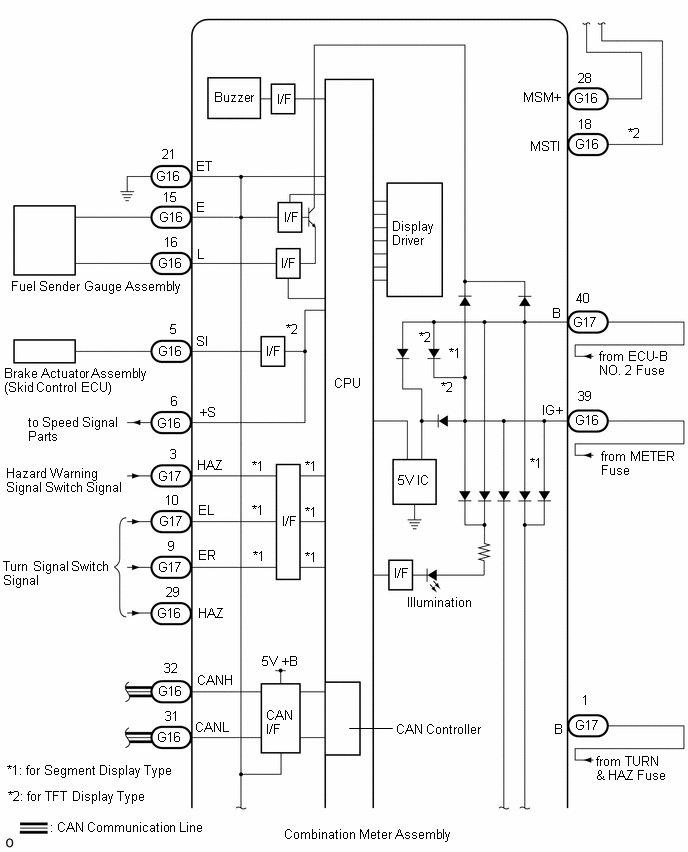

    Fig 2: Meter / Gauge System Diagram (2 Of 5)
    GTY550119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

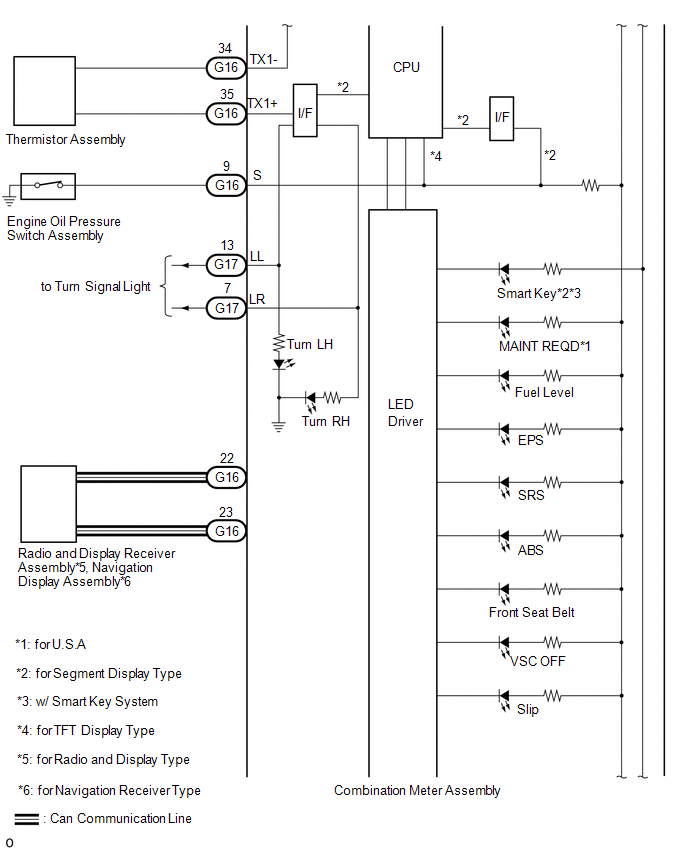

    Fig 3: Meter / Gauge System Diagram (3 Of 5)
    GTY557447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

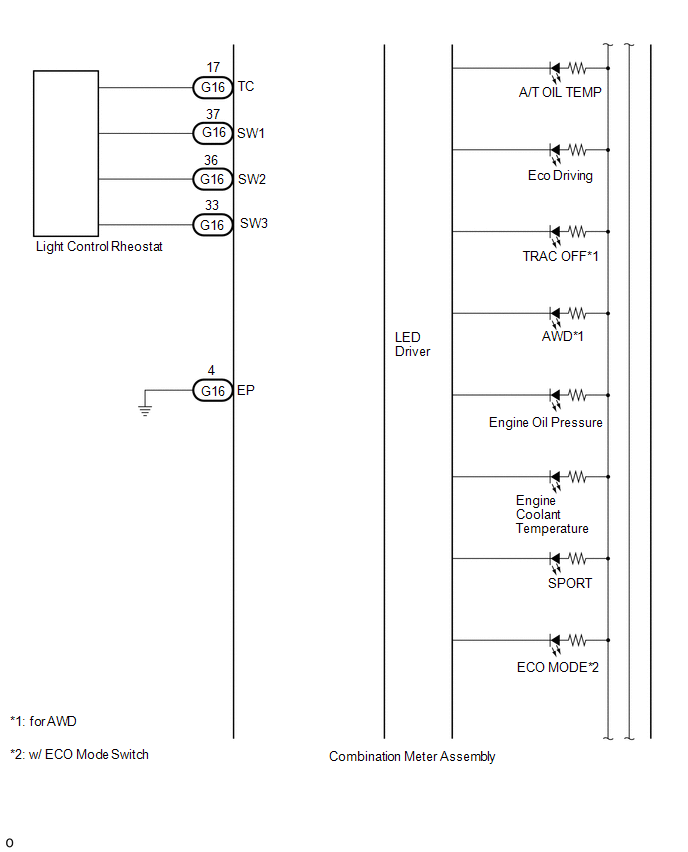

    Fig 4: Meter / Gauge System Diagram (4 Of 5)
    GTY580804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

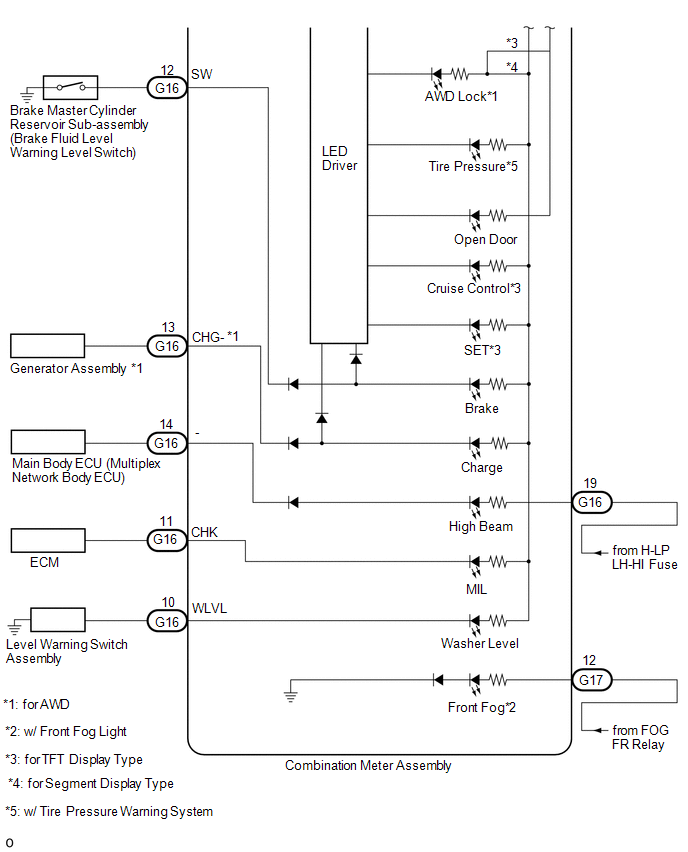

    Fig 5: Meter / Gauge System Diagram (5 Of 5)
    GTY587436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
