Removal [12/2012 - ]: Procedure

Refer to PROCEDURE - Step 6

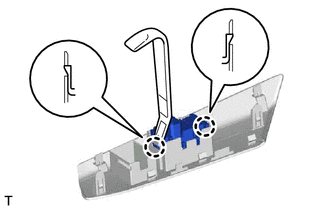

1. Using moulding remover A, detach the 2 claws and remove the power window regulator switch assembly from the front upper armrest base panel RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful when detaching the claws as the switch may fall and become damaged.
