Disassembly [12/2012 - 08/2016]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
  2. REMOVE REAR SEAT COVER CAP RH
    1. Using a screwdriver, detach the 3 claws to remove the rear seat cover cap RH.

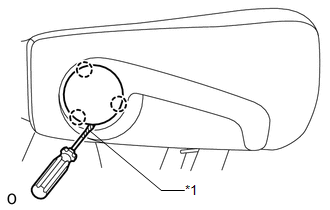

      GTY373219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH
    1. Remove the 3 screws and reclining adjuster release handle RH.
      GTY364882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT NO. 1 CUSHION HINGE COVER
    1. Using a screwdriver, detach the 4 claws and clamp to remove the rear seat No. 1 cushion hinge cover.

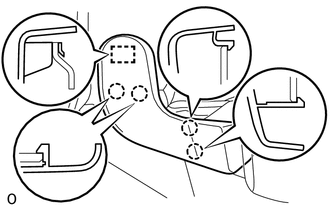

      GTY381529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT NO. 2 CUSHION HINGE COVER
    1. Detach the clamp.
      GTY381494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 4 claws and clamp to remove the rear seat No. 2 cushion hinge cover.

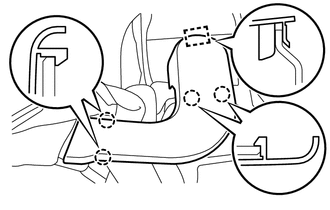

      GTY363033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 SEAT CUSHION ASSEMBLY RH
    1. Remove the 2 bolts and 2 bushes and then lift up the cushion as shown in the illustration.
      GTY363248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp of the cable end.
      GTY378030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the cable in the order shown in the illustration.
    4. Remove the 3 clamps.

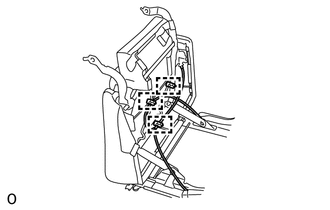

      GTY363057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the 2 claws to remove the rear seatback cover.
      GTY371826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    6. Remove the 2 bolts, 2 bushes and No. 1 seat cushion assembly RH.

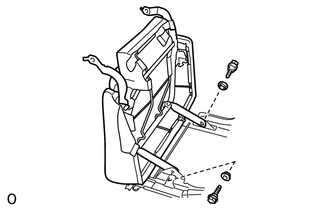

      GTY363060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER
    1. Detach the 18 hooks and remove the separate type rear seat cushion cover (with pad) from the rear seat cushion frame sub-assembly RH.

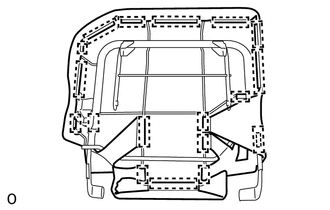

      GTY363064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog ring.
      GTY363063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 13 hog rings and separate type rear seat cushion cover from the rear seat cushion pad RH.
      GTY363067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEATBACK COVER RH
    1. Remove the clip and screw.
      GTY363071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw to remove the rear seatback cover RH.
  9. REMOVE REAR SEAT COVER
    1. Remove the clip and screw.

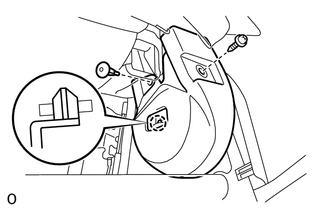

      GTY363070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw to remove the rear seat cover.
  10. REMOVE REAR SEAT CUSHION MOULDING RH
    1. Using a screwdriver, detach the claw and 2 clamps to remove the rear seat cushion moulding RH.

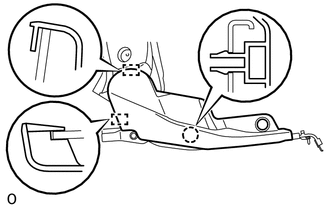

      GTY363065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEAT REAR CUSHION MOULDING RH
    1. w/ Seat belt warning system:

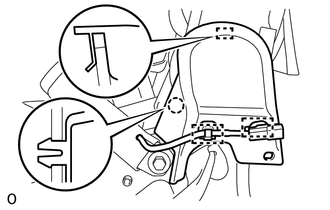

      GTY363072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clamps.

    2. Detach the claw and clamp to remove the rear seat rear cushion moulding RH.
  12. REMOVE NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY
    1. Detach the 2 clamps of the cable ends.

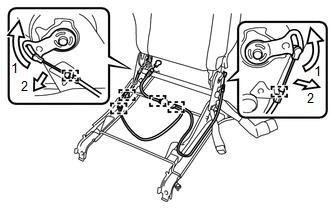

      GTY374289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 cables in the order shown in the illustration.
    3. Detach the 4 clamps to remove the No. 2 seat adjuster control cable assembly.
  13. REMOVE REAR SEAT CENTER LAP TYPE BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  14. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  15. REMOVE NO. 1 SEATBACK ASSEMBLY RH
    1. Remove the 2 bolts and No. 1 seatback assembly RH from the rear seat reclining adjuster assembly RH.
      GTY363026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SEATBACK BOARD RH
    1. Remove the 4 hog rings and detach the 2 pieces of fastening tape.
      GTY363024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 5 claws and clamp to remove the rear seatback board RH.
      GTY363025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT HEADREST SUPPORT
    1. Detach the 4 claws to remove the 2 rear seat headrest supports.
      GTY381492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SEPARATE TYPE REAR SEATBACK COVER
    1. Detach the 2 clamps and remove the separate type rear seatback cover (with pad) from the rear seat cushion frame sub-assembly RH.

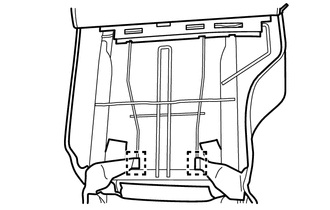

      GTY363023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

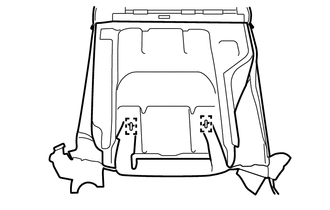

    2. GTY363031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 hog rings.

    3. Remove the 11 hog rings and separate type rear seatback cover from the rear seat cushion pad RH.
      GTY363032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
