Components [09/2013 - ]: Illustration

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (1 Of 6)
GTY372650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (2 Of 6)
GTY372666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (3 Of 6)
GTY384257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (4 Of 6)
GTY362851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

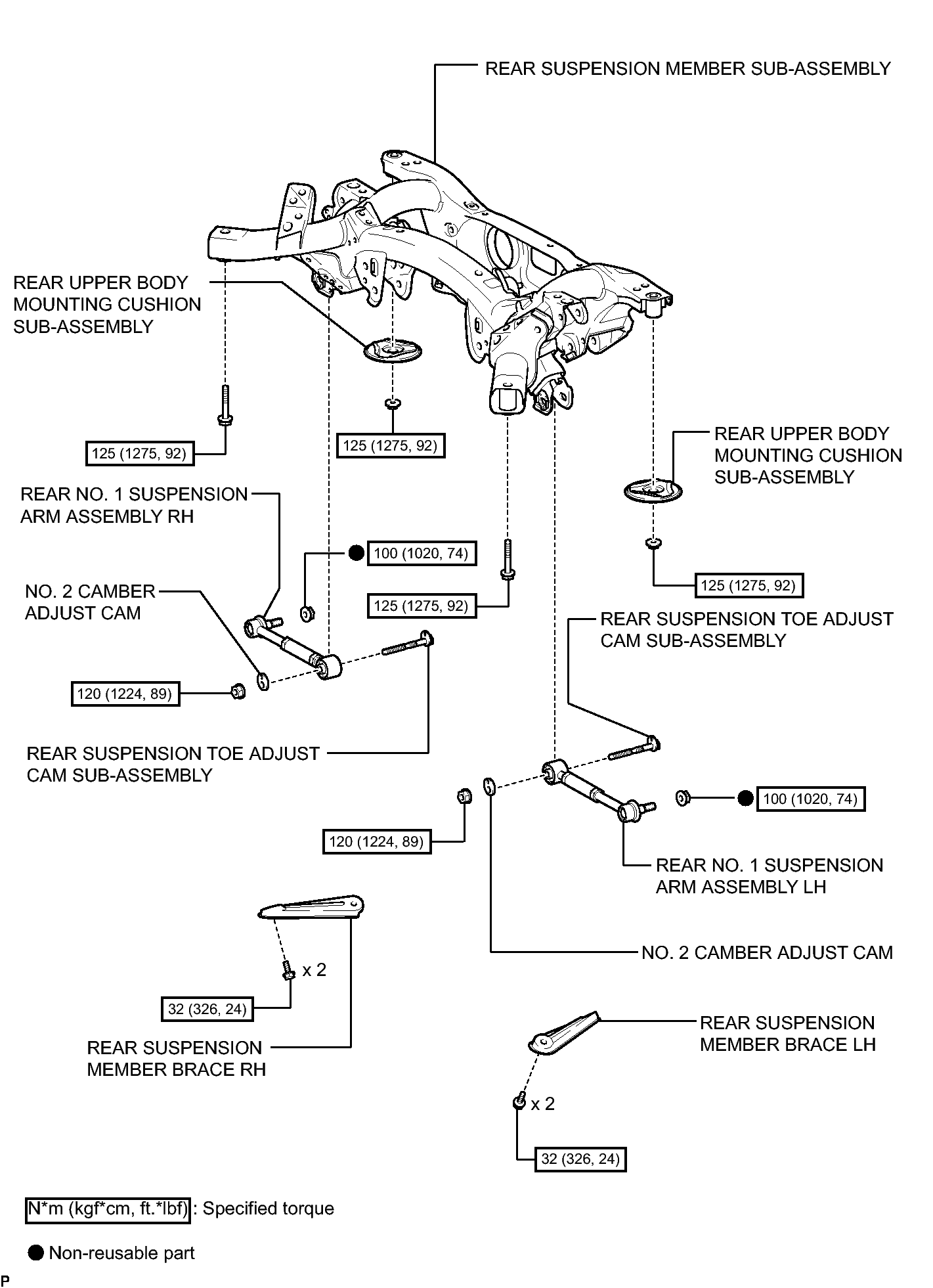

Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (5 Of 6)
GTY443123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Suspension Member Replacement Components With Torque Specifications (6 Of 6)
GTY362693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
