Removal [09/2013 - ]

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR SHOCK ABSORBER ASSEMBLY LH
   1. Support the rear No. 2 suspension arm with a jack using a wooden block to avoid damage.

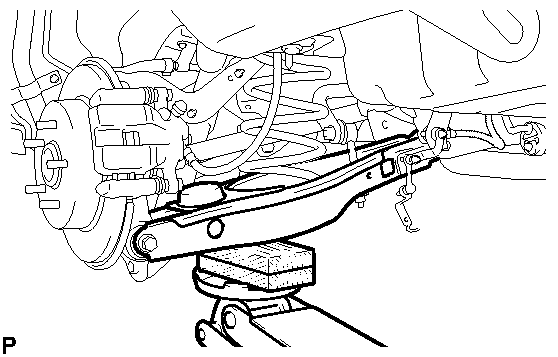

      Fig 1: View Of Supporting No. 2 Suspension Arm LH With Jack

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not excessively jack up the rear No. 2 suspension arm assembly LH.

      HINT:

      Support the rear shock absorber at a position where it compresses by approximately 20 to 30 mm (0.787 to 1.181 in.).

   2. Remove the 2 bolts and disconnect the shock absorber together with the rear No. 1 shock absorber bracket.

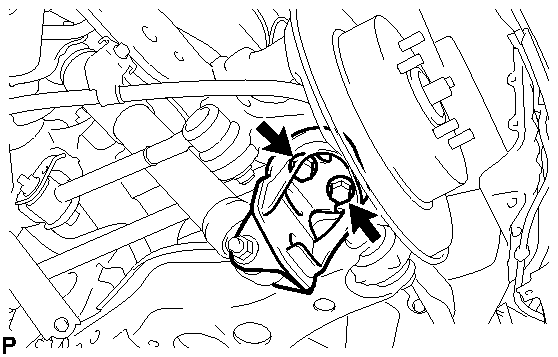

      Fig 2: Locating Rear Shock Absorber Assembly LH Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the nut and bolt from the shock absorber upper side.

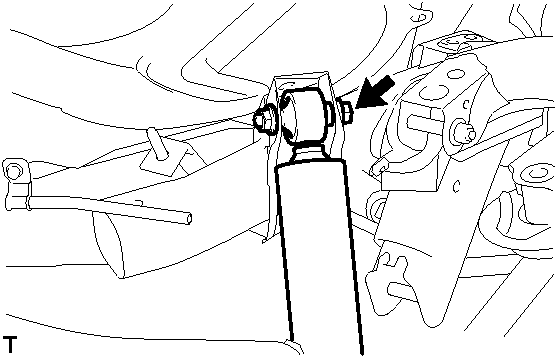

      Fig 3: Locating Shock Absorber Upper Side Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the shock absorber from the vehicle.
3. REMOVE REAR NO. 1 SHOCK ABSORBER BRACKET LH
   1. Remove the nut and bolt from the bracket.

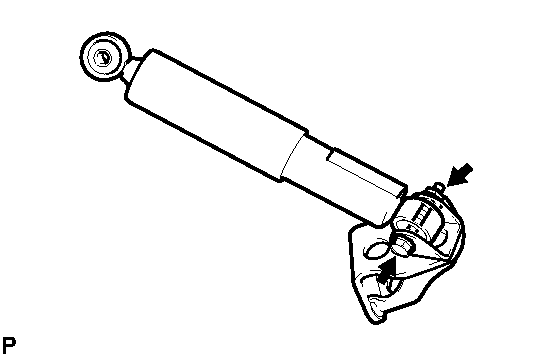

      Fig 4: Identifying Rear No. 1 Shock Absorber Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
