DTC THC_d0005: Battery Coolant Pump 1 Malfunction; DTC THC_d0006: Battery Coolant Pump 2 Malfunction [09/2013 - ]: Wiring Diagram

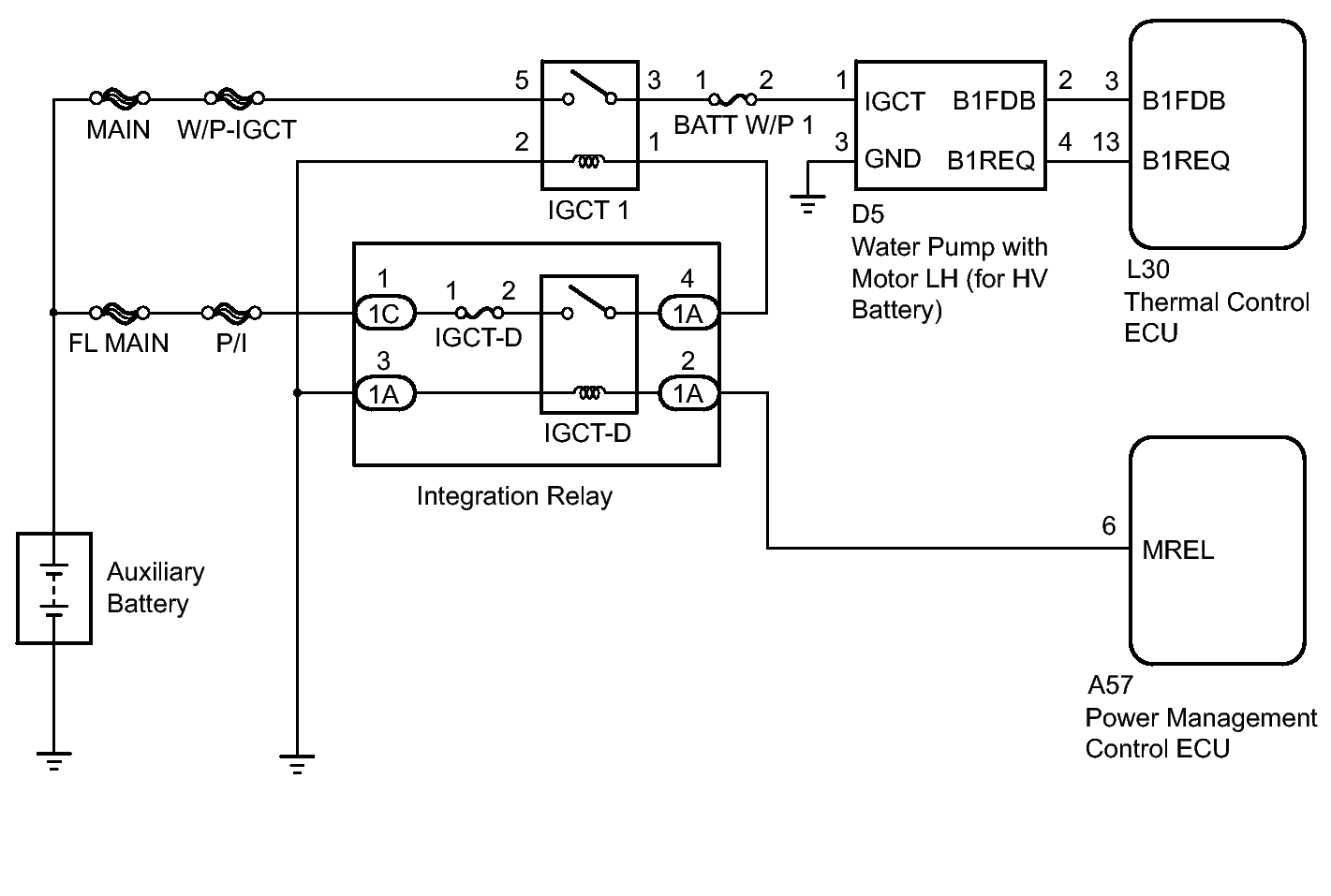

Fig 1: Power Management Control ECU Circuit Diagram (1 Of 2)
GTY440955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Management Control ECU Circuit Diagram (2 Of 2)
GTY440954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
