DTC P31CE-353: Contactor Cut OFF Relay Stuck ON [09/2013 - ]: Wiring Diagram

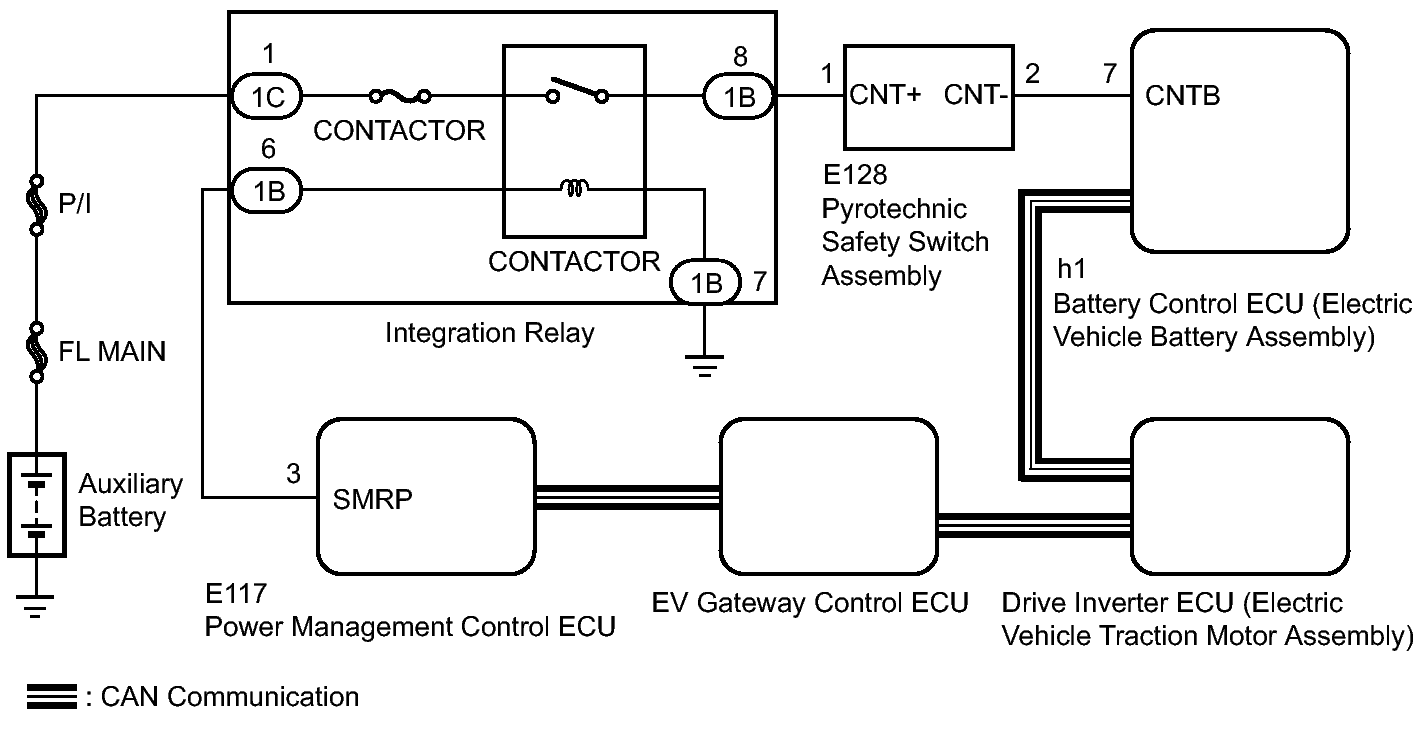

Fig 1: EV Gateway Control ECU Wiring Diagram

GTY430257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
