Components [09/2013 - ]: Illustration

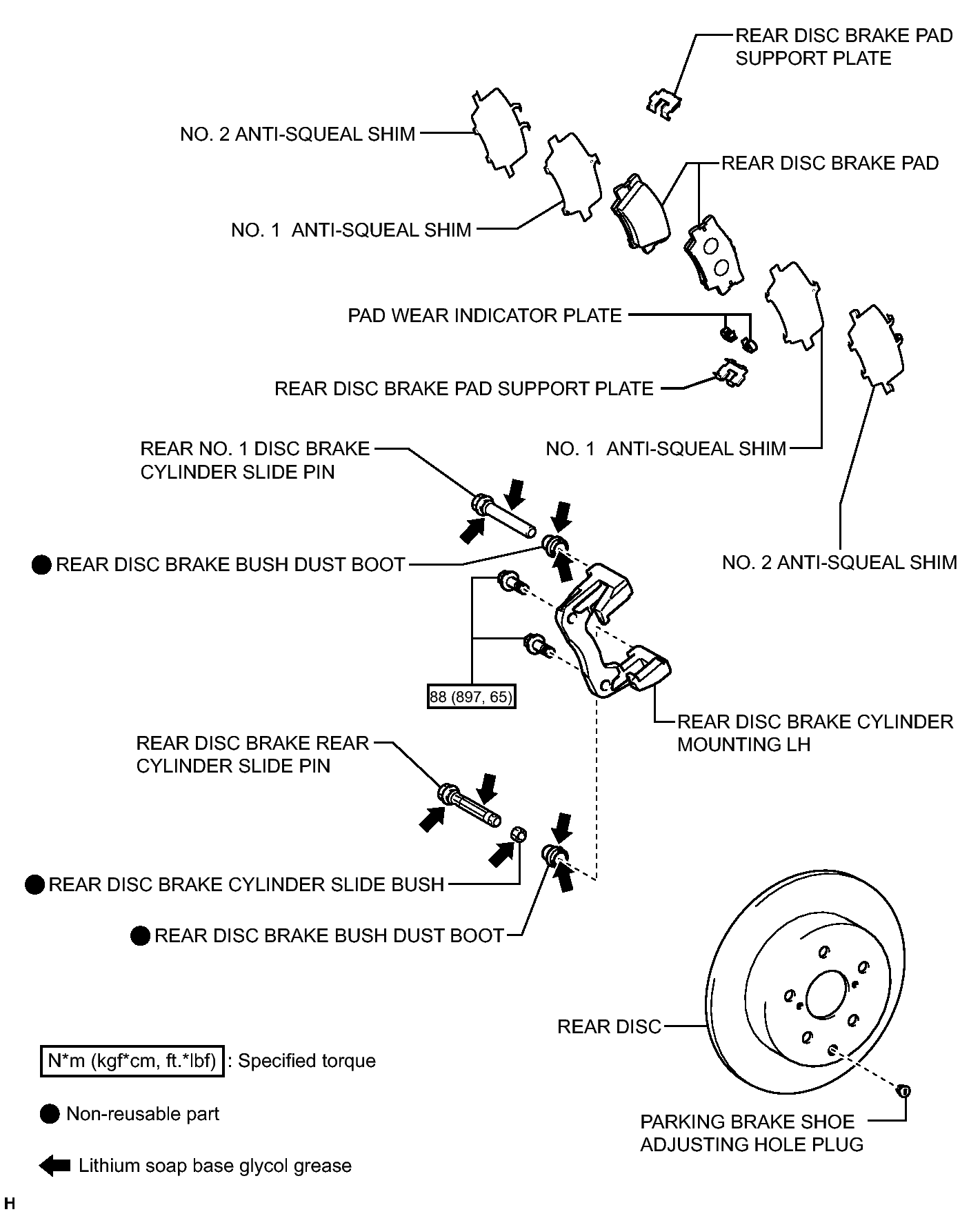

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 2)
GTY382084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

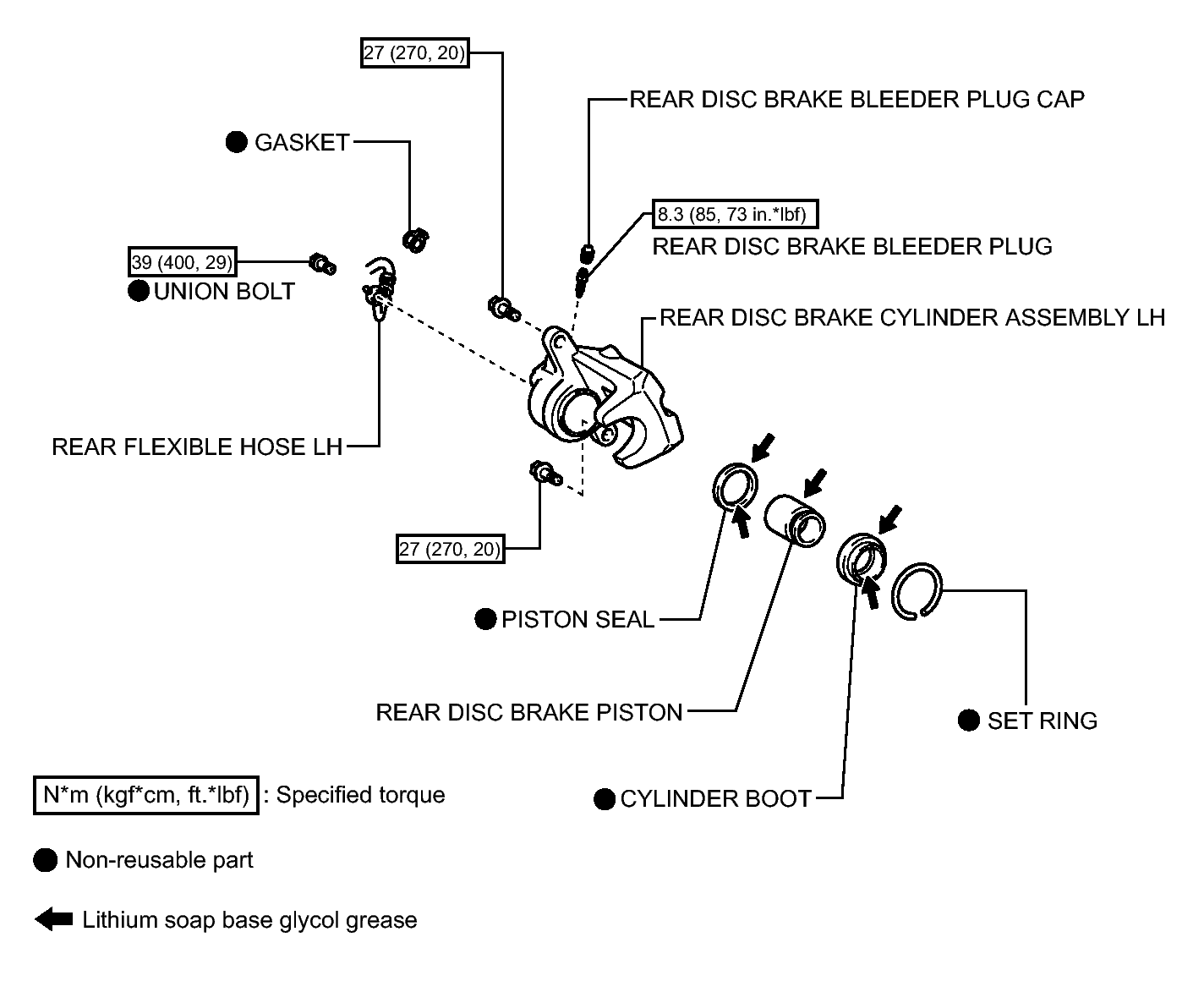

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 Of 2)
GTY375526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
