Components [09/2013 - ]: Illustration

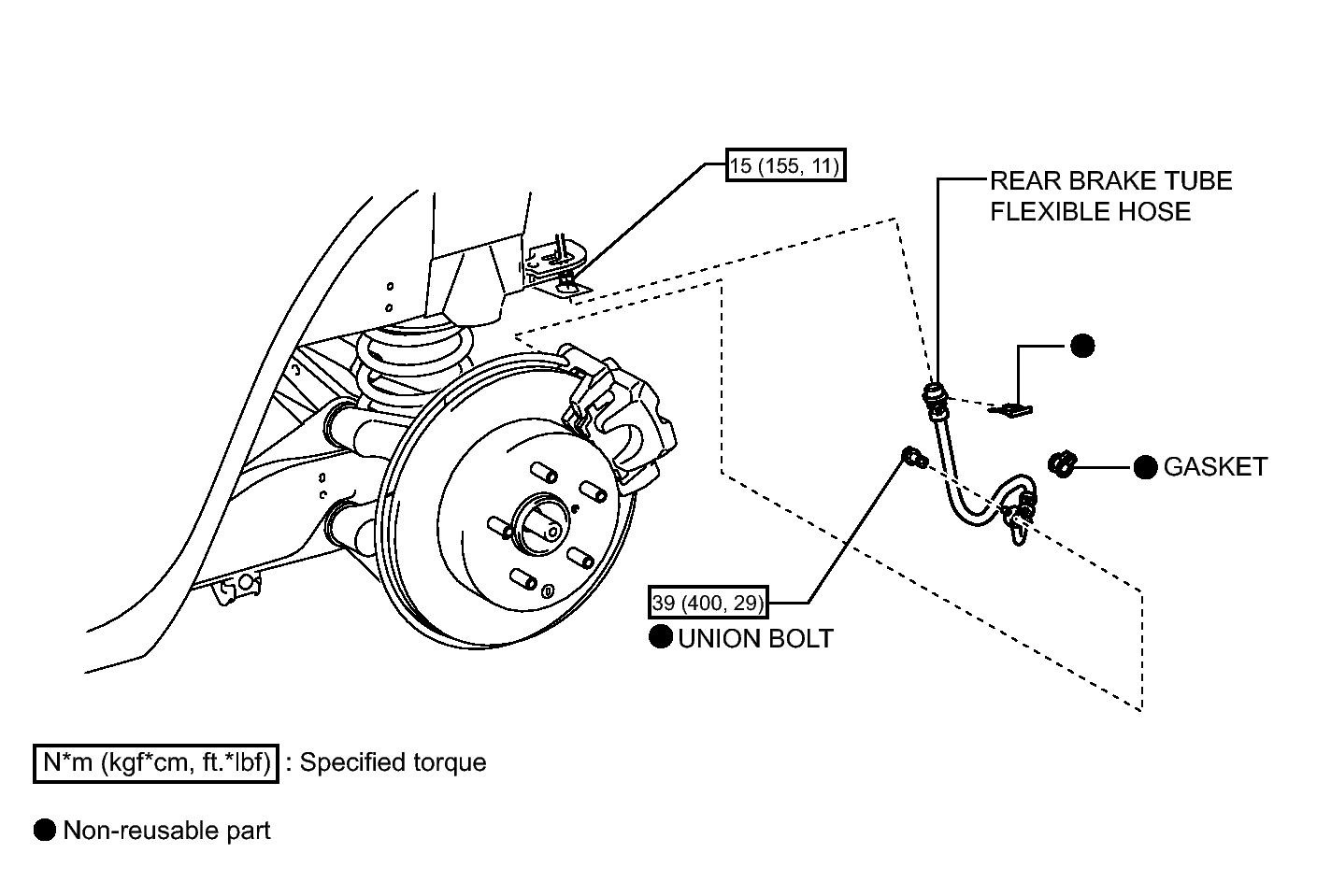

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications

GTY364073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
