Adjustment [09/2013 - ]

HINT:

• Centering bolts are used to mount the hood hinge to the vehicle body and hood. The hood cannot be adjusted with the centering bolts on. Substitute the centering bolts for standard bolts (with washers) when making adjustments.

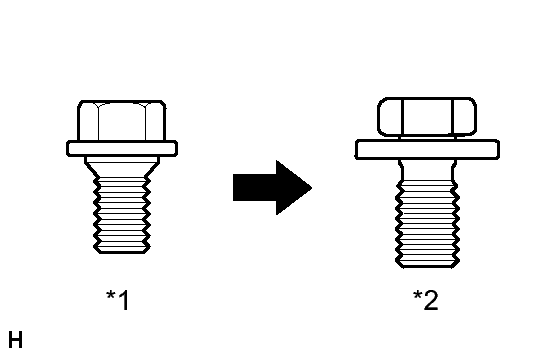

  Fig 1: Identifying Centering And Standard Bolts

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS [09/2013 - ] .

1. REMOVE RADIATOR SUPPORT OPENING COVER  . Refer to REMOVAL [09/2013 - ] - Step 1
2. ADJUST HOOD SUB-ASSEMBLY
   1. Adjust the hood position.

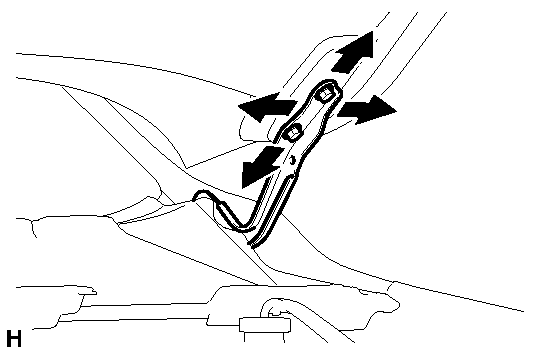

      Fig 1: Adjusting Hood Position

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 4 hinge bolts on the hood and adjust the hood position.
      2. Move the hood and adjust the clearance between the hood and front fender.
      3. Tighten the 4 hinge bolts on the hood after the adjustment.

         Torque: 13 N*m (133 kgf*cm, 9.6 ft.*lbf)

   2. Adjust the cushion rubbers so that the hood and fender are aligned.

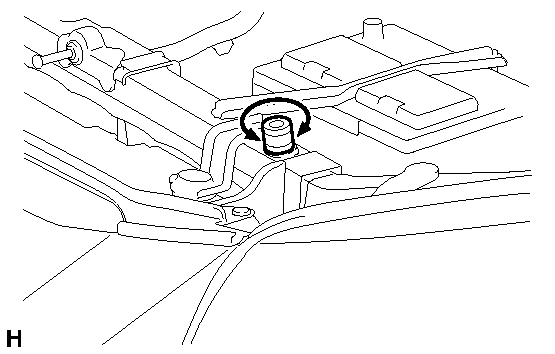

      Fig 2: Adjusting Cushion Rubbers

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Raise or lower the front end of the hood by turning the cushion rubber.

   3. Adjust the hood lock.

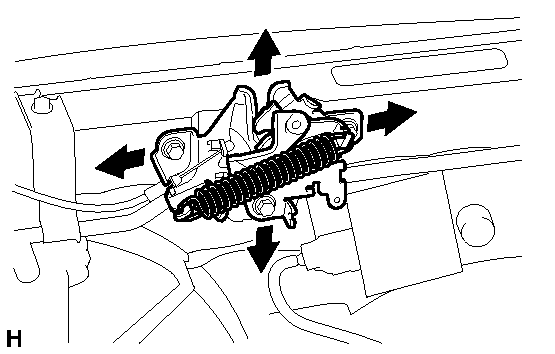

      Fig 3: Adjusting Hood Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 3 bolts.
      2. Adjust the hood lock position so that the striker can enter it smoothly.
      3. Tighten the 3 bolts after the adjustment.

         Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. INSTALL RADIATOR SUPPORT OPENING COVER  . Refer to INSTALLATION [09/2013 - ] - Step 12
