Front Passenger Side Seat Heater does not Operate [09/2013 - ]: Wiring Diagram

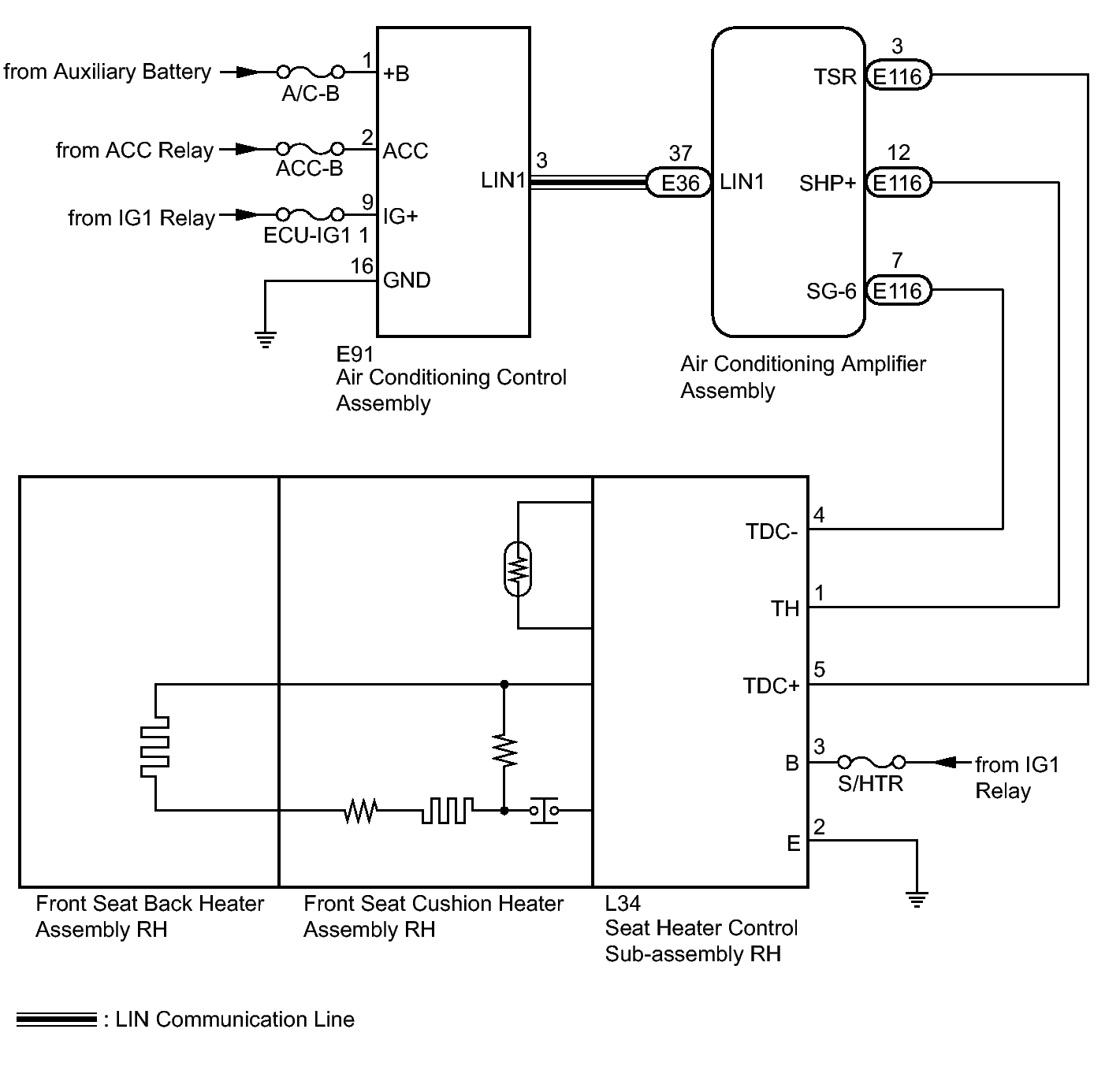

Fig 1: Front Passenger Side Seat Heater Wiring Diagram

GTY430667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
