Taillight Relay Circuit [09/2013 - ]: Wiring Diagram

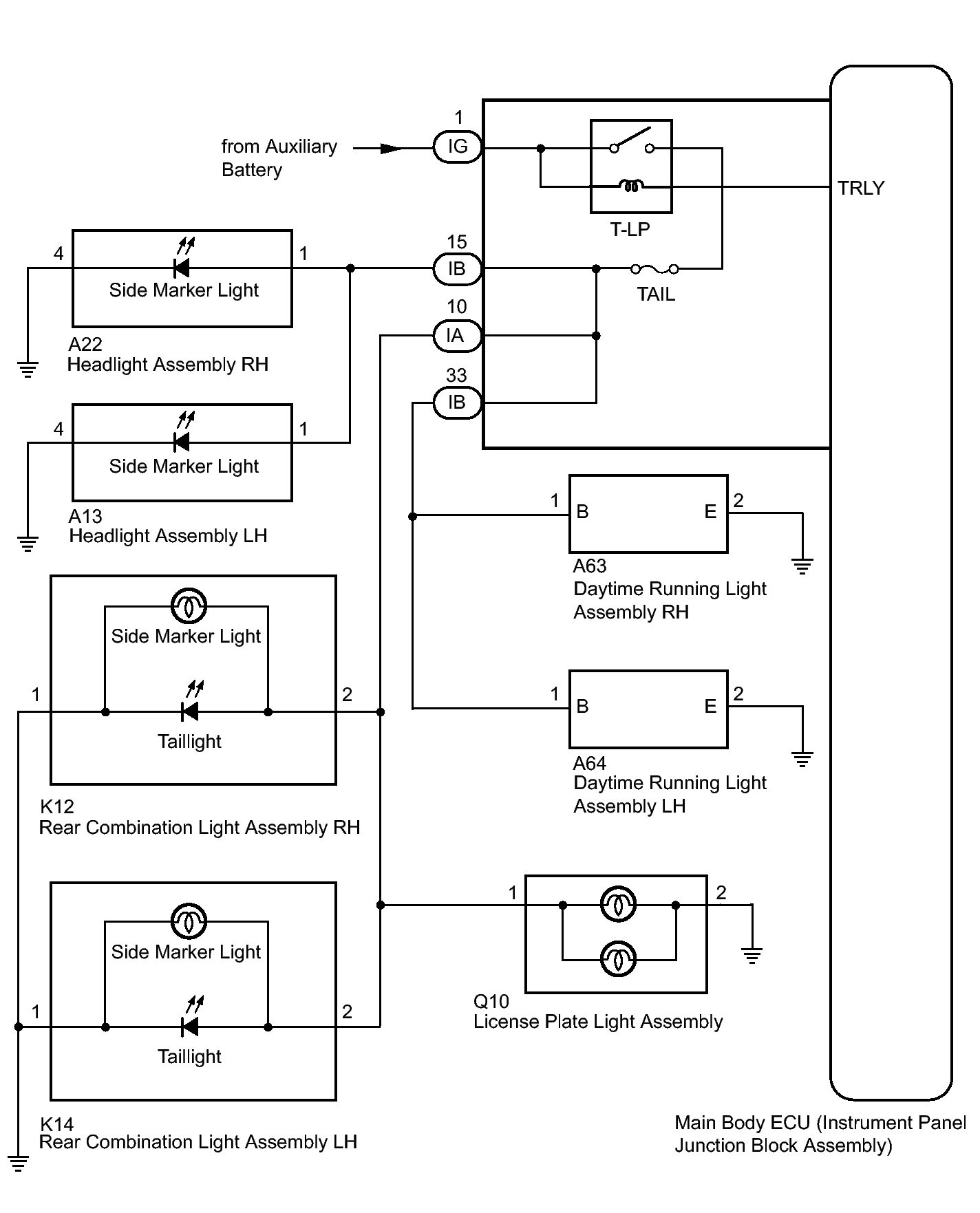

Fig 1: Taillight Relay Circuit Diagram

GTY371729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
